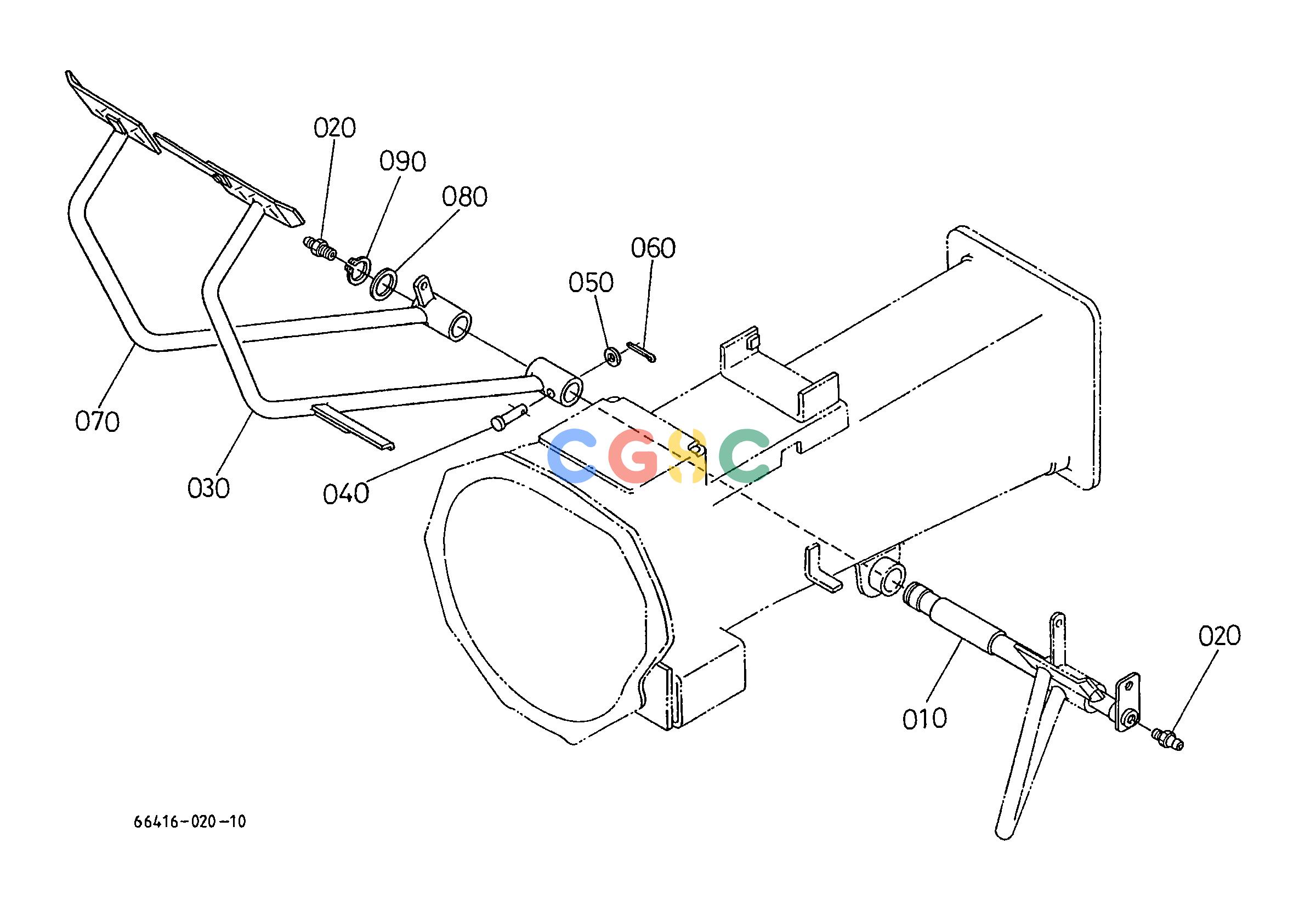

久保田零件查询T07200 BRAKE PEDAL BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6721142913
|
[1] |
SHAFT BRAKE PEDAL
|
2.9040(lbs); 1.320
|
| 020. |
0661310010
|
[2] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 030. |
6641642920
|
[1] |
PEDAL BRAKE LH
|
3.7400(lbs); 1.700
|
| 040. |
0511250840
|
[1] |
PIN JOINT
|
0.0374(lbs); 0.017
|
| 050. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
6641642930
|
[1] |
PEDAL BRAKE RH
|
3.8280(lbs); 1.740
|
| 080. |
6659143233
|
[1] |
COLLAR
|
0.0088(lbs); 0.004
|
| 090. |
0461200240
|
[1] |
CIRCLIP EXTERNAL
|
0.0044(lbs); 0.002
|
