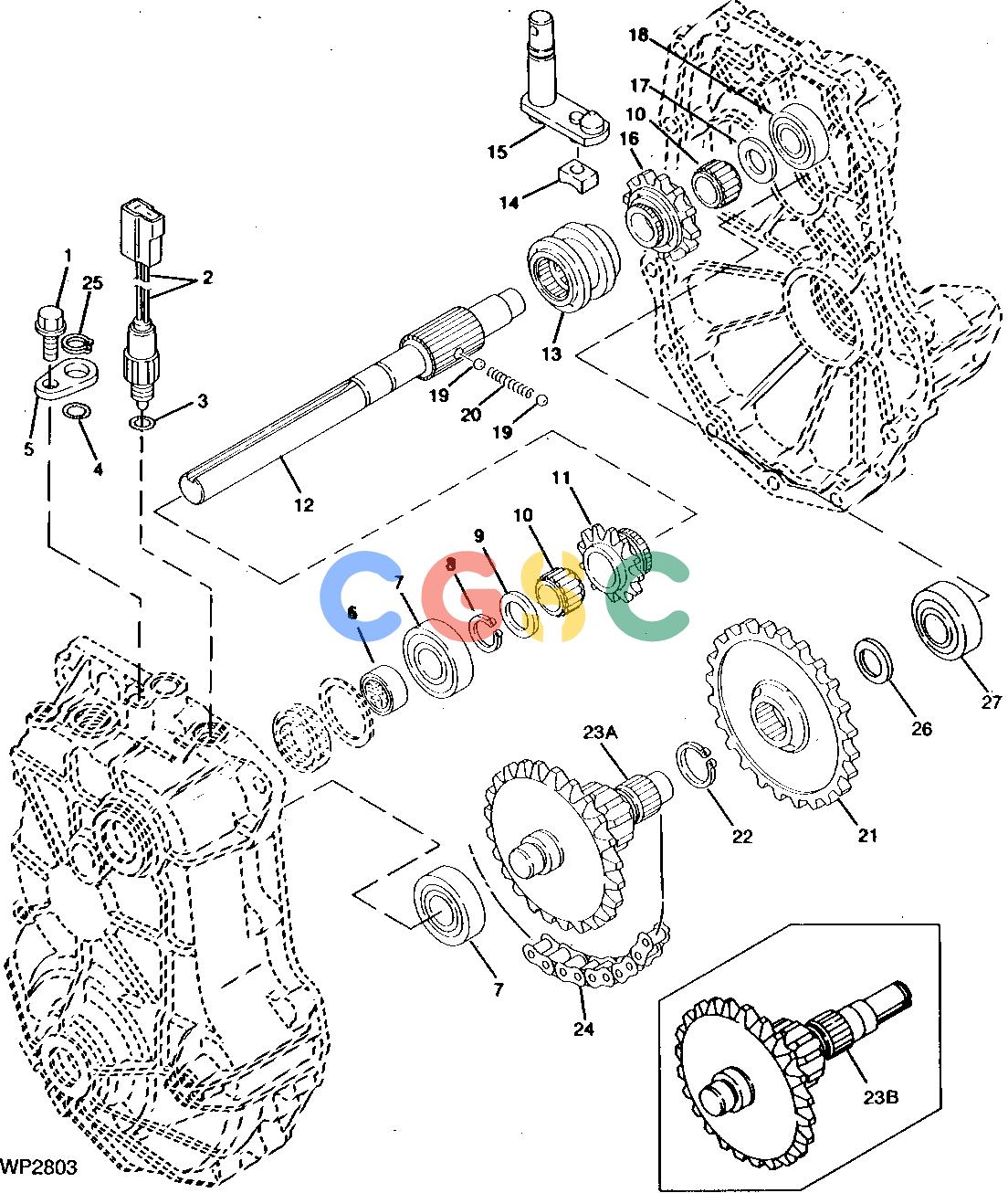

Pos.	Part No	Qty	Parts name	Comments
1.	R91144	[1]	Screw
2.	AM877735	[1]	Switch	(SUB FOR RE28083)
3.	CH14926	[1]	PACKING
4.	CH14926	[1]	PACKING
5.	R91143	[1]	Plate
6.	R92288	[1]	Sleeve
7.	CH13508	[2]	BALL BEARING
8.	40M7080	[1]	Snap Ring	(SUB FOR CH16769)
9.	M800588	[1]	Washer
10.	R91138	[2]	NEEDLE BEARING
11.	W39685	[1]	Gear	Z=11
12.	R91132	[1]	Shaft
13.	R91135	[1]	Bracket
14.	M800565	[1]	SHIFT COLLAR
15.	W39726	[1]	Bracket
16.	W39684	[1]	Gear	Z=21
17.	M800593	[1]	Washer
18.	M800496	[1]	BALL BEARING	(SUB FOR CH14829)
19.	400R	[2]	Ball	(SUB FOR CH14955)
20.	R91136	[1]	Spring
21.	R91140	[1]	Gear	Z=49
21.	ET15505	[1]	Gear	(A) Z=49
22.	R91141	[1]	Ring
22.	CH13488	[1]	Snap Ring	(A)
23A.	R91139	[1]	Shaft	Z=27
23B.	AET10279	[1]	Shaft	(A)
24.	RE30527	[1]	LINK CHAIN
25.	CH15441	[1]	RETAINER
26.	24H1439	[1]	Washer	(A) 1" X 1-3/8" X 0.060", (SUB FOR ET15506)
27.	CH13508	[1]	BALL BEARING
27.	CH14828	[1]	BALL BEARING	(A)
...	AM108491	[1]	TRANSMISSION	ASSY, (SUB FOR AW26680)
...	AM108335	[1]	TRANSMISSION	(A) ASSY
