约翰迪尔零件查询622 - AMT DIFFERENTIAL GEAR, AXLE SHAFT AND LOCK ASSEMBLY ENGRENAGE DE DIFFERENTIEL, ENSEMBLE D'ARBRE ET DE VEEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 766 次

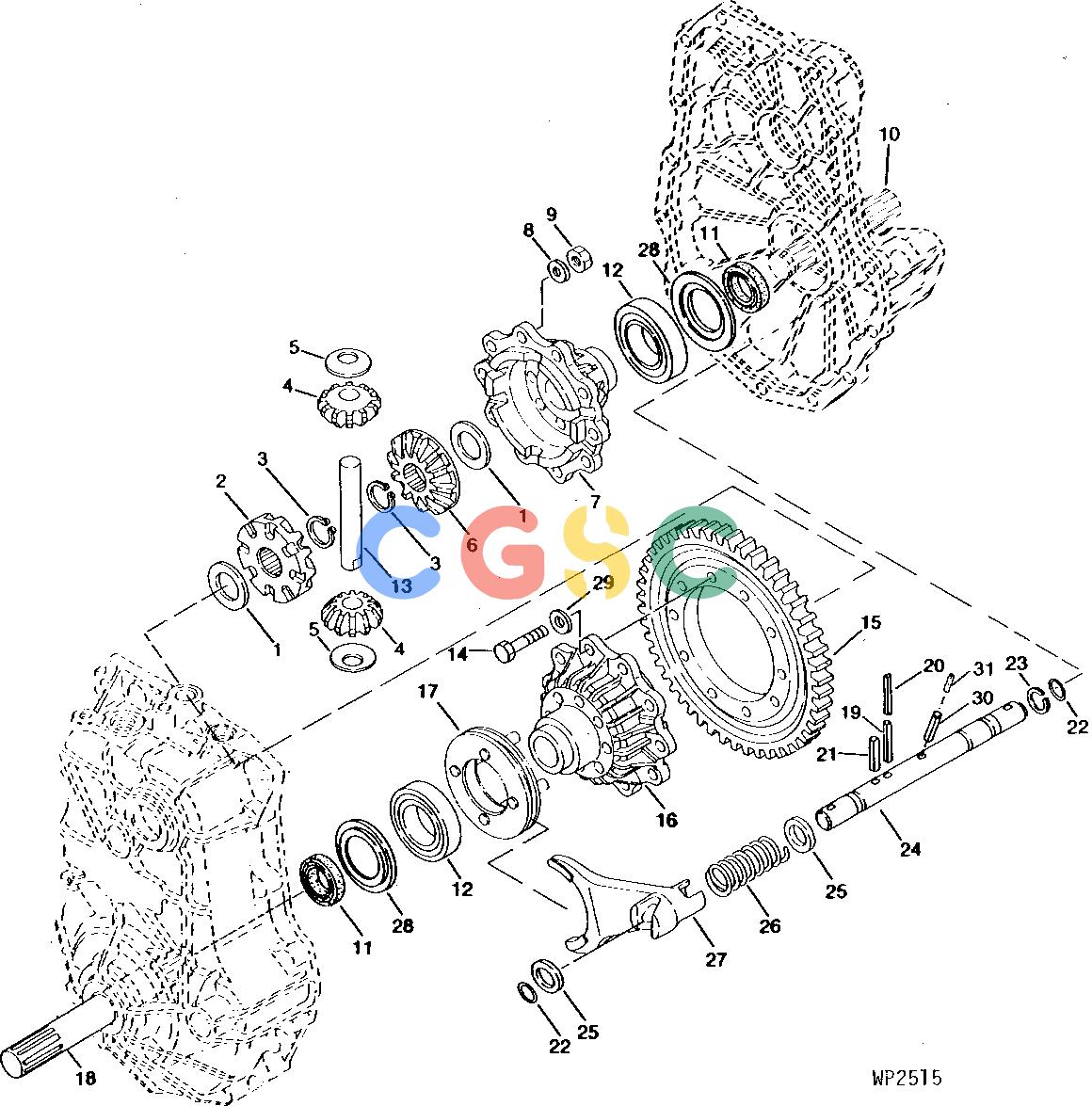

Pos.	Part No	Qty	Parts name	Comments
1.	R91149	[2]	Washer
2.	W40357	[1]	Gear
2.	M805273	[1]	Gear
3.	40M7076	[2]	Snap Ring	(SUB FOR CH13486)
4.	R91272	[2]	Pin
5.	M800576	[2]	Washer
6.	R91147	[1]	Gear
7.	R92289	[1]	Cover	R.H.
8.	24M7095	[10]	Washer	8.400 X 15 X 1.600 MM
9.	14M7273	[10]	NUT	M8
10.	R91158	[1]	Axle	R.H.
11.	R91130	[2]	SEAL
12.	CH13506	[2]	BALL BEARING
13.	M805274	[1]	PINION SHAFT	(ALSO ORDER M805273, M805275 AND M805276) (SUB FOR R91148)
14.	19M7378	[10]	CAP SCREW	M8 X 45
15.	R91145	[1]	Gear	Z=55
16.	M805275	[1]	Case	L.H. (ALSO ORDER M805273, M805274, M805276) (SUB FOR W40358)
17.	M805276	[1]	DIFFERENTIAL LOCK	(ALSO ORDER M805273, M805274 AND M805275) (SUB FOR R91152)
18.	R91157	[1]	Pin	L.H.
19.	34M7047	[1]	SPRING PIN	8 X 40 MM, (SUB FOR CH15027)
20.	34M7035	[1]	SPRING PIN	5 X 40 MM, (SUB FOR CH12301)
21.	CH13851	[1]	Pin Fastener
22.	CH10570	[2]	O-Ring
23.	M800606	[1]	Ring
24.	M805277	[1]	Shaft	(ALSO ORDER CH10891 AND CH12304) (SUB FOR W40172)
25.	CH15024	[2]	Washer
26.	R91156	[1]	Spring
27.	R92291	[1]	Fork
28.	R92211	[2]	THRUST WASHER
29.	24M7095	[10]	Washer	8.400 X 15 X 1.600 MM
30.	CH13851	[1]	Pin Fastener
30.	CH12301	[1]	Pin
31.	CH10891	[1]	Pin
...	AM108491	[1]	TRANSMISSION	ASSY, (SUB FOR AW26680)
...	AM108335	[1]	TRANSMISSION	(A) ASSY
