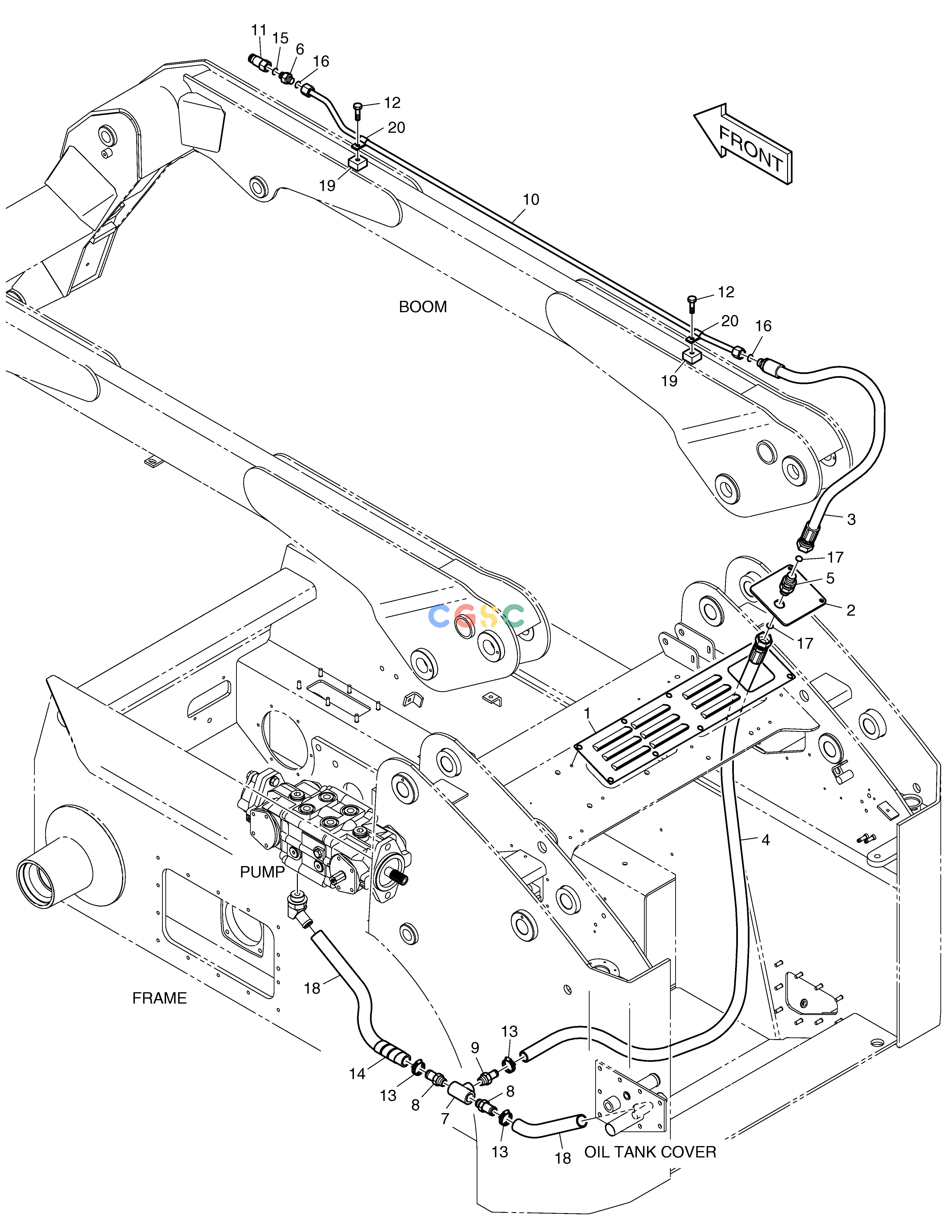

斗山零件查询ATTACH RETURN PIPING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023348
|
[-] |
ATTACH RETURN PIPING
|
|
| 1. |
K1020934
|
[1] |
PLATE
|
|
| 10. |
K1020938
|
[1] |
TUBE
|
|
| 11. |
K1020073
|
[1] |
COUPLER
|
|
| 12. |
S0509263
|
[2] |
BOLT
|
|
| 13. |
S8450023
|
[3] |
CLAMP
|
|
| 14. |
K1022550
|
[118] |
PROTECTOR;HOSE
|
|
| 15. |
S8040101
|
[1] |
O-RING
|
|
| 16. |
S8030081
|
[2] |
O-RING
|
|
| 17. |
S8030101
|
[2] |
O-RING
|
|
| 18. |
K1022543
|
[116] |
HOSE;BULK
|
|
| 19. |
K1020209
|
[2] |
BLOCK
|
|
| 2. |
K1021881
|
[1] |
PLATE
|
|
| 20. |
K1020101
|
[2] |
CLIP
|
|
| 3. |
K1020955
|
[1] |
HOSE
|
|
| 4. |
DS2019005
|
[1] |
HOSE
|
|
| 5. |
K1020458
|
[1] |
ADAPTER
|
|
| 6. |
K1020463
|
[1] |
ADAPTER
|
|
| 7. |
K1020084
|
[1] |
TEE
|
|
| 8. |
K1020103
|
[2] |
ADAPTER
|
|
| 9. |
K1020102
|
[1] |
ADAPTER
|
|
