| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

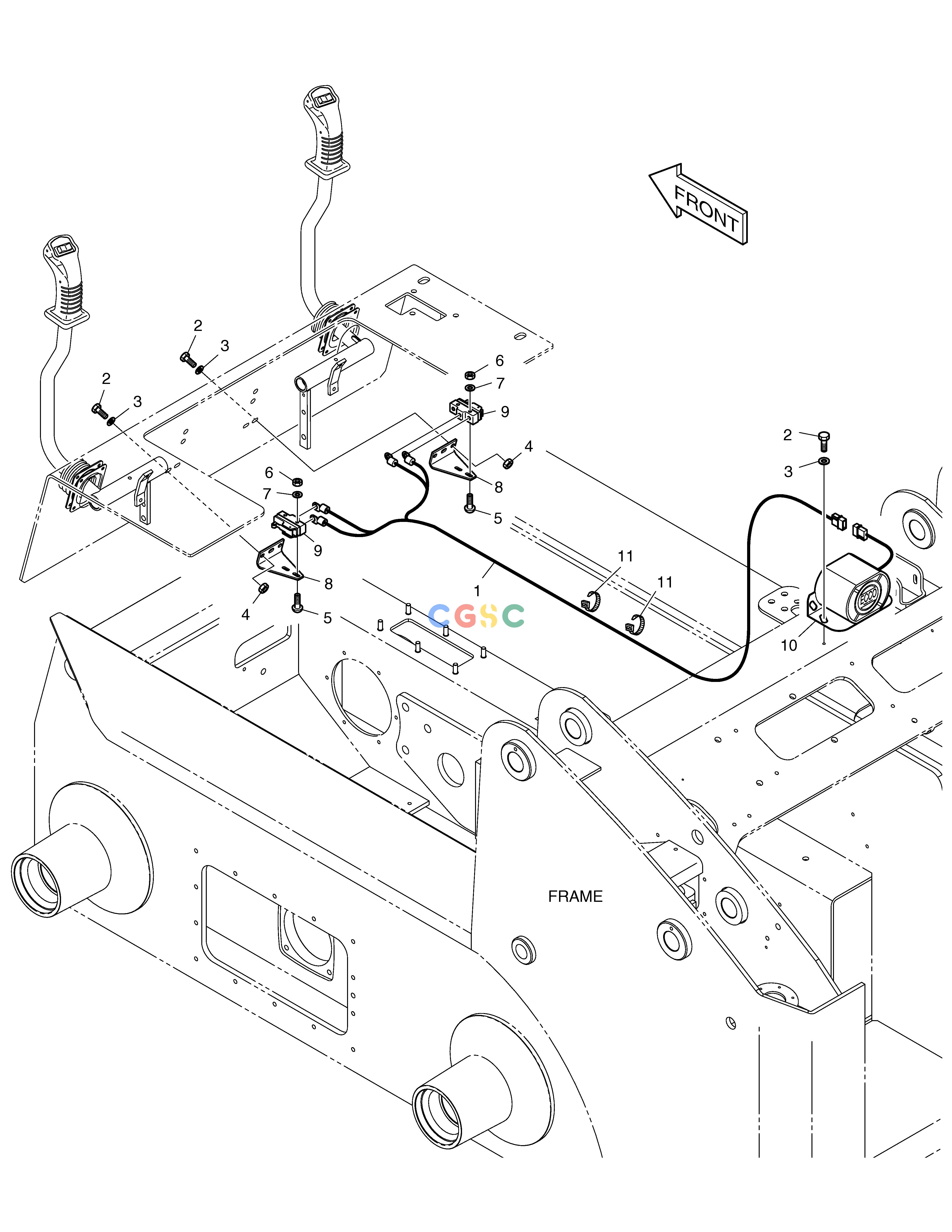

| -. | K1023401 | [-] | BACKUP ALARM ASS'Y | |
| 1. | K1020768 | [1] | HARNESS;BACKUP | |
| 10. | K1023019 | [1] | ALARM;SMART | |
| 11. | K1022971 | [2] | CLIP;BAND | |
| 2. | S0504663 | [6] | BOLT | |
| 3. | DS0401171 | [6] | WASHER;HARDENED | |
| 4. | S4016333 | [4] | NUT | |
| 5. | S3450403 | [4] | SCREW | |
| 6. | S4010033 | [4] | NUT | |
| 7. | S5000003 | [4] | WASHER;PLAIN M3 | |
| 8. | K1019897 | [2] | BRACKET | |
| 9. | K1023015 | [2] | SWITCH;LIMIT |
