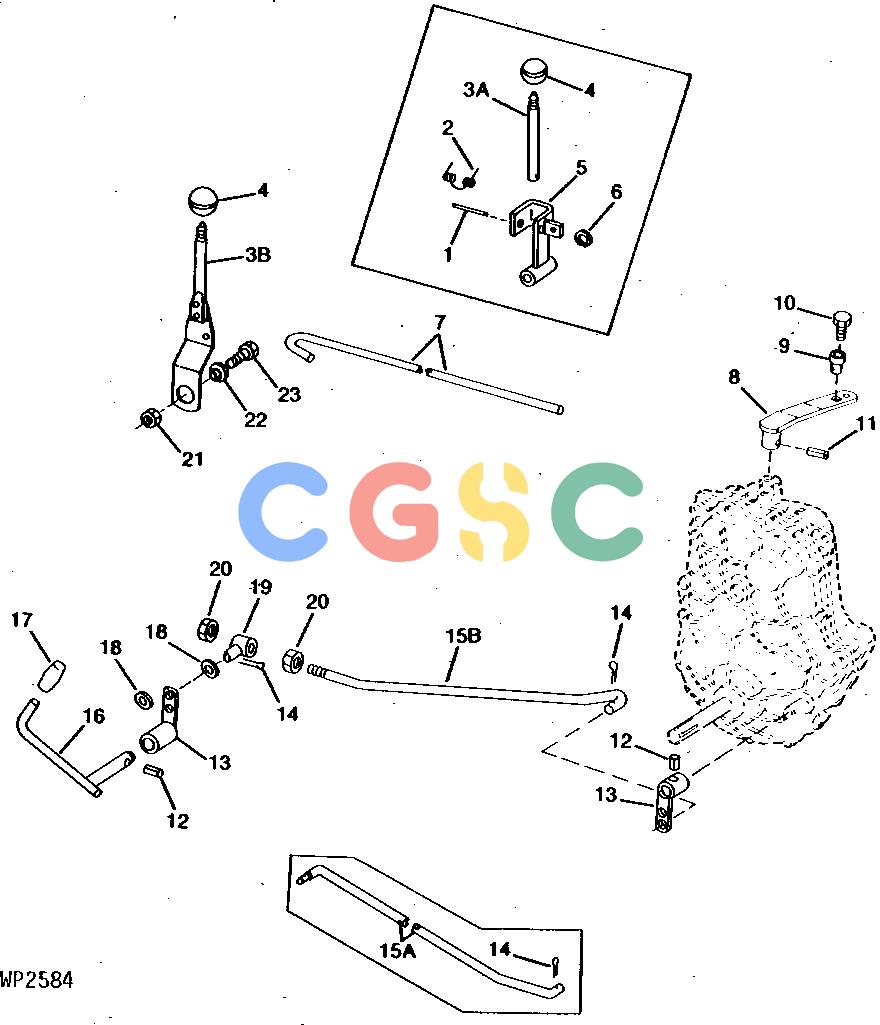

Pos.	Part No	Qty	Parts name	Comments
1.	34M7214	[1]	SPRING PIN	5 X 35 MM
1.	34M7214	[1]	SPRING PIN	5 X 35 MM
2.	F2823R	[1]	Spring
2.	F2823R	[1]	Spring
3A.	W39956	[1]	Stud	(SUB AM108533, M73636, 14M7167 AND 19M7167)
3B.	AM108533	[1]	Lever	(ALSO ORDER M73636, 14M7167 AND 19M7167) (SUB FOR W39956)
4.	AL58296	[1]	Knob	(SUB FOR R50864)
5.	AW26600	[1]	Bracket	(SUB AM108533, M73636, 14M7167 AND 19M7167)
5.	AW26600	[1]	Bracket	(SUB AM108533, M73636, 14M7167 AND 19M7167)
6.	R30437	[1]	Snap Ring
6.	R30437	[1]	Snap Ring
7.	W39958	[1]	Linkage
8.	AW26976	[1]	Lever	(SUB FOR AW26696)
9.	W39957	[1]	Bushing
10.	19M8425	[1]	CAP SCREW	M6 X 16 (HS, HEAD MARKED 10.9)
11.	34H314	[1]	SPRING PIN	1/4" X 1-1/4"
12.	34H331	[2]	SPRING PIN	5/16" X 1-1/2"
13.	AW27184	[2]	Arm	(SUB FOR AW26788)
14.	11M7059	[2]	Cotter Pin	3.200 X 20 MM
15A.	W40253	[1]	Linkage	(SUB M94510, W40956, 11M7080, (2) 14H732)
15B.	W40956	[1]	Linkage	(ALSO ORDER M94510, 11M7080 AND (2) 14H732)
16.	AW26754	[1]	PEDAL
16.	AM108587	[1]	PEDAL
17.	M85495	[1]	Knob
18.	24M7055	[2]	Washer	8.400 X 16 X 1.600 MM
19.	M94510	[1]	Pin Fastener	(SUB FOR M92653)
19.	M94510	[1]	Pin Fastener
20.	14H732	[2]	NUT	3/8"
20.	14H732	[2]	NUT	3/8"
21.	14M7167	[1]	LOCK NUT	M10
22.	M73636	[1]	Washer
23.	19M7167	[1]	CAP SCREW	M10 X 25
