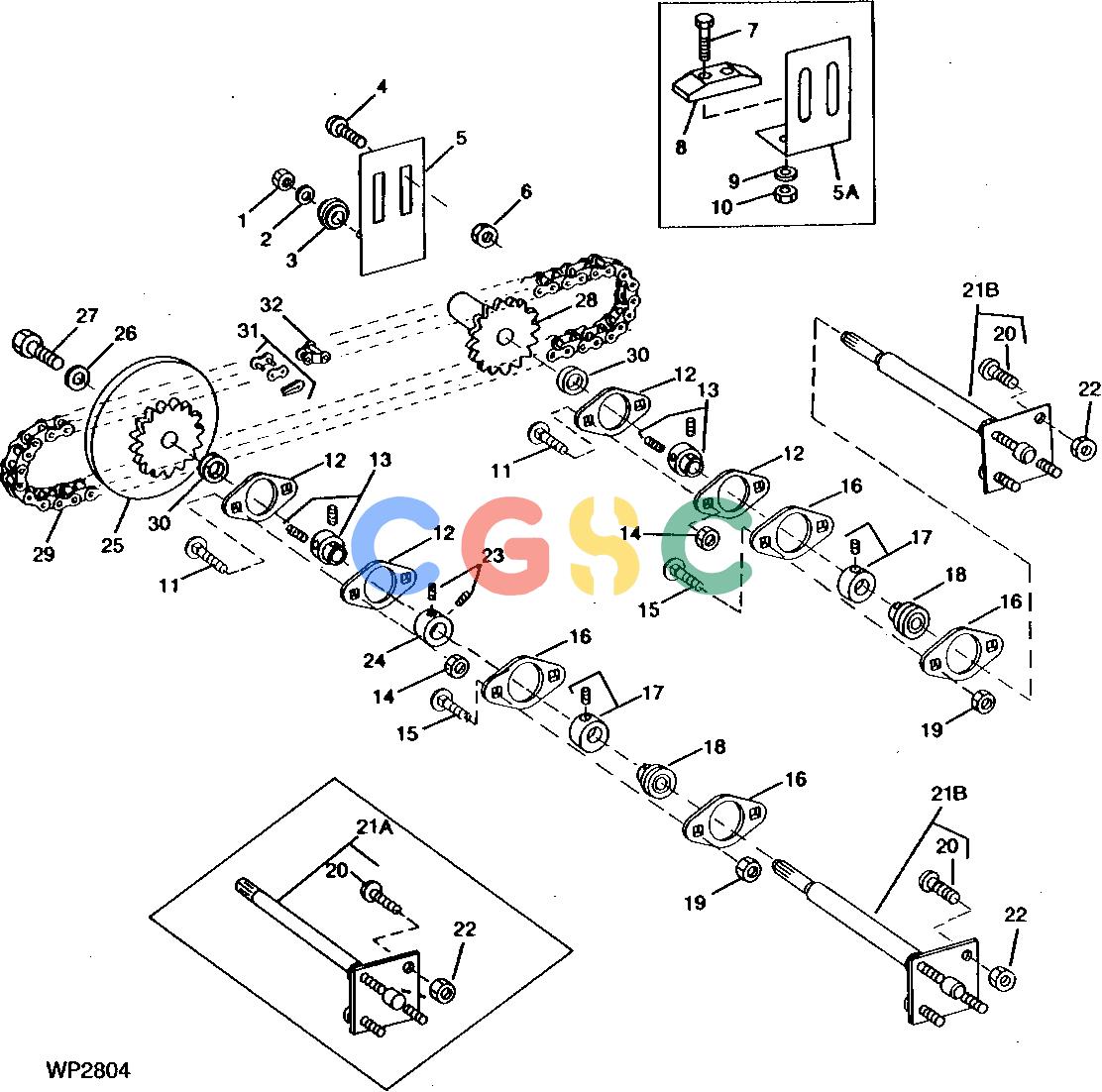

约翰迪尔零件查询622 - AMT DRIVE SPROCKETS, CHAIN AND AXLES PIGNONS D'ENTRAINEMENT, CHAINE ET ESSIEUX ANTRIEBSKETTENRAEDER, ANTEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
934 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7167
|
[2] |
LOCK NUT
|
|
| 1. |
14M7167
|
[2] |
LOCK NUT
|
|
| 2. |
24M7178
|
[2] |
Washer
|
|
| 2. |
24M7178
|
[2] |
Washer
|
|
| 3. |
W40951
|
[2] |
Idler
|
|
| 3. |
AN115321
|
[2] |
IDLER SPROCKET
|
|
| 3. |
W40951
|
[2] |
Idler
|
|
| 3. |
AN115321
|
[2] |
IDLER SPROCKET
|
|
| 4. |
03M7191
|
[4] |
Bolt
|
|
| 5A. |
R87622
|
[2] |
ANGLE
|
|
| 5B. |
AW27217
|
[2] |
Support
|
|
| 6. |
14M7167
|
[4] |
LOCK NUT
|
|
| 7. |
19M8146
|
[4] |
Screw
|
|
| 8. |
R87623
|
[2] |
Pad
|
|
| 9. |
24H1721
|
[4] |
Washer
|
|
| 10. |
14M7360
|
[4] |
LOCK NUT
|
|
| 11. |
03M7184
|
[8] |
Bolt
|
|
| 12. |
M66125
|
[8] |
Pressed Flanged Housing
|
|
| 13. |
JD10419
|
[4] |
BALL BEARING
|
|
| 14. |
14M7166
|
[8] |
LOCK NUT
|
|
| 15. |
03M7191
|
[8] |
Bolt
|
|
| 16. |
N15764
|
[8] |
Pressed Flanged Housing
|
|
| 17. |
JD8551
|
[4] |
ECCENTRIC LOCKING COLLAR
|
|
| 17. |
JD8544
|
[4] |
ECCENTRIC LOCKING COLLAR
|
|
| 17. |
JD8544
|
[4] |
ECCENTRIC LOCKING COLLAR
|
|
| 18. |
JD8552
|
[4] |
BALL BEARING
|
|
| 18. |
JD9452
|
[4] |
BALL BEARING
|
|
| 18. |
JD9452
|
[4] |
BALL BEARING
|
|
| 19. |
14M7167
|
[8] |
LOCK NUT
|
|
| 20. |
A44553
|
[16] |
Bolt
|
|
| 21A. |
AW26675
|
[4] |
Axle
|
|
| 21B. |
AM108546
|
[4] |
Axle
|
|
| 21B. |
AM108546
|
[4] |
Axle
|
|
| 22. |
A45904
|
[16] |
NUT
|
|
| 23. |
22H979
|
[4] |
SET SCREW
|
|
| 24. |
R91570
|
[2] |
Locking Collar
|
|
| 25. |
RE28816
|
[2] |
CHAIN SPROCKET
|
|
| 26. |
24H1928
|
[2] |
Washer
|
|
| 27. |
R91461
|
[2] |
CAP SCREW
|
|
| 28. |
AM108569
|
[2] |
CHAIN SPROCKET
|
|
| 29. |
RE28723
|
[2] |
ROLLER CHAIN
|
|
| 30. |
R91571
|
[4] |
Spacer
|
|
| 31. |
P20351
|
[AR] |
Chain Link
|
|
| 32. |
P20352
|
[AR] |
Chain Link
|
|
