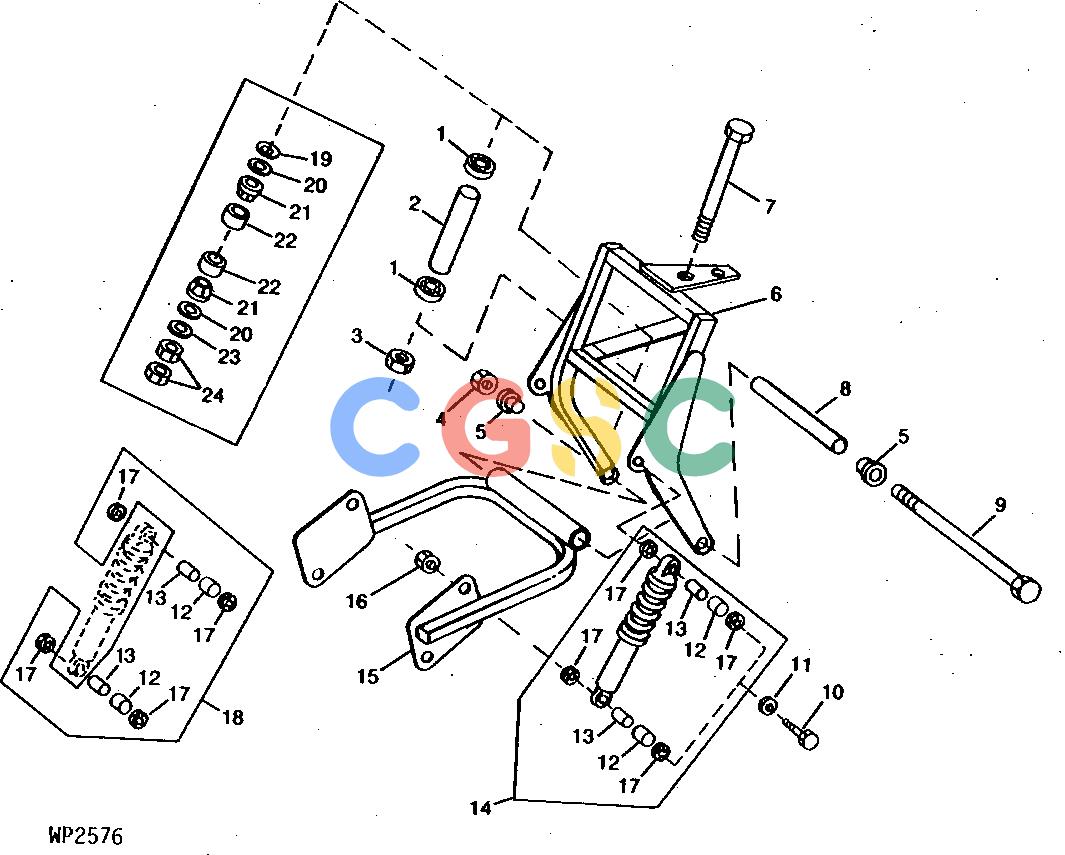

Pos.	Part No	Qty	Parts name	Comments
1.	JD9214	[2]	BALL BEARING	(B)
2.	R90791	[1]	Spacer	(B)
3.	K40015	[1]	LOCK NUT	5/8"
4.	T11234	[1]	LOCK NUT	3/8"
5.	M96375	[2]	Bushing	(SUB FOR M49685)
6.	AW26608	[1]	Fork
7.	19H3373	[1]	CAP SCREW	5/8" X 9", HS, SAE 8
8.	M96382	[1]	Spacer	(SUB FOR R88690 OR W40742)
9.	19H3459	[1]	CAP SCREW	3/8" X 13-1/2"
10.	19M7358	[4]	CAP SCREW	M10 X 40 (HS, HEAD MARKED 10.9)
11.	24H1309	[4]	Washer	13/32" X 1-1/16" X 0.120"
12.	W39682	[2]	Bushing
12.	........	[2]	Bushing	(ORDER AM108526)
12.	........	[2]	Bushing	(ORDER AM108526)
13.	W39681	[2]	Bushing
13.	........	[2]	Bushing	(ORDER AM108526)
13.	........	[2]	Bushing	(ORDER AM108526)
14.	AM108525	[2]	SHOCK ABSORBER	(A) (SUB FOR RE28724)
15.	AM108540	[1]	Yoke	(ALSO ORDER (2) M96375 AND M96382) (SUB FOR AW26926)
16.	14M7167	[4]	LOCK NUT	M10
17.	........	[4]	Washer	(ORDER AM108526)
17.	........	[4]	Washer	(ORDER AM108526)
18.	AM108526	[AR]	Absorber Kit
19.	M47959	[1]	Washer	(C)
20.	24H1139	[3]	Washer	(C) 11/16" X 1-1/4" X 0.105"
21.	M96617	[2]	BEARING CONE	(C)
22.	M96616	[2]	Bearing Cup	(C)
23.	24H1225	[3]	Shim	(C) 0.030"
24.	K40015	[2]	LOCK NUT	(C) 5/8"
...	TY15969	[1]	ADHESIVE	(C)
