约翰迪尔零件查询622 - AMT BRAKE PEDAL PEDALE DE FREIN BREMSPEDAL PEDALE DEL FRENO PEDAL DEL FRENO BROMSPEDAL [D12]EPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 180 次

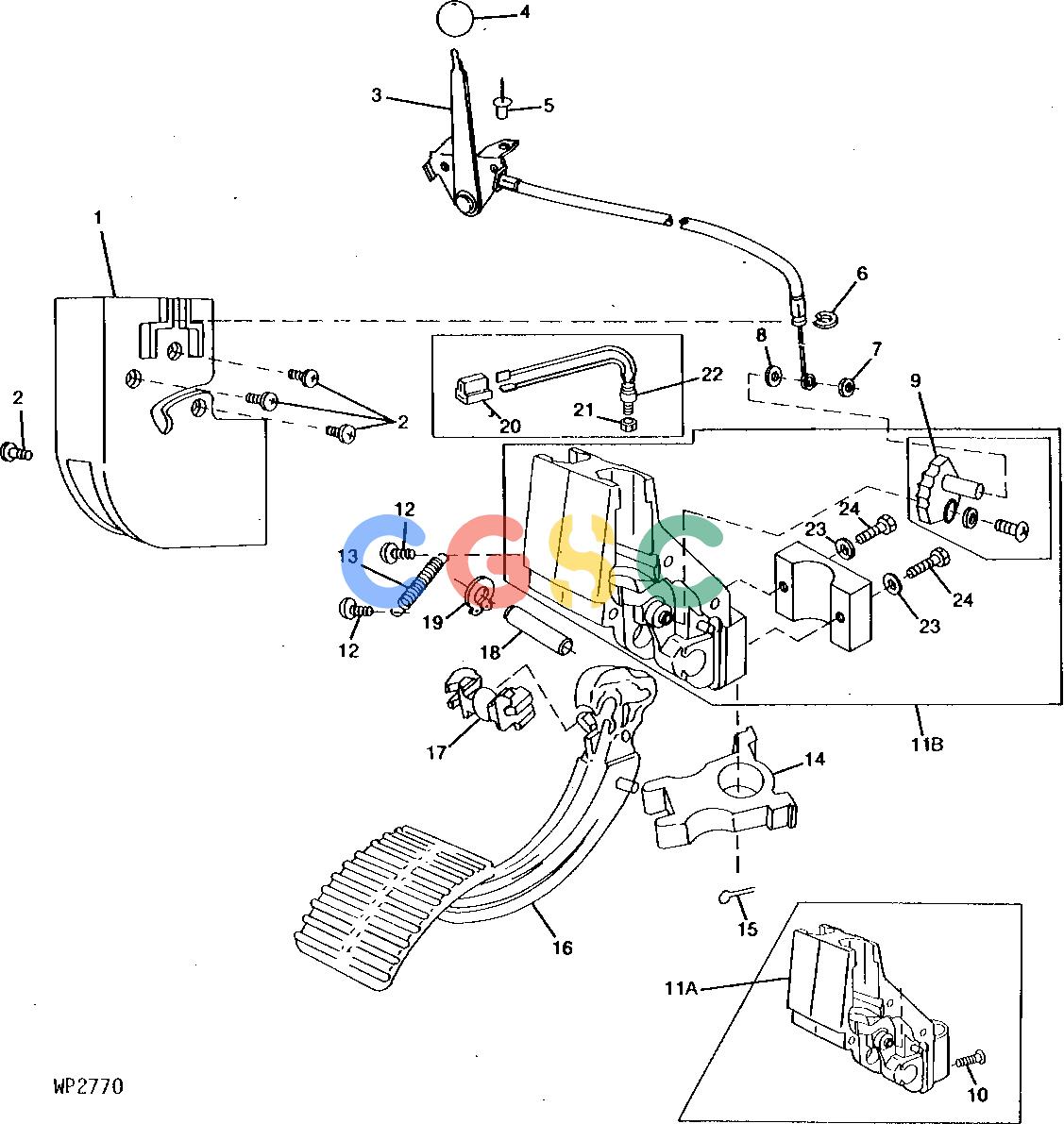

Pos.	Part No	Qty	Parts name	Comments
1.	AW26814	[1]	Cover
2.	W39787	[4]	Screw
3.	AW26761	[1]	CABLE
4.	W40510	[1]	Knob
5.	R55326	[2]	Rivet	0.188" X 0.664"
6.	W40411	[1]	Snap Ring
7.	W40515	[1]	NUT
8.	W40910	[1]	Washer
9.	AW26972	[1]	Cam
10.	21M7022	[1]	Screw	M5 X 20
11A.	AM108504	[1]	Housing	(B) (C) (SUB AM116519)
11B.	AM116519	[1]	Housing	(B) (C) (INCLUDED IN AM116524 TAIL & STOP LIGHT KIT)
12.	W41170	[2]	Screw
13.	W40409	[1]	Spring
14.	W40410	[1]	Bumper
15.	11M7017	[1]	Cotter Pin	3.200 X 32 MM
16.	AW26815	[1]	PEDAL
17.	RE32913	[1]	BALANCER
18.	R93124	[1]	Pin
19.	R93125	[2]	Snap Ring
20.	R77476	[1]	ELECTRICAL CONNECTOR ASSY	(A) (B) (C)
21.	........	[1]	NUT	NSEP
22.	AM116523	[1]	Switch	(A) (B) (SUB FOR AW26911) (ALSO ORDER AM116519)
22.	AM116523	[1]	Switch	(C) (SUB FOR AW26911) (ALSO ORDER AM116519)
22.	AM116523	[1]	Switch	(C) (SUB FOR AM108538)
23.	24M7088	[2]	Washer	6.600 X 12 X 1.600 MM, (USE WITH AM116519)
24.	19M7177	[2]	CAP SCREW	M6 X 35, (USE WITH AM116519)
