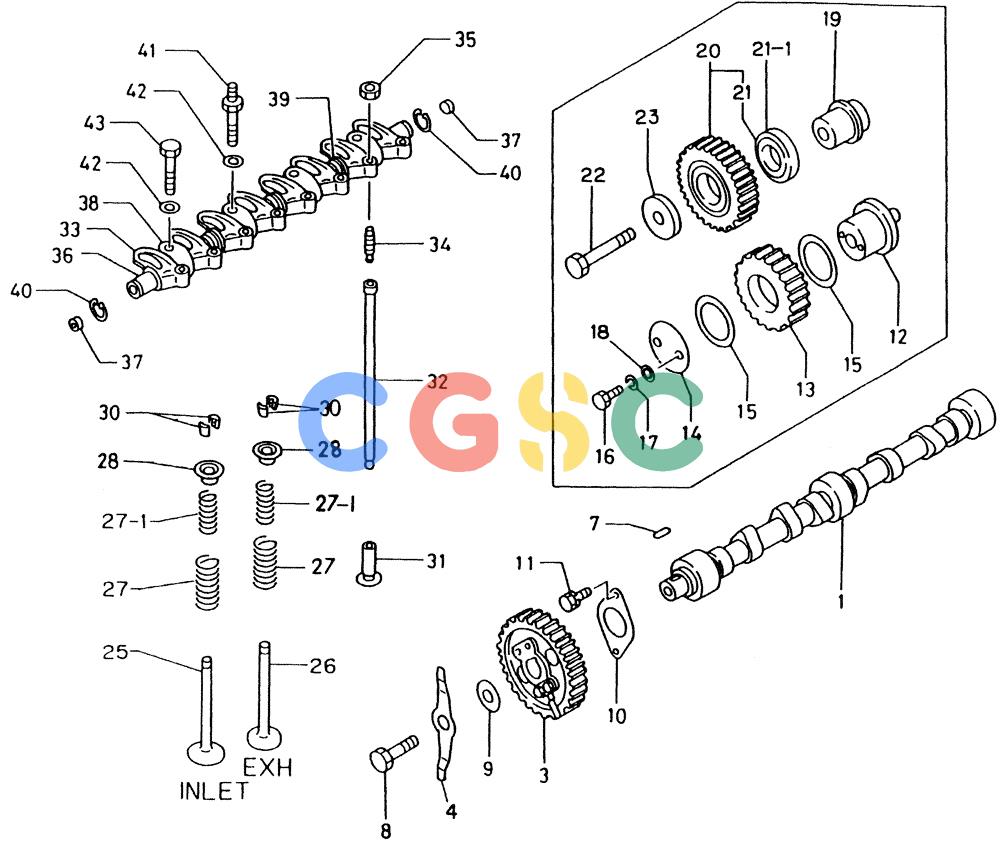

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-016) - VALVE MECHANISM (CAMSHAFT, IDLE GEAR & ROCKER ARM) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941277974 | [1] | CAMSHAFT | KOBCAMSHAFT |
| 1. | VI8944349052 | [1] | CAMSHAFT | |
| 3. | VI8943243360 | [1] | GEAR | KOBGEAR,CAM SHAFT Superseded by part number: VI8943243361 |
| 3. | VI8943263510 | [1] | SHAFT | KOBGEAR,CAMSHAFT |
| 3. | VI8970792120 | [1] | GEAR,CAMSHAFT | |
| 3. | VI8970207430 | [1] | GEAR,CAMSHAFT,B=31 | |
| 3. | VI8943284480 | [1] | GEAR,CAMSHAFT | |
| 7. | VI9080007180 | [1] | KEY | KOBKEY,FEATHER |
| 8. | VI5090000690 | [1] | BOLT | KOBBOLT,CAM GEAR FIX. |
| 9. | VI5125190021 | [1] | WASHER | KOBWASHER,CAM GEAR,T=8 |
| 10. | VI8941104801 | [1] | PLATE | KOBPLATE,THRUST |
| 11. | VI0500408160 | [2] | BOLT | KOBBOLT,THRUST PLATE |
| 12. | VI8941701170 | [1] | SHAFT,IDLE GEAR,A | |
| 12. | VI8941397581 | [1] | LOCKING RING | KOBSHAFT,IDLE GEAR,A |
| 12. | VI8970205690 | [1] | SHAFT,IDLE GEAR,A | |
| 12. | VI8971151290 | [1] | SHAFT,IDLE GEAR,A(95-1-) | |
| 13. | VI8944020040 | [1] | GEAR.W/BUSH, IDLE A | |
| 13. | VI8941397590 | [1] | GEAR.W/BUSH, IDLE A | |
| 13. | VI8971647730 | [1] | GEAR.W/BUSH, IDLE A(96-12-) | |
| 13. | VI8944500971 | [1] | SHAFT | KOBGEAR.W/BUSH, IDLE A |
| 13. | VI8970205670 | [1] | GEAR.W/BUSH, IDLE A | |
| 13. | VI8971151310 | [1] | GEAR.W/BUSH, IDLE A(95-1) | |
| 13. | VI8943282170 | [1] | GEAR | KOBGEAR,W/BUSH IDLE, A |
| 14. | VI8941419371 | [1] | COLLAR | KOBCOLLAR,THRUST,IDLE T=5.7 |
| 14. | VI8941712890 | [1] | COLLAR,THRUST.IDLE T=3.7 | |
| 15. | VI5095030820 | [2] | WASHER,THRUST,T=2.5 | |
| 15. | VI8970206750 | [2] | WASHER,THRUST | |
| 15. | VI8970898450 | [2] | WASHER,THRUST(95-1-) | |
| 16. | VI5090000841 | [2] | BOLT | KOBBOLT,IDLE SHAFT,L=55 Superseded by part number: VI8941500451 |
| 16. | VI9010658600 | [2] | BOLT,IDLE SHAFT | |
| 16. | VI9010658650 | [2] | BOLT,IDLE SHAFT | |
| 17. | VI9091508080 | [2] | WASHER,SPR. | |
| 18. | VI9091646080 | [2] | WASHER | KOBPL. |
| 19. | VI8941293260 | [1] | SHAFT,IDLE GEAR.B | |
| 19. | VI8970899320 | [1] | SHAFT,IDLE GEAR.B(95-1-) | |
| 19. | VI8941099131 | [1] | SHAFT | KOBSHAFT,IDLE GEAR.B |
| 20. | VI8941397610 | [1] | GEAR,W/BRG.,IDLE B | |
| 20. | VI8943696420 | [1] | DRIVEN GEAR | KOBGEAR,W/BRG.,IDLE B |
| 20. | VI8941701180 | [1] | GEAR,W/BRG.,IDLE B | |
| 20. | VI8970205700 | [1] | GEAR,IDLE.B | |
| 20. | VI8971473340 | [1] | GEAR | KOBGEAR,IDLE,B |
| 21. | VI8941102710 | [1] | BEARING | KOBBEARING,IDLER |
| 21. | VI8941293860 | [1] | BEARING,IDLER | |
| 21-1. | VI8943285010 | [1] | NEEDLE BEARING | KOBBEARING,IDLE GEAR.B |
| 21-1. | VI8941293860 | [1] | BEARING,IDLE GEAR.B(95-1-) | |
| 22. | VI8941293840 | [1] | BOLT,SHAFT | |
| 22. | VI8941097061 | [1] | BOLT | KOBBOLT,SHAFT |
| 23. | VI8941293800 | [1] | WASHER,IDLE FIX.,T=10 | |
| 23. | VI8971015021 | [1] | WASHER(95-1-) | |
| 23. | VI5125190021 | [1] | WASHER | KOBWASHER,IDLE FIX.,T=8 |
| 25. | VI8941332751 | [4] | VALVE | KOBVALVE,INLET Superseded by part number: VI8941332752 |
| 25. | VI8970211170 | [4] | VALVE:INLET | |
| 26. | VI8942478751 | [4] | VALVE, EXHAUST, OVER | KOBvalve,exh. Superseded by part number: VI8942478752 |
| 26. | VI8944332450 | [4] | VALVE,EXH. .STELLITE | |
| 27. | VI8942525361 | [8] | SPRING | KOBSPRING,VALVE,OUTER |
| 28. | VI8941337312 | [8] | SEAT | KOBSEAT,SPRING VALVE |
| 30. | VI5125650040 | [16] | COLLAR | KOBCOLLAR,SPLIT |
| 31. | VI8944383050 | [8] | TAPPET | KOBTAPPET Superseded by part number: VI8944383051 |
| 32. | VI8941432020 | [8] | ROD | KOBROD,PUSH Superseded by part number: VI8970716730 |
| 33. | VI8941523440 | [8] | ROCKER ARM | KOBROCKER ARM. |
| 34. | VI8941522830 | [8] | SCREW | KOBadj. Superseded by part number: VI8941522831 |
| 35. | VI9091115080 | [8] | NUT | KOBNUT,ADJ.SCREW LOCK Superseded by part number: VI0911115080 |
| 36. | VI8941523460 | [1] | ROCKER ARM | KOBSHAFT,ROCKER ARM Superseded by part number: VI8970361970 |
| 37. | VI9126260050 | [2] | PLUG | KOBPLUG,END,ROCKER SHAFT |
| 38. | VI8941523451 | [4] | BRACKET | KOBBRACKET,ROCKER SHAFT |
| 39. | VI8944333030 | [3] | SPRING | KOBSPRING,ROCKER ARM |
| 40. | VI9091800190 | [2] | SNAP RING | KOBRING,SNAP |
| 41. | VI8944333040 | [3] | BOLT | KOBBOLT,ROCKER ARM |
| 42. | VI9091640100 | [4] | WASHER | KOBWASHER,PLAIN Superseded by part number: VI9091645100 |
| 43. | VI8944333020 | [1] | BOLT | KOBBOLT,ROCKER ARM |
