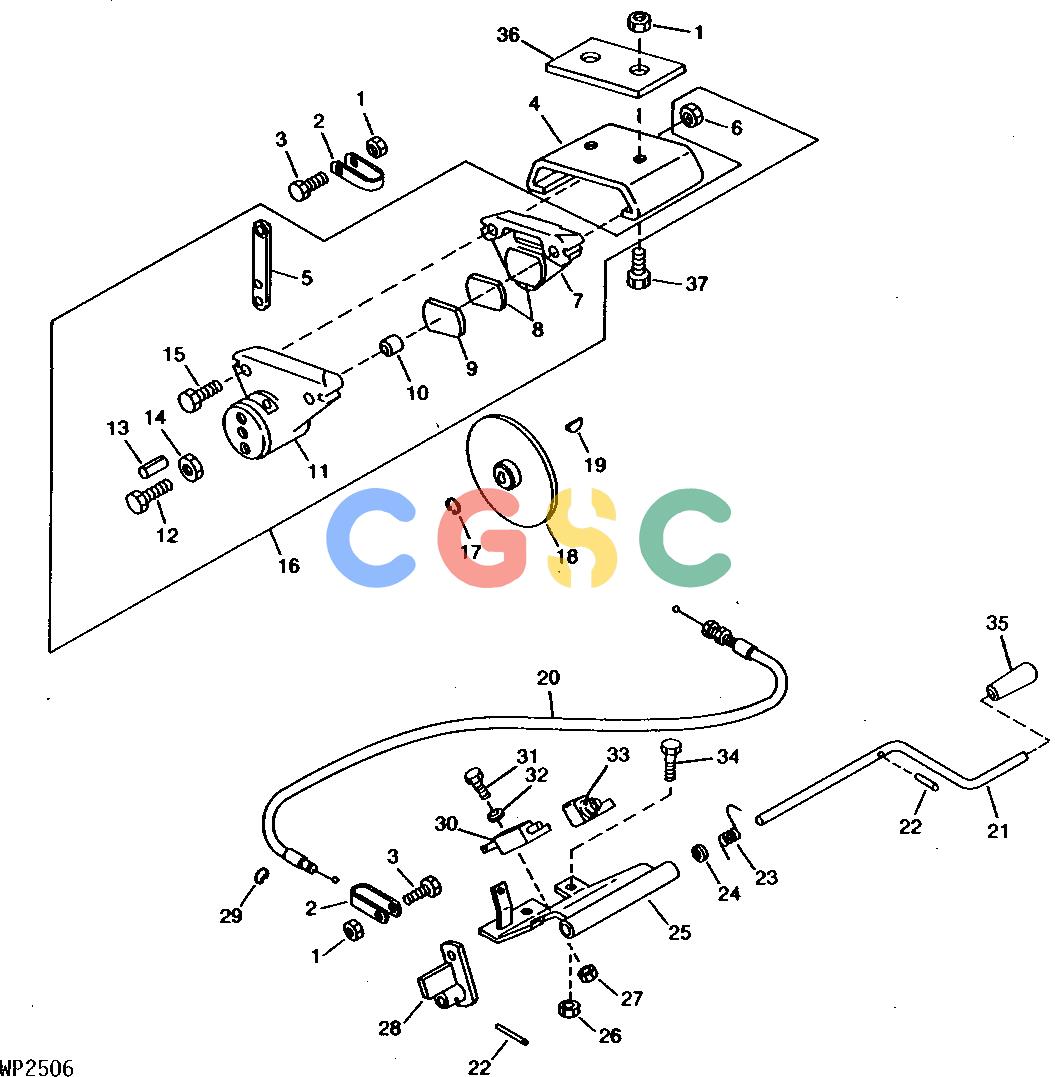

Pos.	Part No	Qty	Parts name	Comments
1.	14M7165	[4]	LOCK NUT	M6
2.	M95338	[2]	Clevis
3.	19M7077	[2]	CAP SCREW	M6 X 20
4.	ET15559	[1]	Bracket
5.	ET15791	[1]	Lever
6.	H32147	[2]	LOCK NUT	3/8"
7.	ET15784	[1]	Housing
8.	ET15788	[2]	Lining
9.	ET15789	[1]	Wear Plate
10.	ET15785	[1]	Pin
11.	ET15792	[1]	Housing
12.	ET15786	[1]	Bolt
13.	ET15790	[1]	GROOVE PIN
14.	14H934	[1]	NUT	7/16"
15.	19H3251	[2]	CAP SCREW	3/8" X 2-1/4" (HS, SAE 8)
16.	AM108484	[1]	DISK BRAKE CALIPER ASSY
17.	R26192	[1]	Snap Ring
18.	AM108490	[1]	Brake
19.	P27895	[1]	Shaft Key	3/16" X 3/16" X 1" (SUB H64373 AND CUT TO LENGTH)
20.	AM108482	[1]	CABLE
21.	W40804	[1]	PEDAL
22.	34M7098	[2]	SPRING PIN	4 X 26 MM
23.	M95342	[1]	Torsion Spring
24.	24M7047	[1]	Washer	13 X 24 X 2.500 MM
25.	AM108481	[1]	Pivot
26.	14M7166	[2]	LOCK NUT	M8
27.	14M7264	[2]	LOCK NUT	M4
28.	AW27002	[1]	Arm
29.	R72654	[1]	Snap Ring
30.	AM108483	[1]	Switch
31.	19M7752	[2]	CAP SCREW	M4 X 20
32.	24M7117	[2]	Washer	4.300 X 9 X 0.800 MM
33.	M95345	[1]	BOOT
34.	19M7163	[2]	CAP SCREW	M8 X 25
35.	R54271	[1]	Knob
36.	M96380	[1]	Spacer
37.	19M7933	[2]	CAP SCREW	M6 X 25 (HS, HEAD MARKED 10.9)
