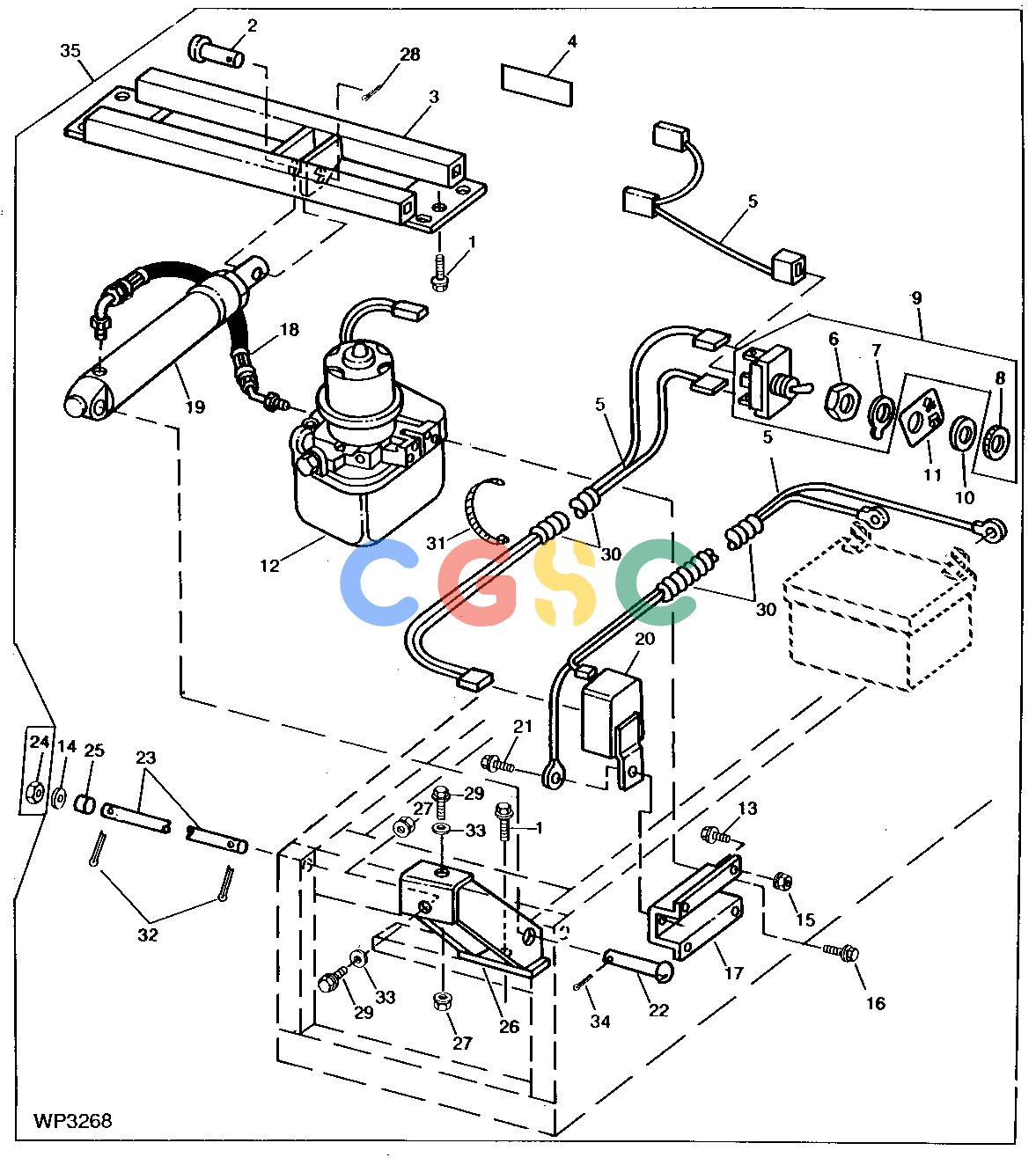

Pos.	Part No	Qty	Parts name	Comments
1.	37M7086	[5]	Screw	M10 X 20
2.	KK4893B	[1]	Pin Fastener	(SUB FOR J18724)
3.	AW26418	[1]	Bracket
4.	W40522	[1]	Label
5.	AW26857	[1]	WIRING HARNESS
6.	R44097	[1]	NUT	(SUB FOR W39906)
7.	R44096	[1]	LOCK PLATE	(SUB FOR W39907)
8.	W39908	[1]	NUT
9.	AW26448	[1]	TOGGLE/ROCKER SWITCH
10.	W39902	[1]	Shim	1/2 X 1 X .025"
11.	M95395	[1]	Label	(SUB FOR W40529)
12.	AW26443	[1]	Hydraulic Pump
13.	M42626	[4]	Bolt	1/4" X 3/4"
14.	24M7040	[2]	Washer	11 X 20 X 2 MM
15.	14H786	[4]	NUT	1/4"
16.	T56055	[2]	Screw	3/8" X 1/2"
17.	W39745	[1]	Bracket
18.	AW26445	[1]	Hydraulic Hose
19.	AW26444	[1]	HYDRAULIC CYLINDER
20.	AM118974	[1]	ELECTRICAL REPAIR KIT	(SUB FOR AW26447)
21.	37H137	[1]	Screw	0.190" X 5/8"
22.	M87968	[1]	Pin Fastener	(SUB FOR RV686A, THIS APPLICATION) (ALSO ORDER 11M7015)
23.	M96362	[1]	Pin Fastener	(ALSO ORDER (2) 11M7059) (SUB FOR R92390)
24.	W30616	[2]	LOCK NUT	3/8"
25.	Z46383	[2]	Bushing	11 MM ID X 20 MM OD X 10 MM LGTH
26.	AW26420	[1]	Bracket
27.	E55662	[2]	FLANGE NUT	3/8"
28.	11M7084	[1]	Cotter Pin	5 X 25 MM
29.	19H1731	[2]	CAP SCREW	3/8" X 1"
30.	........	[AR]	Conduit	4 M (10') MF M73937
31.	R44302	[10]	Tie Band
32.	11M7059	[2]	Cotter Pin	3.200 X 20 MM
33.	24M7028	[2]	Washer	10.500 X 20 X 2 MM
34.	11M7015	[1]	Cotter Pin	3.200 X 25 MM
35.	BW13650	[1]	KIT	ASSY
