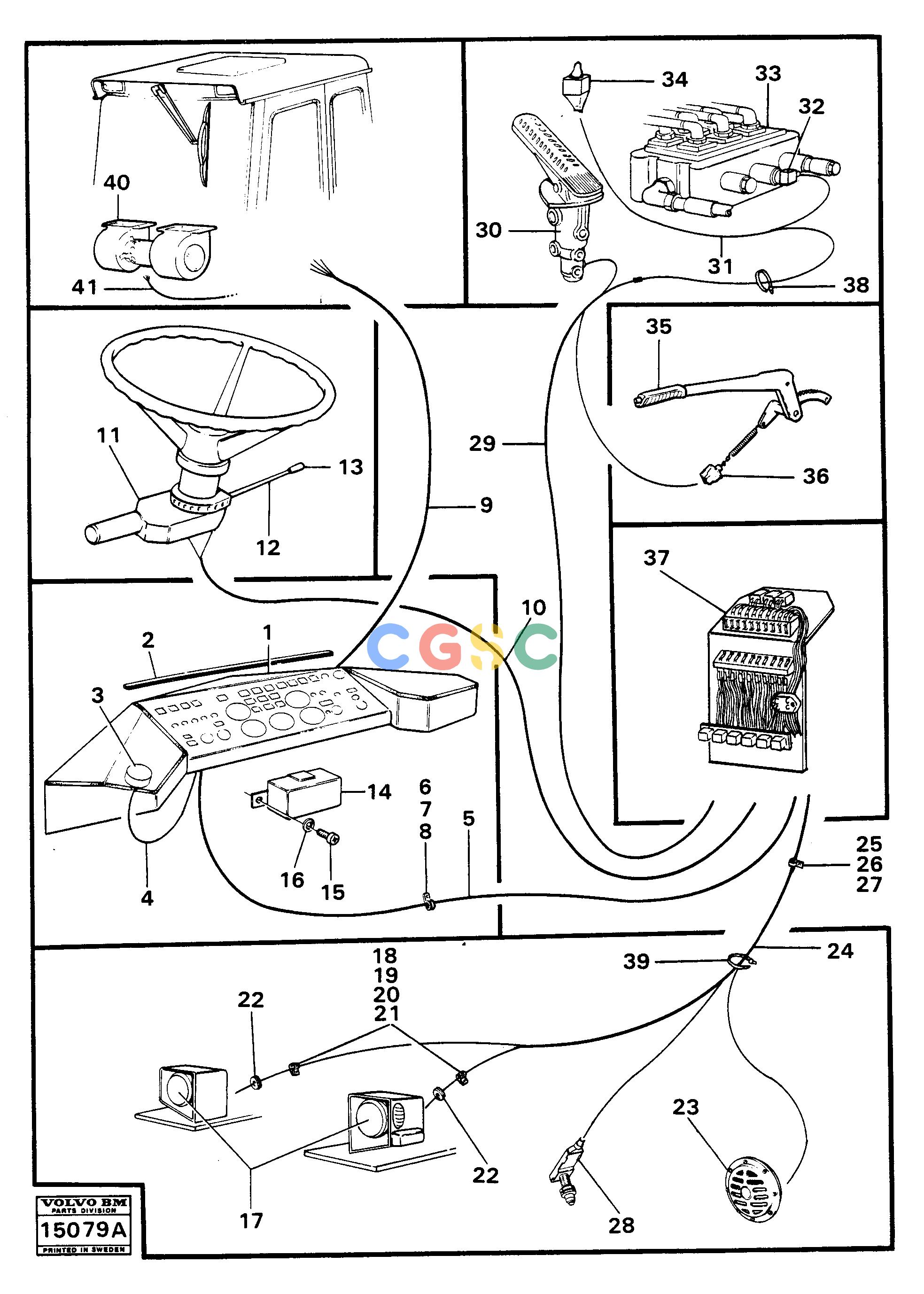

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Wire harness
|
|
| 40. |
|
[0001] |
Fan
|
|
| 41. |
VOE4803189
|
[0001] |
Cable harness
|
|
| 6. |
VOE952638
|
[0001] |
Clamp
|
|
| 7. |
VOE956095
|
[0001] |
Cross recessed screw
|
|
| 8. |
VOE13955781
|
[0001] |
Nut
|
|
| 9. |
VOE4927518
|
[0001] |
Cable harness
|
SER NO - 2571
|
| 1. |
|
[0001] |
Instr Panel
|
|
| |
VOE4929273
|
[0001] |
Cable harness
|
PROD 33105
|
| |
|
|
None
|
SER NO - 1108
|
| |
VOE4931544
|
[0001] |
Cable harness
|
|
| |
VOE4854767
|
[0001] |
Cable harness
|
|
| 10. |
VOE4803086
|
[0001] |
Cable harness
|
|
| 11. |
|
[0001] |
Gear shift control
|
|
| 12. |
VOE4803172
|
[0001] |
Switch
|
|
| 13. |
VOE1517462
|
[0001] |
Knob
|
TID UTF
|
| 14. |
VOE1623180
|
[0001] |
Flasher relay
|
CAB 1694 -
|
| 15. |
VOE956090
|
[0002] |
Cross recessed screw
|
|
| 2. |
VOE4786031
|
[0001] |
Framework moulding
|
|
| 16. |
VOE13941906
|
[0002] |
Washer
|
|
| 17. |
|
[0002] |
Head lamp
|
|
| 18. |
VOE952628
|
[0002] |
Clamp
|
|
| 19. |
VOE13955272
|
[0002] |
Screw
|
|
| 20. |
VOE13941906
|
[0002] |
Washer
|
|
| 21. |
VOE13955781
|
[0002] |
Nut
|
|
| 22. |
VOE961957
|
[0002] |
Grommet
|
|
| 23. |
|
[0001] |
Horn
|
|
| 24. |
VOE4927858
|
[0001] |
Cable harness
|
PROD 33100,33105,
|
| |
|
|
None
|
33107
|
| 3. |
|
[0001] |
Pressure gauge
|
|
| |
VOE4939235
|
[0001] |
Cable harness
|
PROD 33107
|
| |
|
|
None
|
SER NO - 3927
|
| |
VOE4939235
|
[0001] |
Cable harness
|
SER NO 3928 -
|
| 25. |
VOE943717
|
[0001] |
Clamp
|
|
| 26. |
VOE13941907
|
[0001] |
Washer
|
|
| 27. |
VOE940199
|
[0001] |
Hexagon screw
|
|
| 28. |
|
[0001] |
Switch
|
|
| 29. |
VOE4929075
|
[0001] |
Cable harness
|
|
| |
VOE4929270
|
[0001] |
Cable harness
|
PROD 33105
|
| 30. |
|
[0001] |
Brake valve
|
|
| 4. |
VOE4803028
|
[0001] |
Cable harness
|
PROD NO 33101, 33104
|
| 31. |
VOE4929074
|
[0001] |
Cable harness
|
|
| 32. |
VOE17431358
|
[0001] |
Microswitch
|
|
| 33. |
|
[0001] |
Hydraulic valve
|
|
| 34. |
|
[0001] |
Switch
|
|
| 35. |
|
[0001] |
Hand brake
|
|
| 36. |
|
[0001] |
Switch
|
|
| |
VOE3544691
|
[0001] |
Brake light switch
|
SEE GROUP 51
|
| 37. |
|
[0001] |
El Distr Unit
|
|
| 38. |
VOE4881440
|
[0001] |
Cable tie
|
|
| 39. |
VOE4881440
|
[0006] |
Cable tie
|
|
