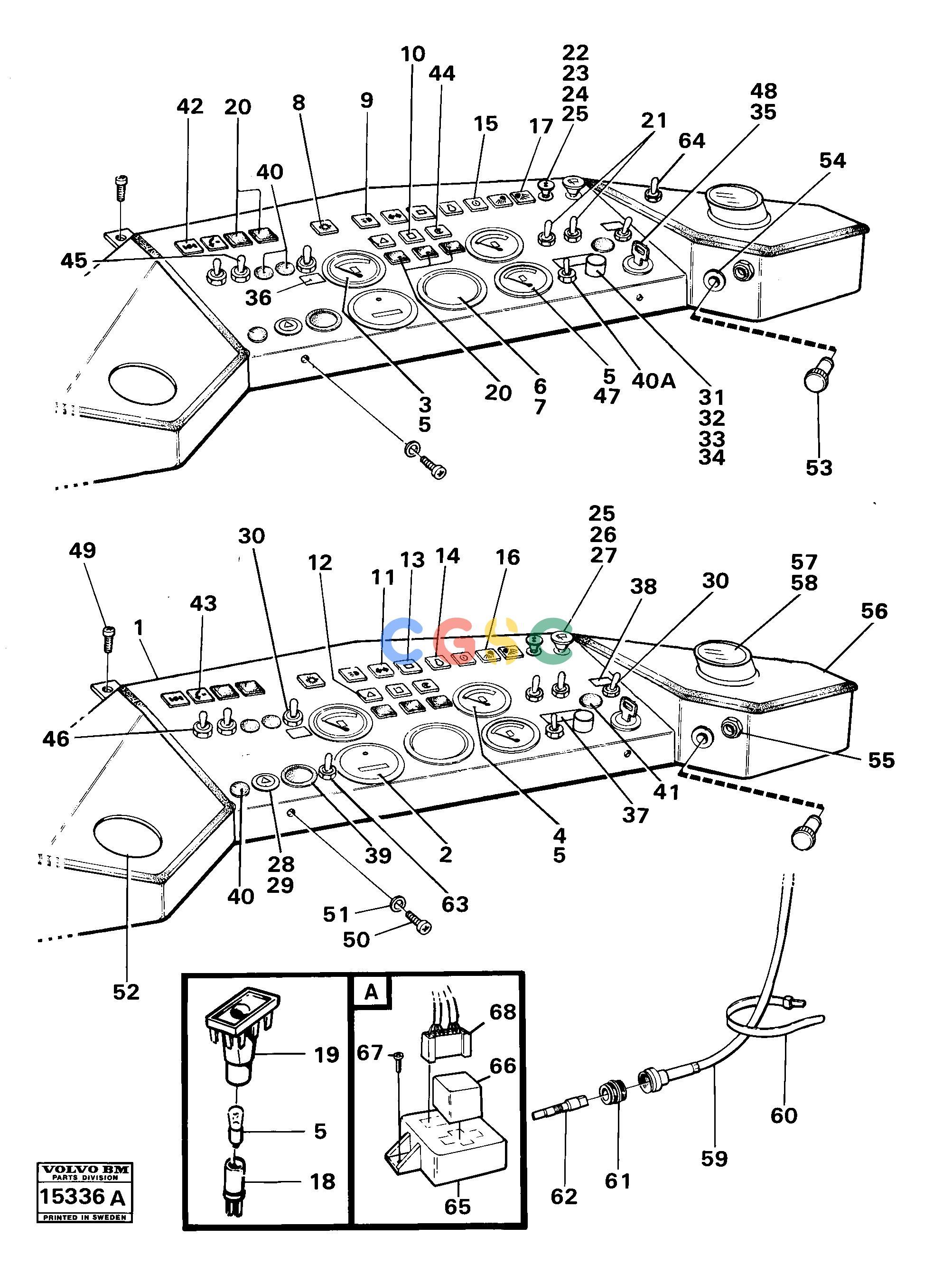

沃尔沃零件查询4300 Instruments and instrument panel Prod No 33100,33105430033100-33105VOE33100NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4824176
|
[1] |
Instrument panel
|
|
| |
|
|
Instr Panel
|
|
| 2. |
VOE4803195
|
[1] |
Hour counter
|
|
| 3. |
VOE11708798
|
[1] |
Temperature gauge
|
TM
|
| 4. |
VOE4803760
|
[1] |
Temperature gauge
|
MO
|
| 5. |
VOE182034
|
[15] |
Bulb
|
|
| 6. |
VOE1130162
|
[1] |
Lamp
|
|
| 7. |
VOE182059
|
[0002] |
Bulb
|
|
| 8. |
VOE4787121
|
[0001] |
Lens
|
|
| 9. |
VOE4787131
|
[0001] |
Lens
|
|
| 10. |
VOE4787127
|
[0001] |
Lens
|
|
| 11. |
VOE4787137
|
[0001] |
Lens
|
|
| 12. |
VOE4787129
|
[0001] |
Lens
|
|
| 13. |
VOE4787119
|
[0001] |
Lens
|
|
| 14. |
VOE4787116
|
[0001] |
Lens
|
|
| 15. |
VOE4787118
|
[0001] |
Lens
|
|
| 16. |
VOE4787133
|
[0001] |
Lens
|
|
| 17. |
VOE4787134
|
[0001] |
Lens
|
|
| 18. |
VOE4786025
|
[0013] |
Bulb socket
|
|
| 19. |
VOE4786024
|
[0013] |
Socket
|
|
| 20. |
VOE4786078
|
[0005] |
Plug
|
|
| 21. |
VOE4786698
|
[0002] |
Switch
|
|
| 22. |
VOE351307
|
[0001] |
Switch
|
|
| 23. |
VOE355781
|
[0001] |
Button
|
|
| 24. |
VOE4786046
|
[0001] |
Lens
|
|
| 25. |
VOE673225
|
[0002] |
Nut washer
|
|
| 26. |
VOE1573970
|
[0001] |
Switch
|
|
| |
|
|
None
|
HYTT NR-2571
|
| |
VOE1573970
|
|
Switch
|
HYTT NR-1108
|
| |
VOE1573970
|
[0001] |
Switch
|
HYTT NR2572-
|
| |
VOE1573970
|
|
Switch
|
CAB 1109-
|
| 27. |
VOE688626
|
[0001] |
Knob
|
|
| 28. |
VOE4787092
|
[0001] |
Wrn Flash Relay
|
|
| 29. |
VOE11997242
|
[0001] |
Bulb
|
|
| 30. |
VOE4786696
|
[0002] |
Switch
|
|
| 31. |
VOE1210190
|
[0001] |
Switch
|
|
| 32. |
VOE1215134
|
[0001] |
Knob
|
|
| 33. |
VOE1212859
|
[0001] |
Nut
|
|
| 34. |
VOE13940109
|
[0001] |
Lock washer
|
|
| 35. |
VOE1590738
|
[0001] |
Starter switch
|
|
| |
VOE1581255
|
[0002] |
Key
|
|
| |
VOE1578121
|
[0001] |
Starter switch
|
|
| |
VOE7238762
|
|
Starter switch
|
|
| 36. |
|
[0001] |
Decal
|
|
| 37. |
|
[0001] |
Decal
|
|
| 38. |
|
[0001] |
Decal
|
|
| 39. |
VOE961970
|
[0001] |
Plug
|
|
| |
VOE4787092
|
[0001] |
Wrn Flash Relay
|
|
| |
VOE4803434
|
[0001] |
Switch
|
|
| 40. |
VOE941266
|
[0003] |
Plug
|
|
| |
VOE4786696
|
[0001] |
Switch
|
|
| 40A. |
VOE4786696
|
[0001] |
Switch
|
|
| 41. |
VOE7659918
|
[0001] |
Plug
|
|
| 42. |
VOE11062686
|
[0001] |
Lens
|
|
| 43. |
VOE4803066
|
[0001] |
Lens
|
|
| 44. |
VOE4787120
|
[0001] |
Lens
|
|
| 45. |
VOE4787446
|
[0001] |
Switch
|
|
| 46. |
VOE4786696
|
[0001] |
Switch
|
|
| 47. |
VOE4787364
|
[0001] |
Fuel gauge
|
|
| 48. |
VOE1581184
|
[0001] |
Nut
|
|
| 49. |
VOE13955271
|
[0003] |
Screw
|
|
| 50. |
VOE956094
|
[0002] |
Cross recessed screw
|
|
| 51. |
VOE955892
|
[0005] |
Plain washer
|
|
| 52. |
|
[0001] |
Pressure gauge
|
|
| 53. |
VOE1586917
|
[0001] |
Cigarette lighter
|
|
| 54. |
VOE13946222
|
[0001] |
Retainer
|
|
| 55. |
VOE4787694
|
[0001] |
Box
|
|
| 56. |
|
[0001] |
Cover
|
SEE GROUP 82
|
| 57. |
VOE4787907
|
[0001] |
Speedometer
|
|
| 58. |
VOE182034
|
[0001] |
Bulb
|
|
| |
|
|
None
|
SER NO - 3647
|
| |
VOE182059
|
[0001] |
Bulb
|
|
| |
|
|
None
|
SER NO 3648 -
|
| 59. |
VOE4780327
|
[0001] |
Speedometer cable
|
|
| 60. |
VOE4881440
|
[0003] |
Cable tie
|
|
| 61. |
VOE4719976
|
[0001] |
Fitting
|
|
| 62. |
VOE4719975
|
[0001] |
Shaft
|
|
| 63. |
VOE4786696
|
[0001] |
Switch
|
|
| 64. |
VOE4786699
|
[0001] |
Switch
|
|
| 65. |
VOE1593940
|
[0001] |
Sensor
|
|
| 66. |
VOE4786690
|
[0001] |
Relay
|
|
| 67. |
VOE955126
|
[0002] |
Cross recessed screw
|
|
| 68. |
VOE4939291
|
[0001] |
Cable harness
|
|
