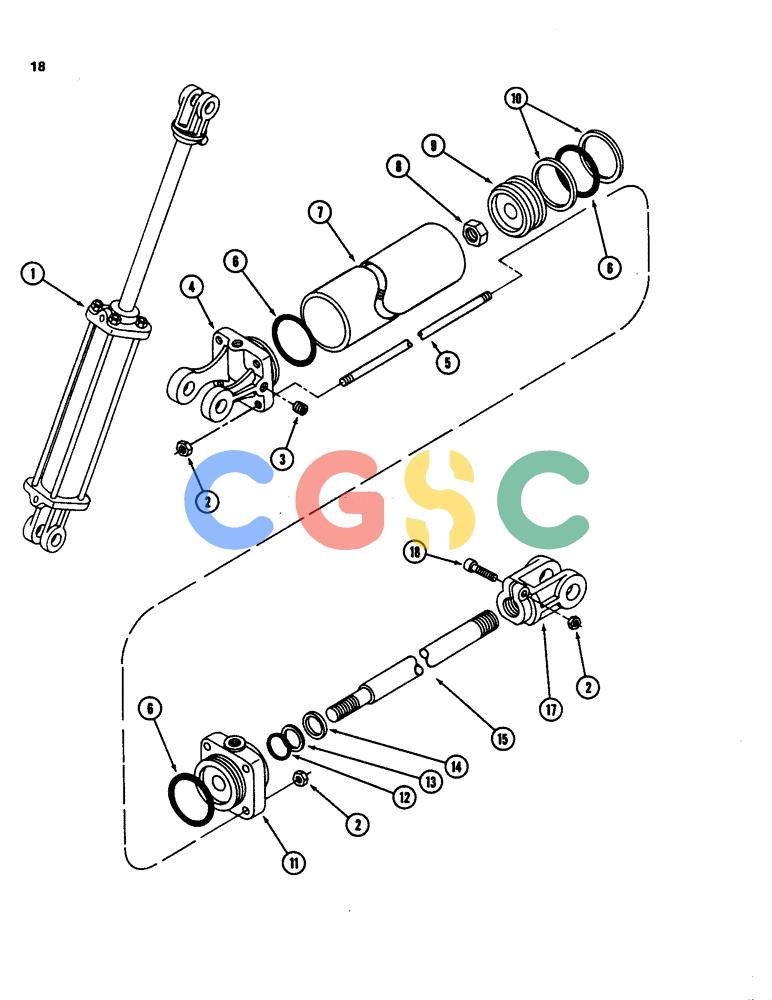

凯斯零件查询(3640) - CASE IH ROUND BALER (1/86-12/87) (18) - TAILGATE HYDRAULIC CYLINDER, 2 INCH (51 MM) BORE X 16 INCH (406MM) STROKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZA105000
|
[2] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic, tailgate Superseded by part number: 700709594
|
| 2. |
120377
|
[9] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 3. |
444660
|
[1] |
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
|
IH
PLUG - pipe, square socket, 3/8 inch PT
|
| 4. |
ZA207021
|
[1] |
BASE
|
CAS
- cylinder Superseded by part number: 737734
|
| 5. |
ZA105147
|
[4] |
ROD
|
IH
- tie Superseded by part number: 700709952
|
| 6. |
NSS
|
[3] |
NOT SOLD SEPARAT
|
CON
O-RING - cylinder
|
| 8. |
9413971
|
[1] |
LOCK NUT,3/4"-10, GB
|
IH
NUT - hex lock, 3/4 inch NC Superseded by part number: 280375
|
| 9. |
851022C1
|
[1] |
PISTON
|
IH
- cylinder Superseded by part number: B17272
|
| 11. |
ZA207015
|
[1] |
HEAD
|
CAS
- cylinder Superseded by part number: 737684
|
| 15. |
ZA105146
|
[1] |
ROD
|
IH
- piston Superseded by part number: 700709953
|
| 17. |
ZA207012
|
[1] |
CLEVIS
|
CAS
- piston rod Superseded by part number: 700709935
|
| 18. |
61-33828
|
[1] |
HEX SOC SCREW,3/8"-16 x 1 3/4"
|
CAS
BOLT - hex socket head, 3/8 NC x 1-3/4 inch Superseded by part number: 86511683
|
| . . |
ZA207009
|
[1] |
KIT
|
CAS
- seal, Includes: Ref. 6, 10, 12, 13 and 14 Superseded by part number: 700712175
|
