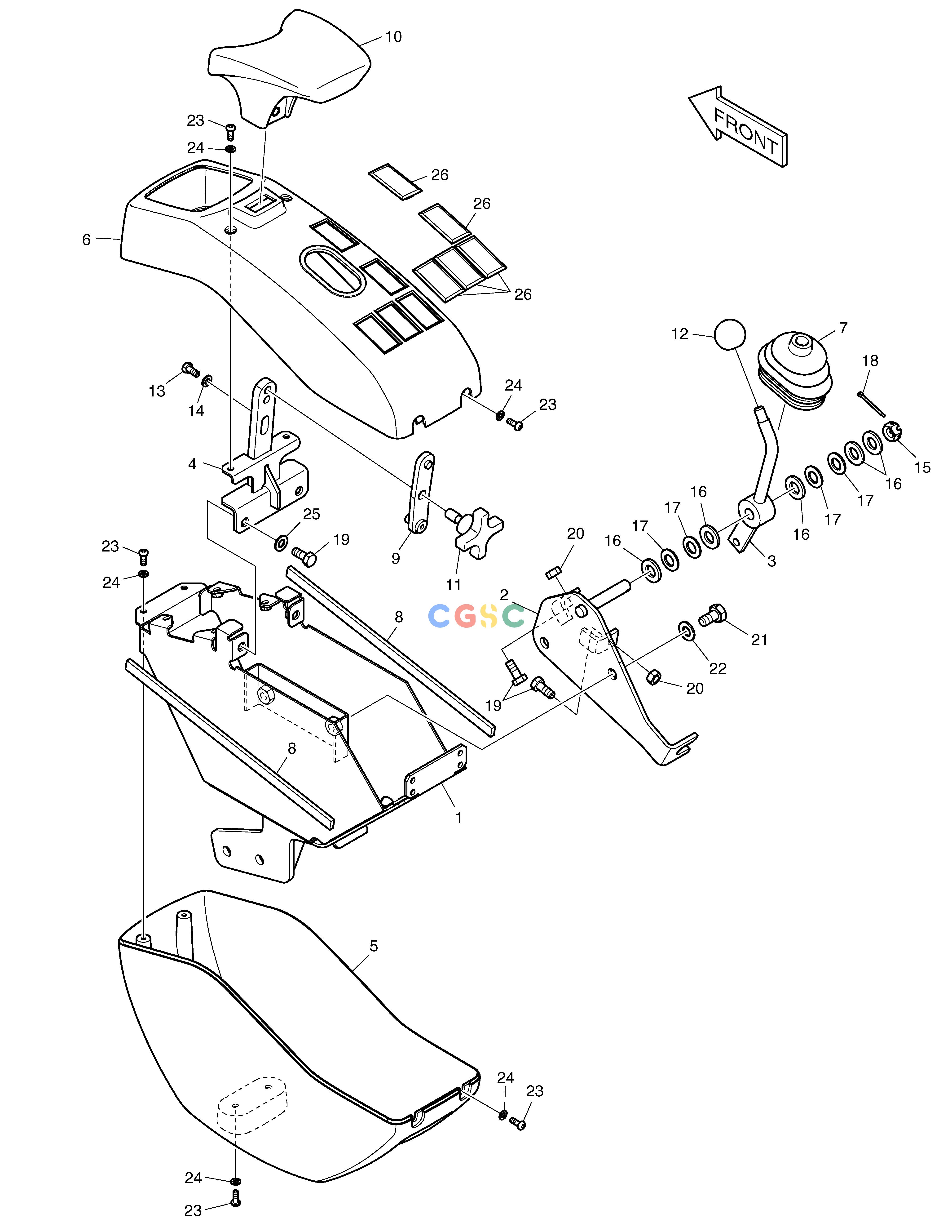

斗山零件查询CONTROL STAND-L.H 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022111
|
[-] |
STAND;LEFT HAND
|
|
| 1. |
K1022013
|
[1] |
BRACKET
|
|
| 10. |
K1022102
|
[1] |
ARMREST
|
|
| 11. |
K1023032
|
[1] |
KNOB
|
|
| 12. |
K1023035
|
[1] |
KNOB
|
|
| 13. |
S0504563
|
[1] |
BOLT
|
|
| 14. |
S5010313
|
[1] |
WASHER
|
|
| 15. |
S4330743
|
[1] |
NUT;CASTLE
|
|
| 16. |
K1023145
|
[5] |
WASHER;HARDENED
|
|
| 17. |
K1023131
|
[4] |
WASHER;SPRING
|
|
| 18. |
S5735481
|
[1] |
PIN;SPLIT
|
|
| 19. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 2. |
K1022023
|
[1] |
BRACKET
|
|
| 20. |
S4010533
|
[2] |
NUT
|
|
| 21. |
S0511863
|
[2] |
BOLT M10X1.5X25
|
|
| 22. |
S5010613
|
[2] |
WASHER
|
|
| 23. |
S3450843
|
[10] |
SCREW M5X0.8X14
|
|
| 24. |
S5000213
|
[10] |
. WASHER
|
|
| 25. |
S5010513
|
[2] |
WASHER
|
|
| 26. |
K1022140
|
[5] |
PLUG
|
|
| 3. |
K1022022
|
[1] |
LEVER
|
|
| 4. |
K1022094
|
[1] |
BRACKET
|
|
| 5. |
K1022097
|
[1] |
CASE;STAND LOWER
|
|
| 6. |
K1022098
|
[1] |
CASE;STAND UPPER
|
|
| 7. |
822-00080
|
[1] |
BOOTS
|
|
| 8. |
K1019071
|
[2] |
STRIP
|
|
| 9. |
K1022100
|
[1] |
PLATE;ARM REST(L.H)
|
|
