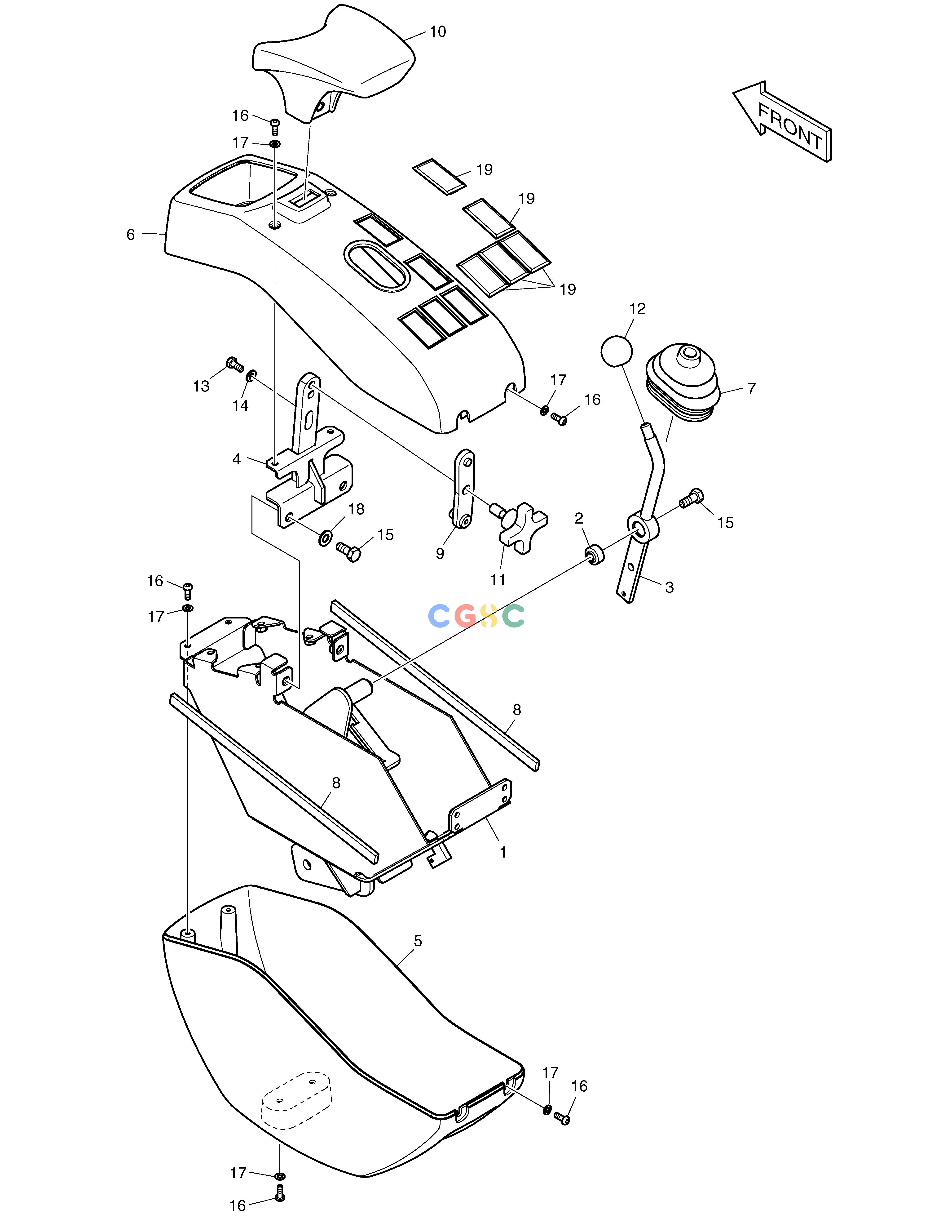

斗山零件查询CONTROL STAND-R.H 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
163 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022112
|
[-] |
STAND;RIGHT HAND
|
|
| 1. |
K1022014
|
[1] |
BRACKET
|
|
| 10. |
K1022102
|
[1] |
ARMREST
|
|
| 11. |
K1023032
|
[1] |
KNOB
|
|
| 12. |
K1023035
|
[1] |
KNOB
|
|
| 13. |
S0504563
|
[1] |
BOLT
|
|
| 14. |
S5010313
|
[1] |
WASHER
|
|
| 15. |
S0508863
|
[3] |
BOLT;M8X20
|
|
| 16. |
S3450843
|
[10] |
SCREW M5X0.8X14
|
|
| 17. |
S5000213
|
[10] |
. WASHER
|
|
| 18. |
S5010513
|
[2] |
WASHER
|
|
| 19. |
K1022140
|
[5] |
PLUG
|
|
| 2. |
K1022251
|
[1] |
BEARING;SPHERICAL
|
|
| 3. |
K1022008
|
[1] |
LEVER
|
|
| 4. |
K1022094
|
[1] |
BRACKET
|
|
| 5. |
K1022097
|
[1] |
CASE;STAND LOWER
|
|
| 6. |
K1022098
|
[1] |
CASE;STAND UPPER
|
|
| 7. |
822-00080
|
[1] |
BOOTS
|
|
| 8. |
K1019071
|
[2] |
STRIP
|
|
| 9. |
K1022101
|
[1] |
PLATE;ARM REST(R.H)
|
|
