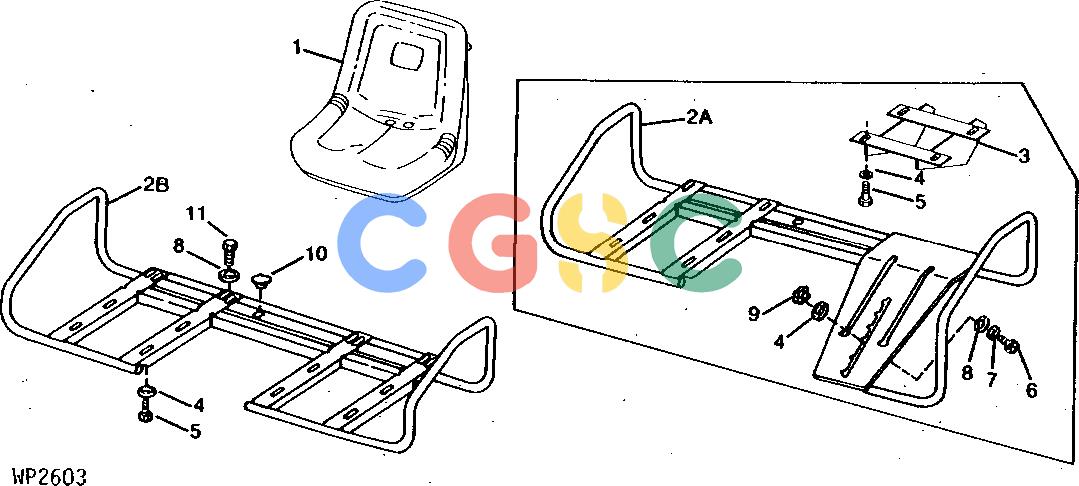

约翰迪尔零件查询622 - AMT SEAT AND SEAT FRAME SIEGE ET CHASSIS DE SIEGE SITZ UND SITZRAHMEN SEDILE E TELAIO DEL SEDILE ASIENTOEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AM39582
|
[2] |
SEAT
|
|
| 1. |
AM39680
|
[AR] |
CUSHION KIT
|
|
| 2A. |
AW26639
|
[1] |
FRAME
|
|
| 2A. |
AW26639
|
[1] |
FRAME
|
|
| 2B. |
AM108576
|
[1] |
FRAME
|
|
| 3. |
AW26686
|
[1] |
Bracket
|
|
| 3. |
AW26686
|
[1] |
Bracket
|
|
| 4. |
24M7028
|
[AR] |
Washer
|
|
| 5. |
19H1936
|
[8] |
CAP SCREW
|
|
| 6. |
19H1731
|
[1] |
CAP SCREW
|
|
| 6. |
19H1731
|
[1] |
CAP SCREW
|
|
| 7. |
12H310
|
[1] |
Lock Washer
|
|
| 7. |
12H310
|
[1] |
Lock Washer
|
|
| 8. |
24M7178
|
[AR] |
Washer
|
|
| 9. |
M48237
|
[1] |
Knob
|
|
| 9. |
M48237
|
[1] |
Knob
|
|
| 10. |
W40932
|
[1] |
Plug
|
|
| 11. |
19M7810
|
[2] |
Screw
|
|
