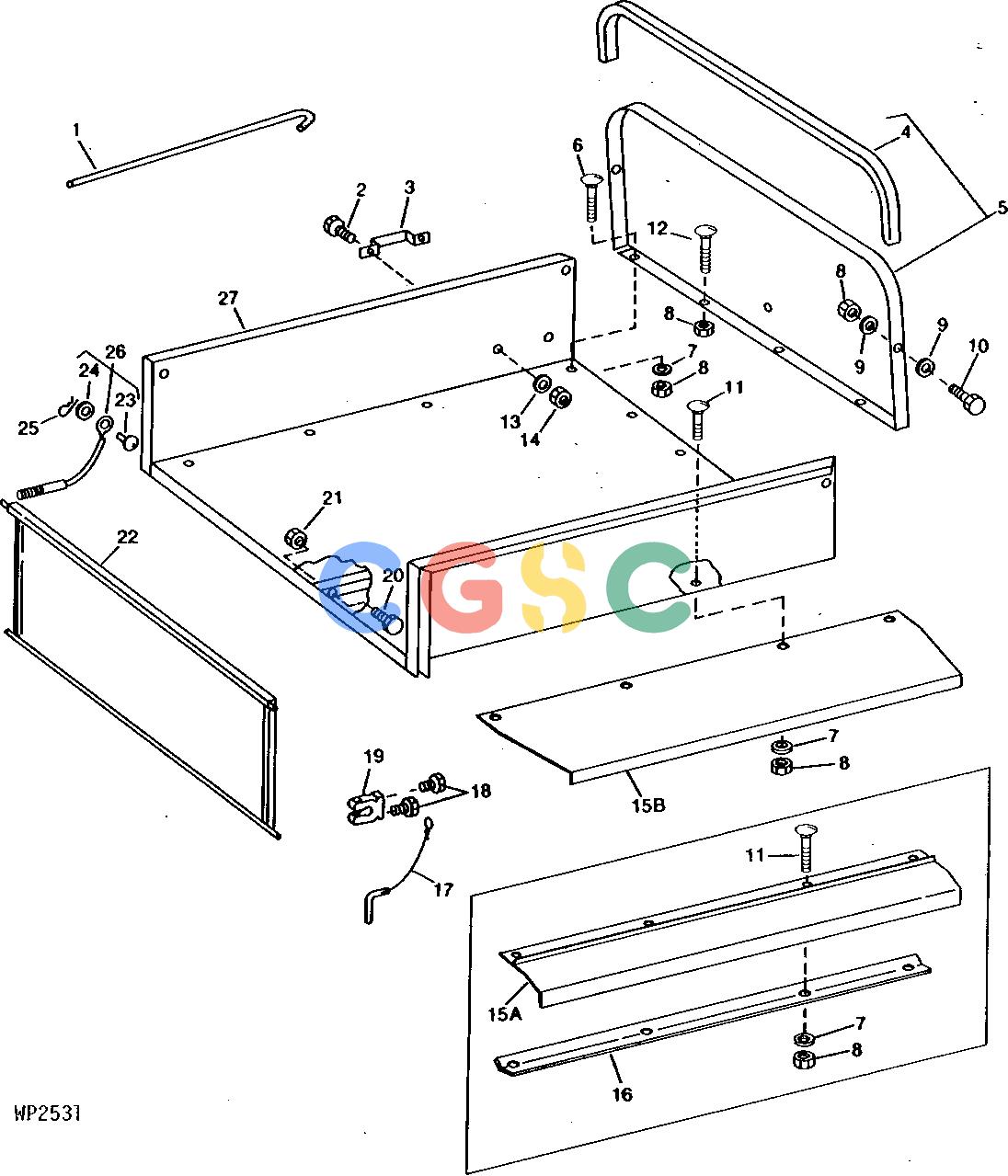

Pos.	Part No	Qty	Parts name	Comments
1.	W40248	[1]	Hook
2.	19M8425	[2]	CAP SCREW	M6 X 16 (HS, HEAD MARKED 10.9)
3.	L57250	[1]	Handle
4.	R88613	[1]	ISOLATOR
5.	AM108528	[1]	Guard	(SUB FOR AW26810)
6.	03M7185	[AR]	Bolt	M8 X 25
7.	24M7207	[8]	Washer	8.400 X 24 X 2 MM
7.	24M7207	[8]	Washer	8.400 X 24 X 2 MM
8.	14M7166	[12]	LOCK NUT	M8
9.	24H1289	[4]	Washer	21/64" X 5/8" X 0.049"
10.	19M7162	[2]	CAP SCREW	M8 X 16
11.	03M7184	[6]	Bolt	M8 X 20
12.	03M7183	[2]	Bolt	M8 X 16
12.	03M7183	[2]	Bolt	M8 X 16
13.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
14.	14M7165	[2]	LOCK NUT	M6
15A.	W40271	[2]	Extension	(A) R.H. OR L.H.
15B.	M96642	[1]	Extension	(B) R.H.
15B.	M96643	[1]	Extension	(B) L.H.
15B.	M96642	[1]	Extension	R.H.
15B.	M96643	[1]	Extension	L.H.
16.	W40946	[2]	STRAP	(A)
17.	AW26871	[4]	CABLE
18.	H111705	[8]	Screw
19.	W40162	[4]	Latch
20.	19M7347	[2]	CAP SCREW	M10 X 120 (HS, HEAD MARKED 10.9)
21.	14M7167	[2]	LOCK NUT	M10
22.	AW26745	[2]	Tail Gate	W/(2) JD5901, (1) JD5599
23.	........	[2]	Pin Fastener	(C)
24.	E1910M	[2]	Push Nut
25.	J16931	[2]	Pin
26.	AW26872	[2]	CABLE
27.	AW26744	[1]	BOX
27.	AM108485	[1]	BOX
27.	AM108577	[1]	BOX	W/(1) M96694, (1) M96695
