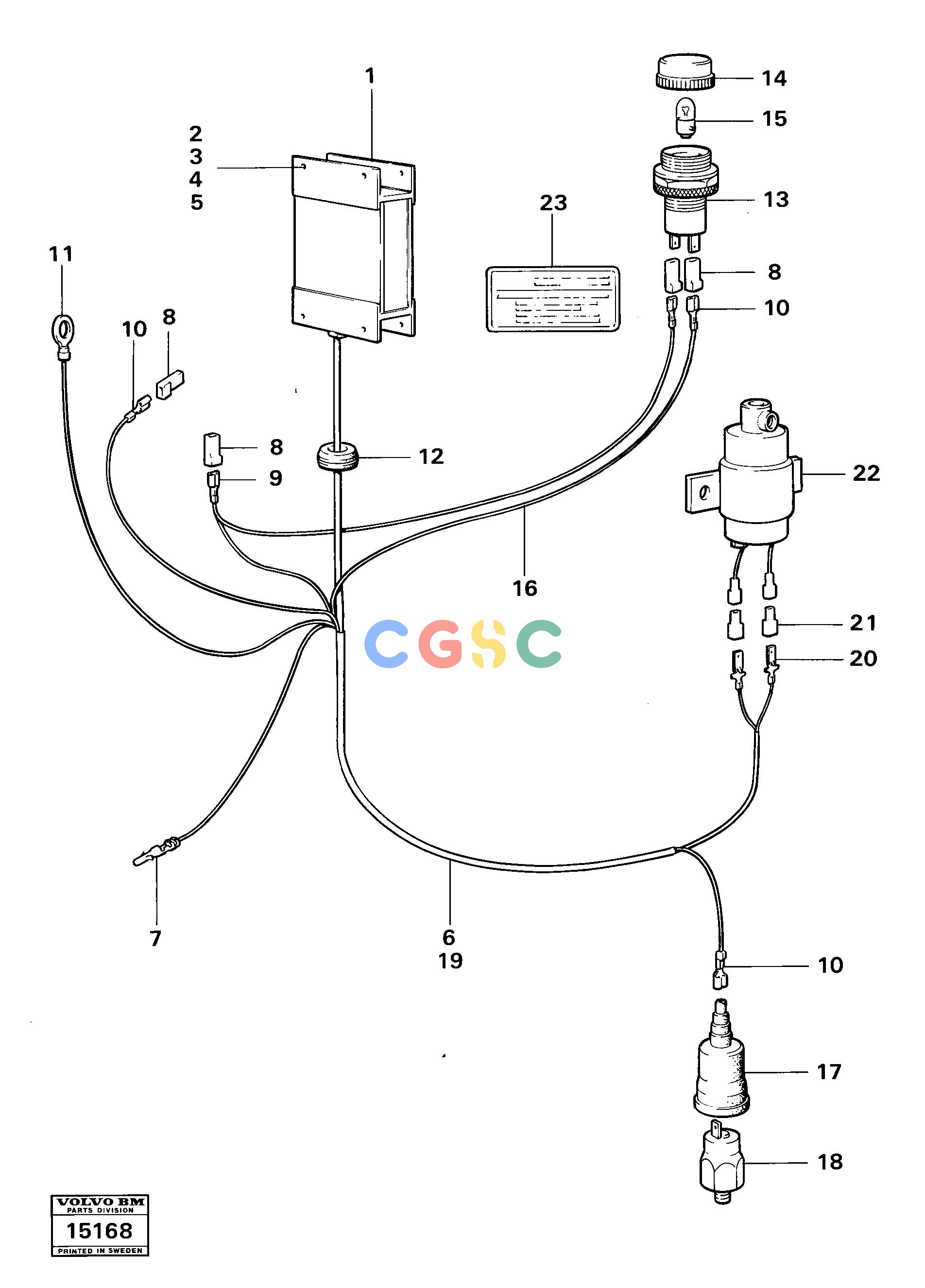

沃尔沃零件查询4300 Electrical system 983814300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13955781
|
[0002] |
Nut
|
|
| 6. |
|
[0001] |
Wire harness
|
|
| |
VOE965822
|
[0003] |
Cable terminal
|
|
| |
VOE13948297
|
[0003] |
Tab housing
|
|
| |
VOE948296
|
[0003] |
Housing
|
|
| 1. |
VOE4880531
|
[0001] |
Control Unit
|
|
| |
VOE965824
|
[0003] |
Cable terminal
|
|
| 7. |
VOE965824
|
[0001] |
Cable terminal
|
|
| 8. |
|
[0004] |
Socket housing
|
|
| 9. |
|
[0001] |
Cable shoe
|
|
| 10. |
|
[0004] |
Cable shoe
|
|
| 11. |
VOE956929
|
[0001] |
Cable terminal
|
|
| 12. |
|
[0001] |
Rubber bushing
|
|
| |
VOE4787653
|
[0001] |
Control lamp
|
|
| 13. |
VOE355777
|
[0001] |
Socket
|
|
| 14. |
VOE4780740
|
[0001] |
Lens
|
|
| 2. |
VOE13955271
|
[0002] |
Screw
|
|
| 15. |
VOE182034
|
[0001] |
Bulb
|
|
| 16. |
VOE954430
|
[0500] |
El Cable
|
|
| 17. |
VOE4787661
|
[0001] |
Protecting casing
|
|
| 18. |
VOE4787688
|
[0001] |
Pressure monitor
|
|
| 19. |
VOE185506
|
[0500] |
Hose
|
|
| 20. |
VOE949490
|
[0002] |
Cable terminal
|
|
| 21. |
VOE958207
|
[0002] |
Housing
|
|
| 22. |
VOE4785307
|
[0001] |
Solenoid valve
|
|
| 23. |
|
[0001] |
Decal
|
|
| 3. |
VOE955892
|
[0002] |
Plain washer
|
|
| 4. |
VOE13941906
|
[0002] |
Washer
|
|
