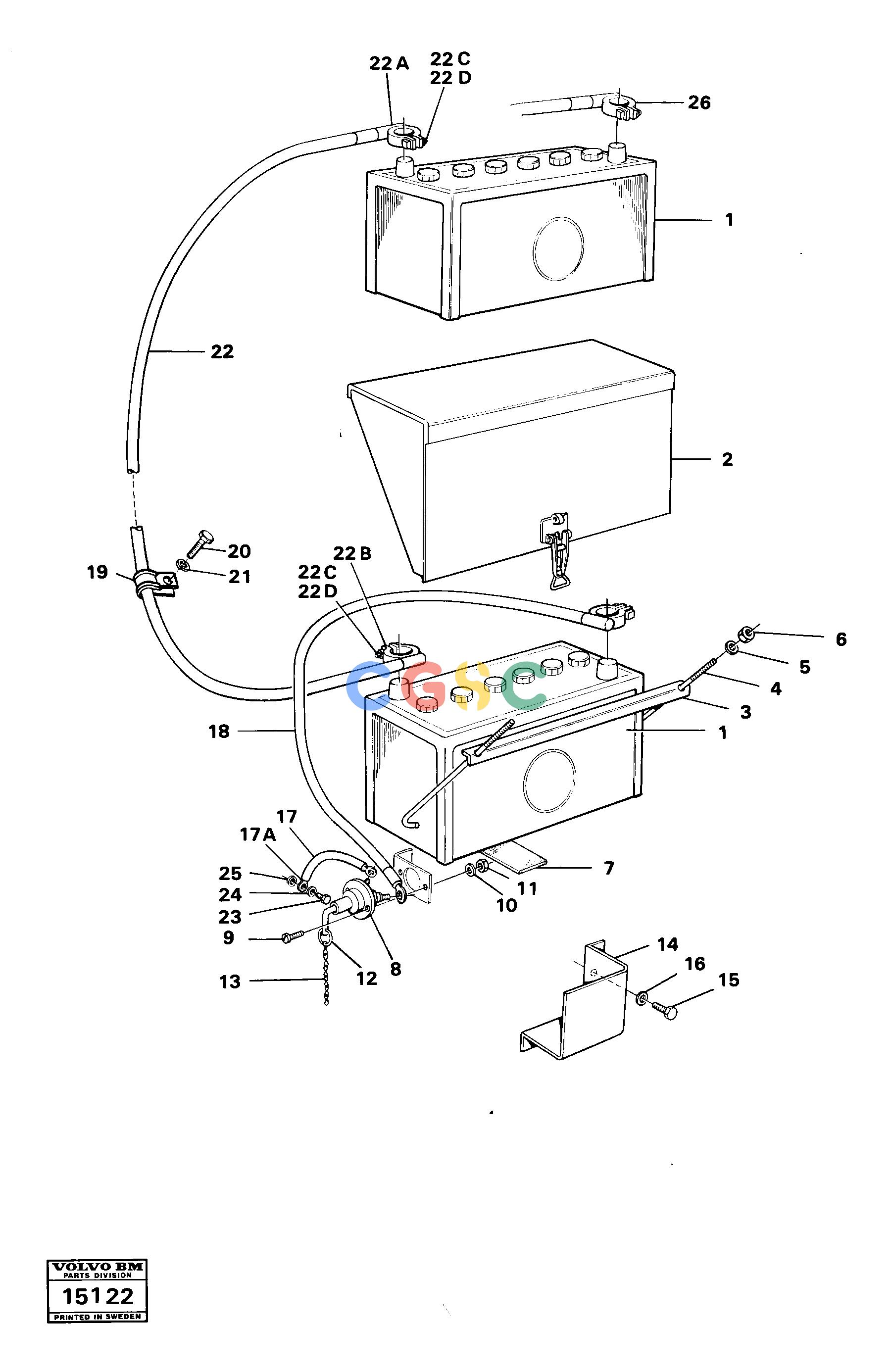

沃尔沃零件查询4300 Battery with assembling details4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
951 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4929751
|
[0001] |
Battery box
|
V PROD NO 33106, 33107
|
| 3. |
VOE4974361
|
[0002] |
Tensioner
|
|
| 4. |
VOE4762274
|
[0002] |
Tensioning screw
|
|
| 5. |
VOE976945
|
[0004] |
Washer
|
|
| 6. |
VOE971071
|
[0004] |
Hexagon nut
|
|
| 1. |
|
[0002] |
Battery
|
|
| 7. |
VOE4932365
|
[0004] |
Spacer
|
|
| 8. |
VOE7072306
|
[0001] |
Switch
|
|
| |
VOE7072466
|
[0001] |
Key
|
|
| 9. |
VOE13955271
|
[0002] |
Screw
|
|
| 10. |
VOE13941906
|
[0002] |
Washer
|
|
| 11. |
VOE13955781
|
[0002] |
Nut
|
|
| 12. |
VOE4747089
|
[0002] |
Lock ring
|
|
| 13. |
VOE4880283
|
[0001] |
Chain
|
|
| 14. |
VOE4926120
|
[0001] |
Casing
|
|
| 15. |
VOE13955294
|
[0002] |
Screw
|
|
| 2. |
VOE4762539
|
[0001] |
Cap
|
H PROD NO 33100, 33105
|
| 16. |
VOE13941907
|
[0002] |
Washer
|
|
| 17. |
VOE11147642
|
[0001] |
Battery cable
|
SER NO 4058 - 4351
|
| |
VOE4854577
|
[0001] |
Cable
|
SER NO 4352 -
|
| |
VOE715146
|
[0001] |
Ground cable
|
SER NO - 4057
|
| 17A. |
VOE954510
|
[0002] |
Cable terminal
|
|
| 18. |
VOE4850001
|
[0001] |
Battery cable
|
|
| 19. |
VOE977599
|
[0002] |
Clamp
|
|
| 20. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 21. |
VOE13941906
|
[0002] |
Washer
|
|
| |
VOE4762540
|
[0001] |
Cap
|
V PROD NO 33100, 33105
|
| |
VOE4947420
|
[0001] |
Battery cable
|
|
| 22. |
VOE954493
|
[REQ] |
Wire
|
SER NO -1025
|
| |
|
[REQ] |
Cable
|
SER NO 1026-
|
| |
|
|
None
|
|
| 22A. |
VOE14024615
|
[0001] |
Battery cable terminal
|
-
|
| 22B. |
VOE14024614
|
[0001] |
Battery cable terminal
|
+
|
| 22C. |
VOE13948795
|
[0002] |
Screw
|
|
| 22D. |
VOE13948794
|
[0002] |
Nut
|
|
| |
VOE4929750
|
[0001] |
Battery box
|
H PROD NO 33106, 33107
|
| 23. |
VOE13955294
|
[0001] |
Screw
|
|
| 24. |
VOE13955894
|
[0001] |
Washer
|
|
| 25. |
VOE955949
|
[0001] |
Toothed washer
|
|
| 26. |
|
[0001] |
Cable
|
|
