约翰迪尔零件查询622 - AMT PANELS, CONSOLE AND DASH PANNEAUX, CONSOLE ET TABLEAU DE BORD VERKLEIDUNG, SCHALTKONSOLE UND ARMATUREPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 205 次

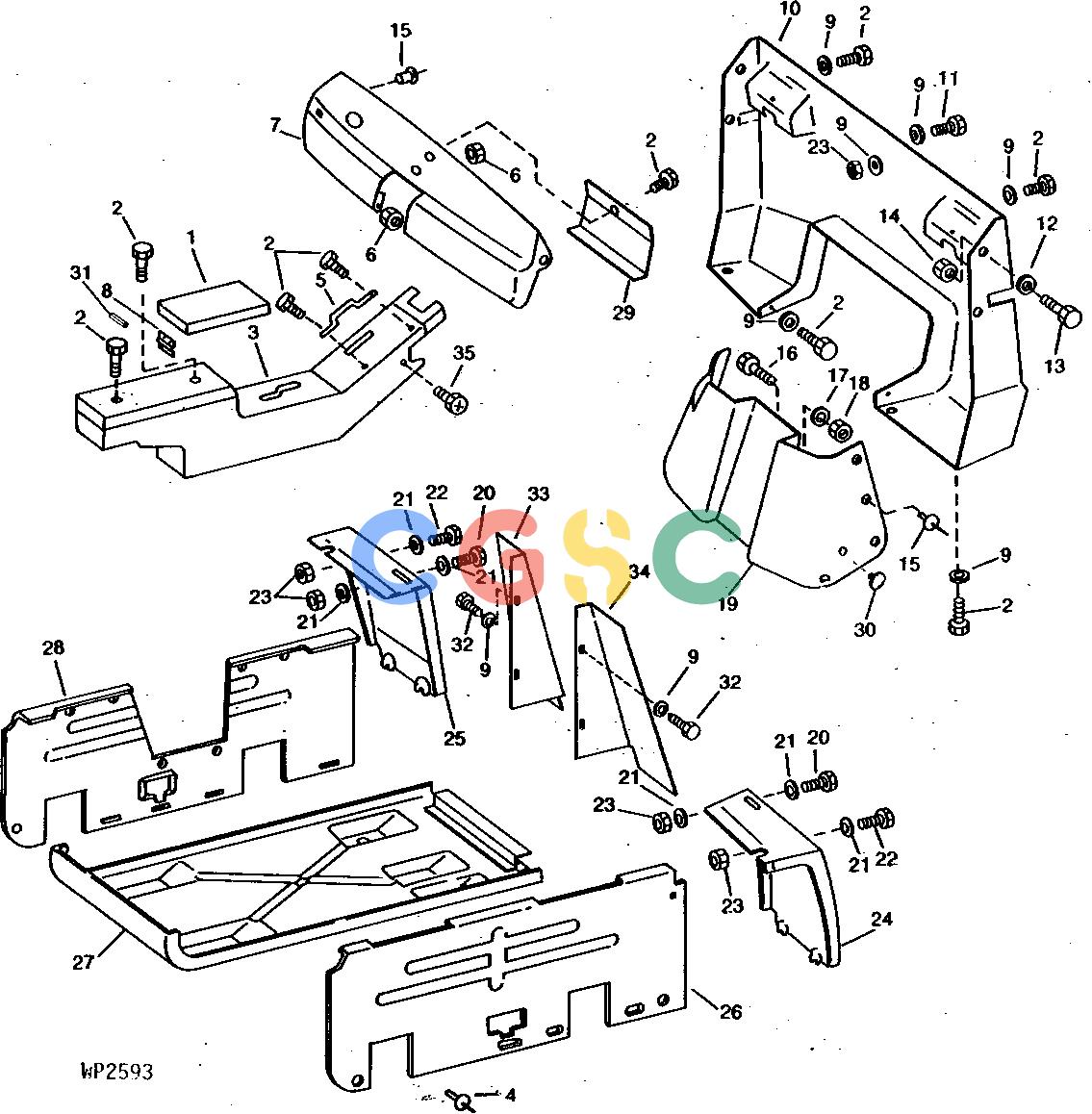

Pos.	Part No	Qty	Parts name	Comments
1.	W40532	[1]	Cover	(ALSO ORDER W40531, W40533 AND W40557) (SUB FOR W40266)
2.	37H154	[9]	Screw	1/4" X 1"
3.	W40533	[1]	Console	(ALSO ORDER W40531, W40532 AND W40557) (SUB FOR W40267)
4.	R68332	[AR]	Rivet	0.188" X 0.976"
4.	R55326	[AR]	Rivet	0.188" X 0.664"
5.	L57250	[1]	Handle
6.	W40740	[3]	NUT
7.	W40531	[1]	Instrument Panel	(ALSO ORDER W40532, W40533 AND W40557) (SUB FOR W40265)
7.	M95354	[1]	Instrument Panel	(A)
8.	........	[1]	HINGE	NSEP
9.	24H1287	[AR]	Washer	9/32" X 5/8" X 0.065"
10.	W40530	[1]	Panel	(SUB FOR W40221)
10.	M95353	[1]	Panel	(A)
11.	19M8425	[1]	CAP SCREW	M6 X 16 (HS, HEAD MARKED 10.9)
12.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
13.	19H1919	[2]	CAP SCREW	1/4" X 5/8"
14.	14H786	[2]	NUT	1/4"
15.	R55326	[AR]	Rivet	0.188" X 0.664"
16.	03M7184	[2]	Bolt	M8 X 20
17.	24M7207	[2]	Washer	8.400 X 24 X 2 MM
18.	14M7166	[2]	LOCK NUT	M8
19.	W40536	[1]	Panel	(SUB FOR W40270)
20.	19M7374	[2]	CAP SCREW	M6 X 40
21.	24H1287	[6]	Washer	9/32" X 5/8" X 0.065"
22.	19M7374	[2]	CAP SCREW	M6 X 40
23.	14M7165	[5]	LOCK NUT	M6
24.	W40534	[1]	Fender	R.H. (SUB FOR W40268)
25.	W40535	[1]	Fender	L.H. (SUB FOR W40269)
26.	W39770	[1]	Panel	R.H.
27.	W39768	[1]	Panel
28.	W40596	[1]	Panel	L.H.
29.	W40504	[1]	Panel
30.	W40932	[1]	Plug
31.	W40557	[1]	WIRE
31.	W40557	[1]	WIRE
32.	37H24	[4]	Screw	1/4" X 3/4"
33.	M96651	[1]	Panel	(B) L.H.
34.	M96650	[1]	Panel	(B) R.H.
35.	R76500	[2]	Screw	0.190" X 1/2"
