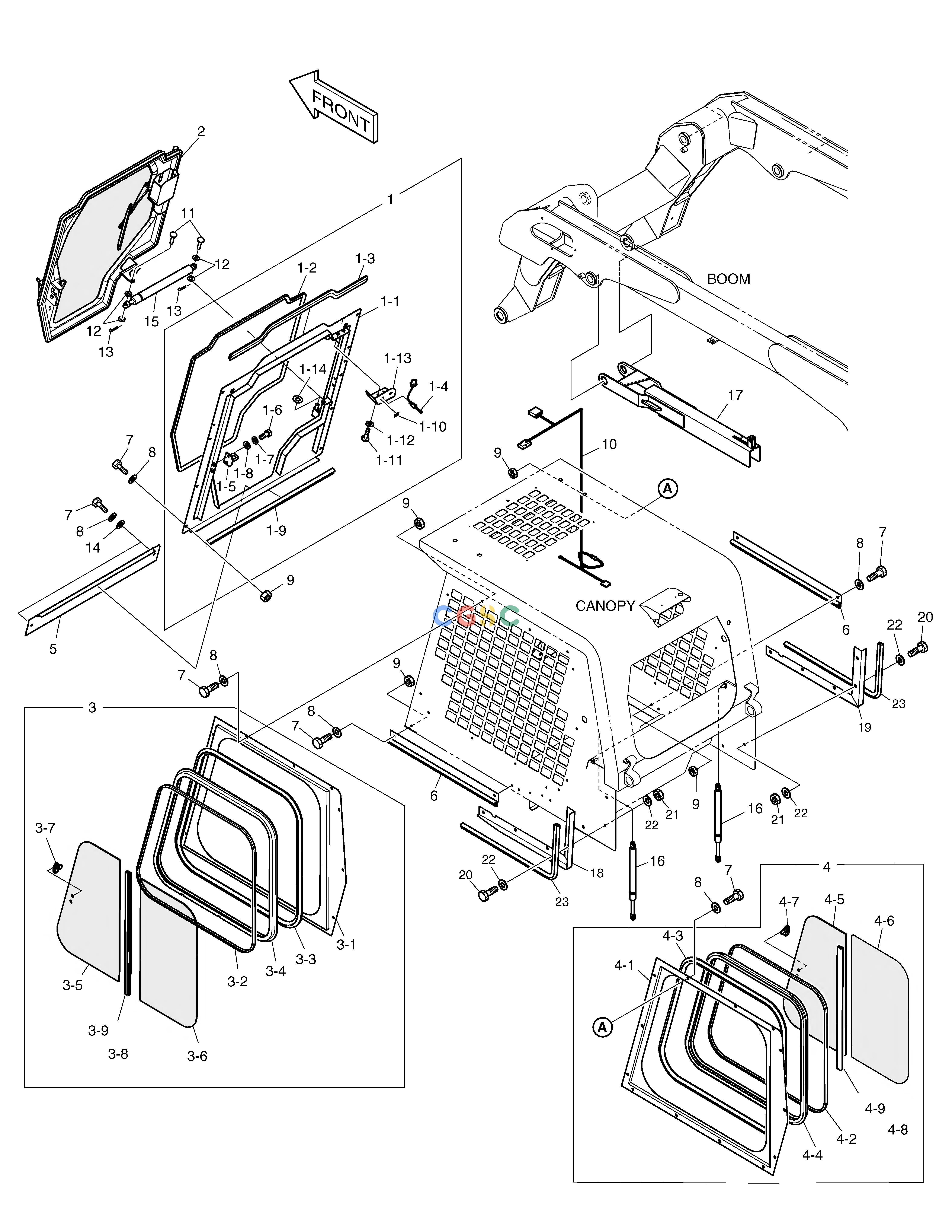

斗山零件查询DOOR MOUNTING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023364B
|
[-] |
HARD CAB
|
|
| 1. |
K1021076
|
[1] |
FRONT DOOR FRAME
|
|
| 1-1. |
NA00470
|
[1] |
|
|
| 1-10. |
K1021078
|
[1] |
PLATE;NAME(WIPER)
|
|
| 1-11. |
S3450973
|
[3] |
SCREW M6X1.0X16
|
|
| 1-12. |
S5010313
|
[3] |
WASHER
|
|
| 1-13. |
K1021156
|
[1] |
BRACKET
|
|
| 1-14. |
K1020901
|
[2] |
BUSHING
|
|
| 1-2. |
K1019747
|
[292] |
STRIP;BULK
|
|
| 1-3. |
K1019087
|
[84] |
STRIP;BULK
|
|
| 1-4. |
K1019067
|
[1] |
SWITCH;TOGGLE
|
|
| 1-5. |
K1020900
|
[1] |
STRIKER
|
|
| 1-6. |
S0508863
|
[2] |
BOLT;M8X20
|
|
| 1-7. |
K1023146
|
[2] |
WASHER;HARDENED
|
|
| 1-8. |
S5100503
|
[2] |
WASHER
|
|
| 1-9. |
K1019748
|
[76] |
STRIP
|
|
| 10. |
K1021167
|
[1] |
HARNESS;WIPER
|
|
| 11. |
S5760212
|
[2] |
PIN;CLEVIS
|
|
| 12. |
K1019716
|
[4] |
SPACER
|
|
| 13. |
S180333H
|
[2] |
PIN
|
|
| 14. |
S5100503
|
[2] |
WASHER
|
|
| 15. |
DS1003005
|
[1] |
SPRING;GAS
|
|
| 16. |
K1021131
|
[2] |
SPRING;GAS
|
|
| 17. |
K1021926
|
[1] |
LOCK;BOOM
|
|
| 18. |
K1020813
|
[1] |
PLATE;LH
|
|
| 19. |
K1020814
|
[1] |
PLATE;RH
|
|
| 2. |
K1021077
|
[1] |
DOOR ASS'Y;FRONT
|
|
| 20. |
S0511863
|
[10] |
BOLT M10X1.5X25
|
|
| 21. |
S4012633
|
[10] |
NUT
|
|
| 22. |
S5000613
|
[20] |
WASHER
|
|
| 23. |
K1019748
|
[178] |
STRIP
|
|
| 3. |
K1020875
|
[1] |
SIDE PANEL ASS'Y (L.H)
|
|
| 3-1. |
K1020902
|
[1] |
PANEL;SIDE(LH)
|
|
| 3-2. |
K1020904
|
[1] |
CHASSIS(L.H)
|
|
| 3-3. |
K1019056
|
[252] |
HOUSING;RUBBER
|
|
| 3-4. |
K1020906
|
[249] |
STRIP
|
|
| 3-5. |
K1020881
|
[1] |
GLASS
|
|
| 3-6. |
K1020882
|
[1] |
GLASS
|
|
| 3-7. |
K1020883
|
[1] |
HANDLE
|
|
| 3-8. |
K1020884
|
[1] |
HOLDER
|
|
| 3-9. |
K1020885
|
[1] |
BRUSH
|
|
| 4. |
K1020876
|
[1] |
SIDE PANEL ASS'Y (R.H)
|
|
| 4-1. |
K1020903
|
[1] |
PANEL;SIDE(RH)
|
|
| 4-2. |
K1020905
|
[1] |
CHASSIS(R.H)
|
|
| 4-3. |
K1019056
|
[252] |
HOUSING;RUBBER
|
|
| 4-4. |
K1020906
|
[249] |
STRIP
|
|
| 4-5. |
K1020881
|
[1] |
GLASS
|
|
| 4-6. |
K1020882
|
[1] |
GLASS
|
|
| 4-7. |
K1020883
|
[1] |
HANDLE
|
|
| 4-8. |
K1020884
|
[1] |
HOLDER
|
|
| 4-9. |
K1020885
|
[1] |
BRUSH
|
|
| 5. |
K1020899
|
[1] |
PLATE;LOWER
|
K1020899A
|
| 5. |
K1020899A
|
[1] |
PLATE;LOWER
|
|
| 6. |
K1021165
|
[2] |
PLATE;SIDE
|
|
| 7. |
S0508663
|
[36] |
BOLT
|
|
| 8. |
K1023146
|
[70] |
WASHER;HARDENED
|
|
| 9. |
S4012533
|
[34] |
NUT
|
|
