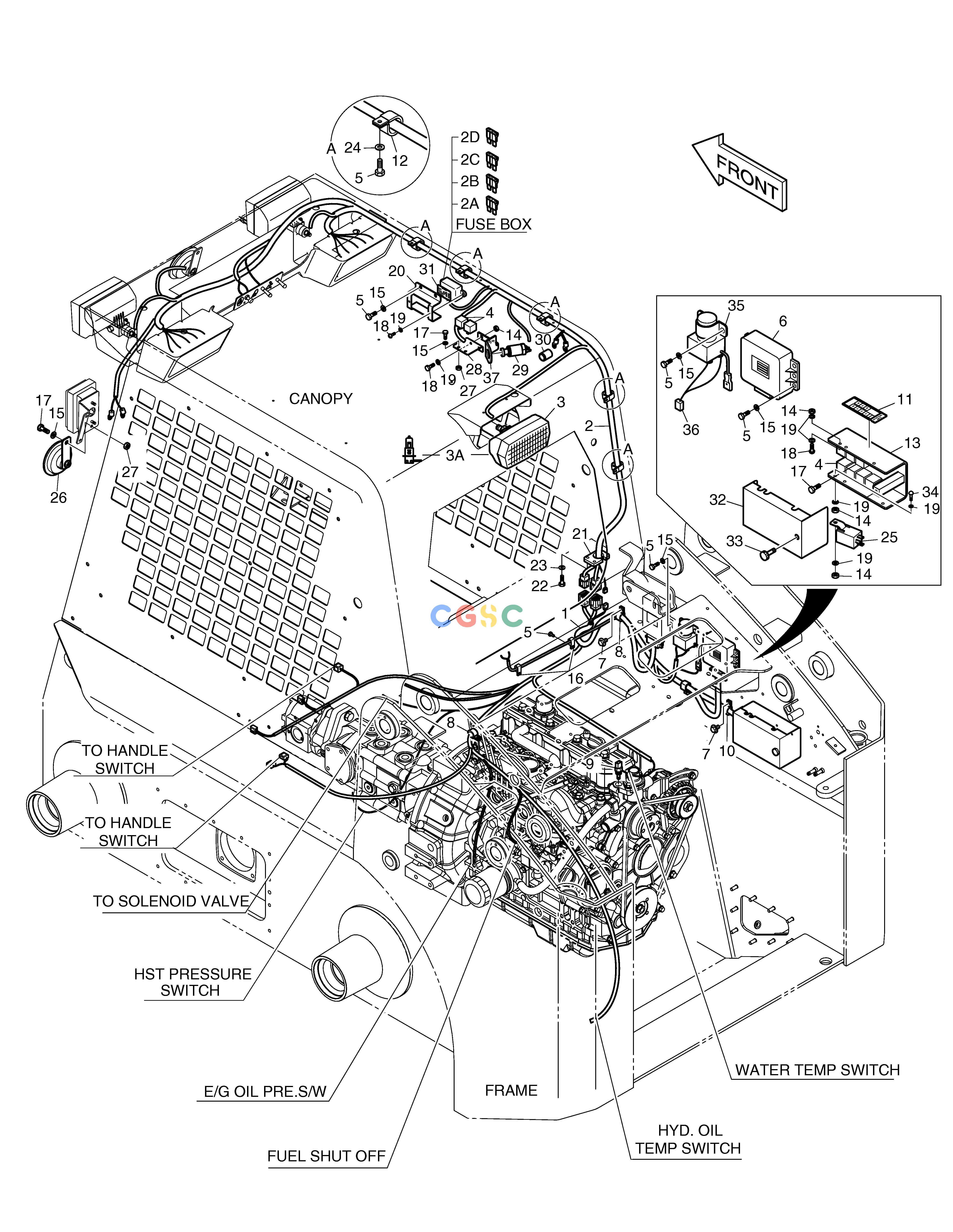

斗山零件查询ELECTRIC WIRING-ITALY 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021177
|
[-] |
ELECTRIC WIRING
|
|
| 1. |
K1022067
|
[1] |
HARNESS;E/G
|
|
| 10. |
K1020101
|
[1] |
CLIP
|
|
| 11. |
K1020755
|
[1] |
PLATE;NAME
|
|
| 12. |
K1022975
|
[3] |
CLIP
|
|
| 13. |
K1021219
|
[1] |
BRACKET;COVER
|
|
| 14. |
S4016241
|
[7] |
NUT
|
|
| 15. |
K1023156
|
[8] |
WASHER
|
|
| 16. |
K1022974
|
[2] |
CLIP
|
|
| 17. |
S0504663
|
[3] |
BOLT
|
|
| 18. |
S3450853
|
[7] |
SCREW
|
|
| 19. |
S5000213
|
[13] |
. WASHER
|
|
| 2. |
K1021865
|
[1] |
HARNESS;CANOPY
|
|
| 20. |
K1021017
|
[1] |
BRACKET
|
|
| 21. |
K1021029
|
[1] |
PLATE;HOUSING
|
|
| 22. |
S0508863
|
[2] |
BOLT;M8X20
|
|
| 23. |
K1023146
|
[2] |
WASHER;HARDENED
|
|
| 24. |
K1023157
|
[3] |
WASHER;HARDENED
|
|
| 25. |
2525-1010
|
[1] |
UNIT;BLINKER
|
|
| 26. |
K1022970
|
[1] |
HORN
|
|
| 27. |
S4012333
|
[3] |
NUT
|
|
| 28. |
K1020922
|
[1] |
BRACKET
|
|
| 29. |
K1022898
|
[1] |
CIGAR LIGHTER
|
|
| 2A. |
K1019105
|
[1] |
FUSE 5A
|
|
| 2B. |
K1019052
|
[1] |
FUSE 10A
|
|
| 2C. |
K1022925
|
[4] |
FUSE 15A
|
|
| 2D. |
K1022931
|
[1] |
FUSE 30A
|
|
| 3. |
K1022967
|
[1] |
LAMP
|
|
| 30. |
K1020835
|
[1] |
SOCKET
|
|
| 31. |
K1021179
|
[1] |
FILM;FUSE DIAGRAM
|
|
| 32. |
K1021222
|
[1] |
COVER
|
|
| 33. |
K1019084
|
[1] |
BOLT;KNOB
|
|
| 34. |
S3450863
|
[1] |
SCREW
|
|
| 35. |
K1019410
|
[1] |
RELAY;PREHEAT
|
|
| 36. |
K1019049
|
[1] |
HARNESS
|
|
| 37. |
K1021856
|
[1] |
BRACKET
|
|
| 4. |
K1019698
|
[10] |
RELAY;SEALED
|
|
| 5. |
S0504463
|
[15] |
BOLT
|
|
| 6. |
K1022921
|
[1] |
UNIT;CONTROL
|
|
| 7. |
S0511463
|
[2] |
BOLT
|
|
| 8. |
K1020100
|
[2] |
CLIP
|
|
| 9. |
K1021464
|
[1] |
SWITCH;TEMPERATURE
|
|
