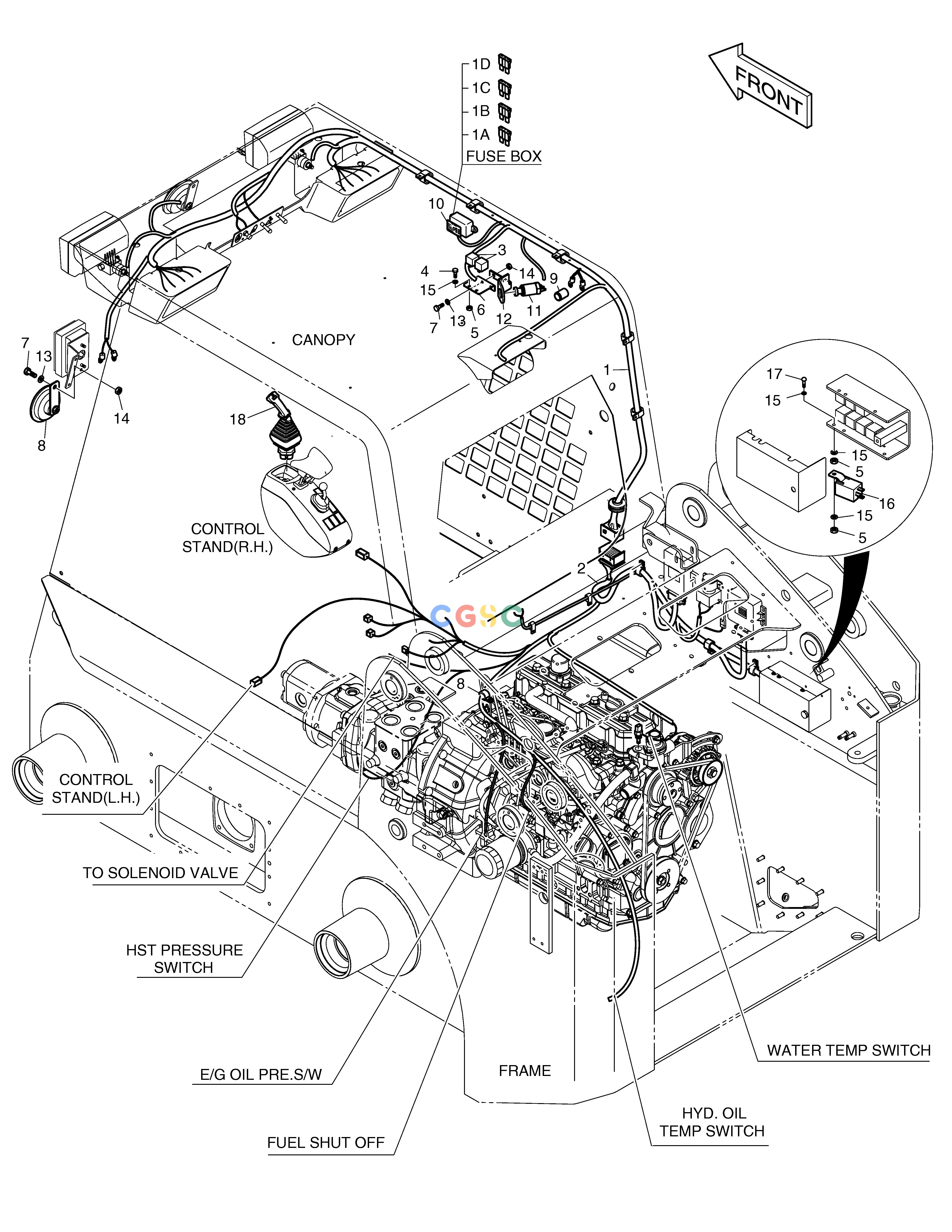

斗山零件查询ELECTRIC WIRING-ITALY(JOYSTICK) 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
579 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022206
|
[-] |
ELECTRIC WIRING
|
|
| 1. |
K1022119
|
[1] |
HARNESS;CANOPY
|
|
| 10. |
K1021179
|
[1] |
FILM;FUSE DIAGRAM
|
|
| 11. |
K1022898
|
[1] |
CIGAR LIGHTER
|
|
| 12. |
K1021856
|
[1] |
BRACKET
|
|
| 13. |
K1023156
|
[3] |
WASHER
|
|
| 14. |
S4012333
|
[3] |
NUT
|
|
| 15. |
S5000213
|
[3] |
. WASHER
|
|
| 16. |
2525-1010
|
[1] |
UNIT;BLINKER
|
|
| 17. |
S3450863
|
[1] |
SCREW
|
|
| 18. |
K1022808
|
[1] |
VALVE;JOYSTICK
|
|
| 1A. |
K1019105
|
[1] |
FUSE 5A
|
|
| 1B. |
K1019052
|
[1] |
FUSE 10A
|
|
| 1C. |
K1022925
|
[4] |
FUSE 15A
|
|
| 1D. |
K1022931
|
[1] |
FUSE 30A
|
|
| 2. |
K1022121
|
[1] |
HARNESS;E/G
|
|
| 3. |
K1019698
|
[2] |
RELAY;SEALED
|
|
| 4. |
S3450853
|
[1] |
SCREW
|
|
| 5. |
S4016241
|
[3] |
NUT
|
|
| 6. |
K1020922
|
[1] |
BRACKET
|
|
| 7. |
S0504663
|
[3] |
BOLT
|
|
| 8. |
K1022970
|
[1] |
HORN
|
|
| 9. |
K1020835
|
[1] |
SOCKET
|
|
