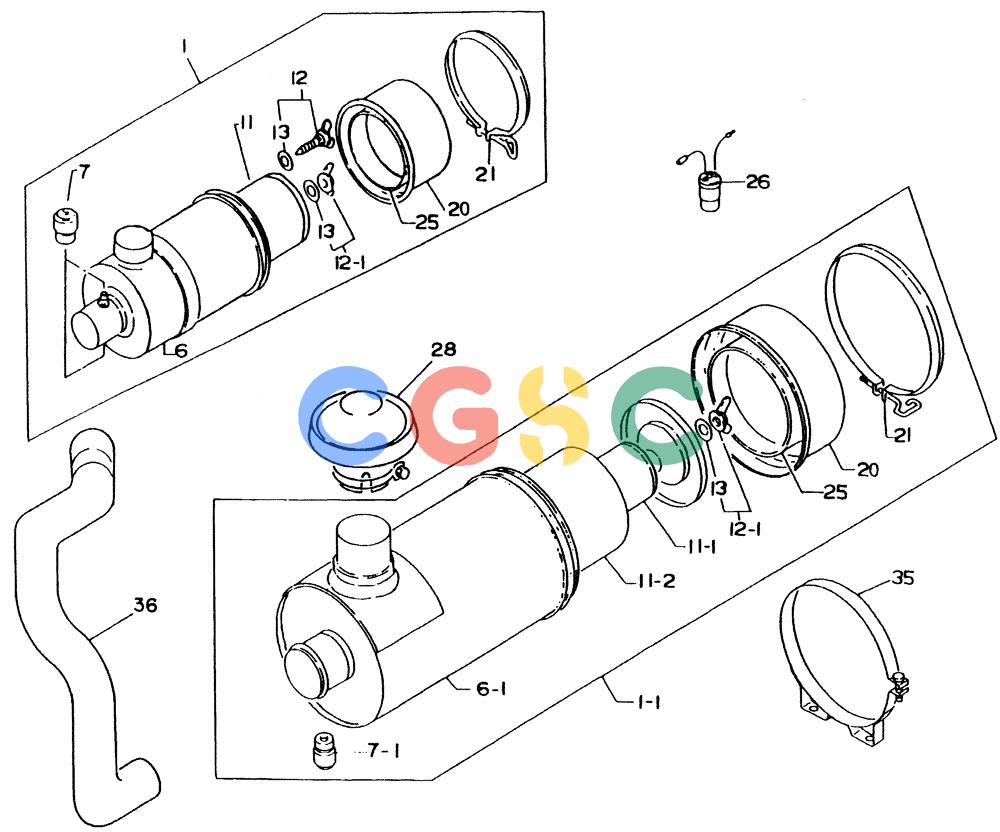

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-025) - AIR CLEANER & OTHER PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941521130 | [1] | CLEANER ASM.AIR | |
| 1-1. | VI9142106540 | [1] | CLEANER ASM.AIR,8 INCH | |
| 1. | VI9142106731 | [1] | CLEANER ASM.AIR,6 INCH | |
| 6. | VI8941591500 | [1] | BODY ASM.AIR CLEANER | |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONBODY ASM.AIR CLEANER(94-7-) |
| 6-1. | VI9142113160 | [1] | BODY ASM.AIR CLEANER | |
| 7-1. | VI9142192860 | [1] | INDICATOR | |
| 7. | VI1142192120 | [1] | INDICATOR | |
| 7. | VI9142191410 | [1] | INDICATOR | |
| 11. | VI5142150140 | [1] | ELEMENT ASM. | |
| 11. | VI9142151521 | [1] | ELEMENT | KOBASM.(94-7-) Superseded by part number: 9142151521 |
| 11-1. | VI9142151670 | [1] | ELEMENT INNER | |
| 11-2. | VI9142151661 | [1] | ELEMENT OUTER | |
| 12-1. | VI9142170620 | [1] | NUT | KOBASM.W/GASKET Superseded by part number: 1142170030 |
| 12. | VI9142170730 | [1] | BOLT ASM.W/GASKET | |
| 13. | VI9142191770 | [2] | WASHER GASKET | |
| 20. | VI8941591510 | [1] | PAN ASM.DUST | |
| 20. | VI9142120970 | [1] | PAN ASM.DUST | |
| 20. | VI9142121310 | [1] | PAN ASM.DUST (94-7-) | |
| 21. | VI5142170040 | [1] | CLAMP ASM. | |
| 21. | VI9142170740 | [1] | CLAMP ASM.(94-7-) | |
| 21. | VI9142170610 | [1] | CLAMP ASM. | |
| 25. | VI5142190190 | [1] | BAFFLE ASM. | |
| 25. | VI9142191450 | [1] | BAFFLE | KOBASH. Superseded by part number: VI1142300470 |
| 25. | VI9142192030 | [1] | BAFFLE ASM.(94-7-) | |
| 26. | VI1815300050 | [1] | INDICATOR SERVICE(94-6) | |
| 28. | VI8941512880 | [1] | CAP ASM.AIR CLEANER | |
| 28. | VI8941512890 | [1] | CAP ASM.AIR CLEANER | |
| 35. | VI9142176020 | [2] | BAND AIR CLEANER | |
| 35. | VI8943651280 | [2] | BAND AIR CLEANER | |
| 35. | VI5142340590 | [2] | BAND AIR CLEANER | |
| 35. | VI5142340450 | [2] | BAND AIR CLEANER(94-7-) | |
