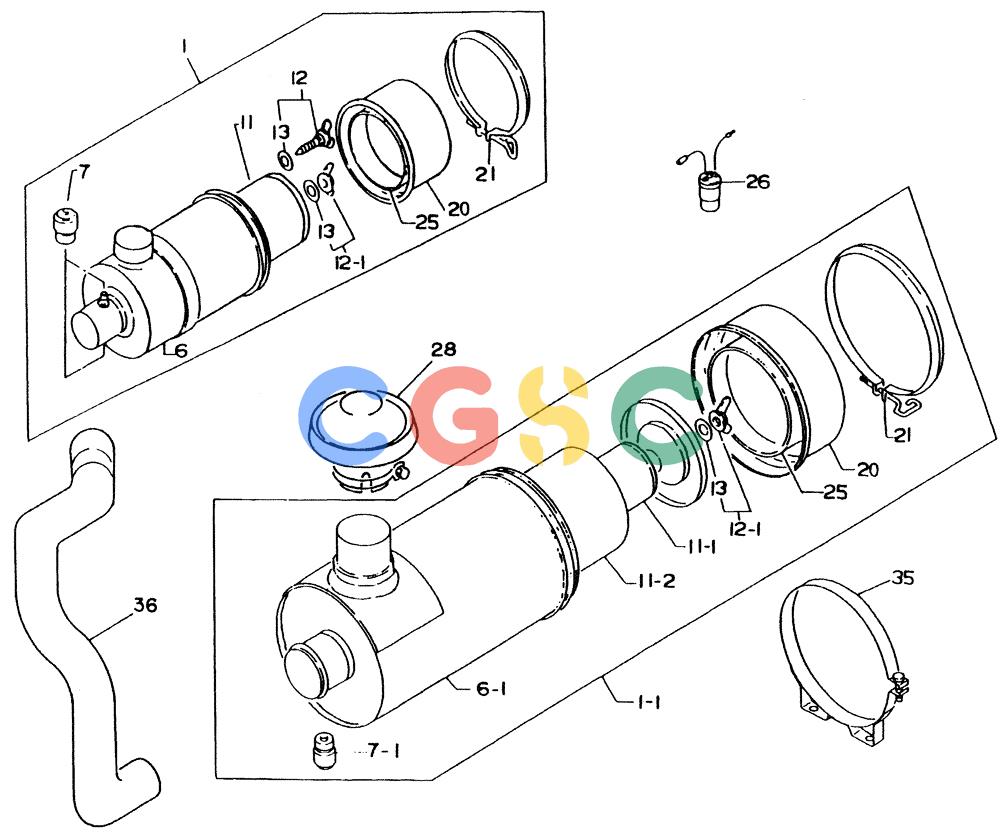

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-026) - AIR CLEANER & OTHER PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
955 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI9142106731 | [1] | AIR CLEANER ASM | |
| 1. | VI8941521130 | [1] | CLEANER ASM.;AIR | |
| 6. | VI8941591500 | [1] | BODY ASM.;AIR CLEANER | |
| 7. | VI9142191410 | [1] | INDICATOR | |
| 7. | VI1142192120 | [1] | INDICATOR | |
| 11. | VI9142151521 | [1] | ELEMENT | KOB;air cleaner Superseded by part number: 9142151521 |
| 11. | VI5142150140 | [1] | ELEMENT ASM. | |
| 12. | VI9142170730 | [1] | BOLT ASM;W/GASKET WASH | |
| 12-1. | VI9142170620 | [1] | NUT | KOBASM.;W/GASKET Superseded by part number: 1142170030 |
| 13. | VI9142191770 | [1] | GASKET;WASHER | |
| 20. | VI9142121310 | [1] | PAN ASM;DUST | |
| 20. | VI8941591510 | [1] | PAN ASM.;DUST | |
| 21. | VI9142170740 | [1] | CLAMP ASM | |
| 21. | VI5142170040 | [1] | CLAMP ASM. | |
| 25. | VI9142192030 | [1] | BAFFLE ASM;W/FIXING BOLT | |
| 25. | VI5142190190 | [1] | BAFFLE ASM. | |
| 28. | VI8944573440 | [1] | CAP;AIR CLEANER | |
| 35. | VI5142340450 | [2] | BAND;AIR CLEANER | |
| 36. | VI1214373241 | [1] | HOSE;AIR CLEANER | |
