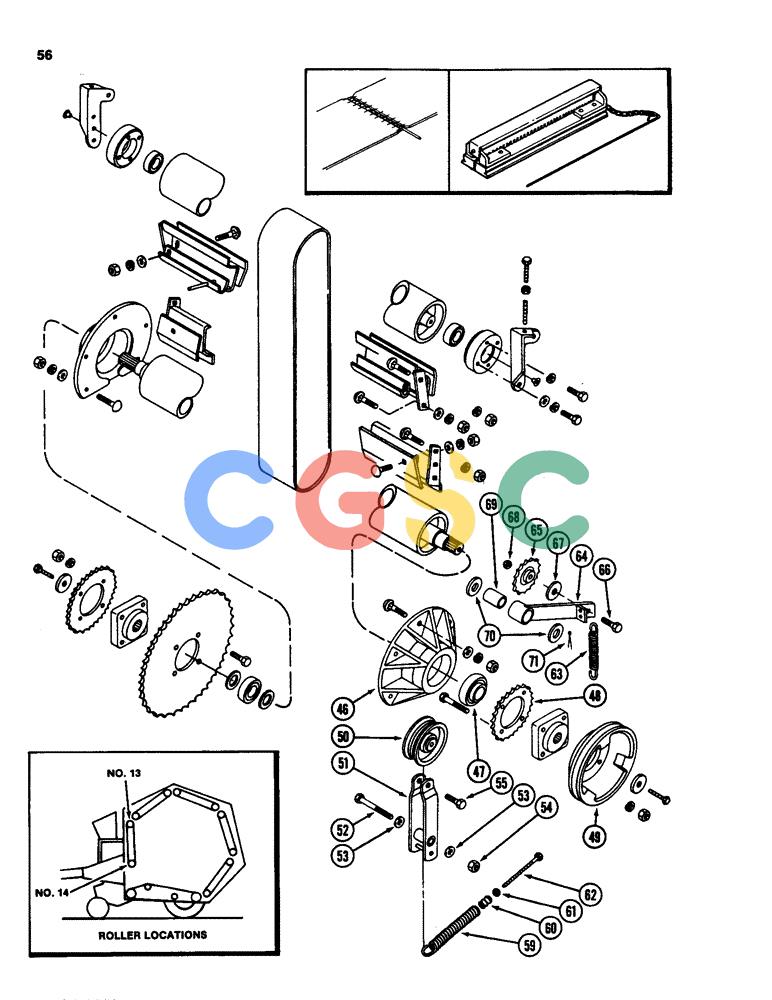

| 46. |
ZA104841
|
[1] |
HOUSING
|
IH
- bearing
|
| 47. |
96328C1
|
[1] |
BALL BEARING,40mm ID x 80mm OD x 22mm W
|
CAS
- ball, 1.57 inch (40 mm) ID
|
| 48. |
ZA104226
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 24 tooth
|
| 49. |
ZA104246
|
[1] |
PULLEY
|
IH
- pickup drive, upper, regular speed, 7-1/4 inch (184 mm) OD (See Note)
|
| 49. |
ZA103001
|
[1] |
PULLEY
|
IH
- pickup drive, upper, high speed, 8-1/2 inch (216 mm) OD (See Note)
|
| 51. |
ZA104215
|
[1] |
ARM
|
IH
- idler pulley
|
| 52. |
180193
|
[1] |
BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5
|
IH
- hex, 1/2 NC x 3-3/4 inch Superseded by part number: 113-450
|
| 53. |
25637R1
|
[2] |
WASHER
|
IH
- flat, hardened Superseded by part number: 86624188
|
| 54. |
9413956
|
[1] |
LOCK NUT,1/2"-13, GB
|
IH
NUT - hex lock, 1/2 inch NC Superseded by part number: 231-4138
|
| 55. |
180183
|
[1] |
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
|
IH
- hex, 1/2 NC x 2-1/4 inch Superseded by part number: 113-441
|
| 59. |
ZA271276
|
[1] |
SPRING
|
IH
- extension
|
| 60. |
ZA201085
|
[1] |
INSERT
|
IH
- spring
|
| 61. |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 62. |
750832R1
|
[1] |
BOLT
|
IH
- hex, 1/2 NC x 4-1/2 inch
|
| 63. |
ZA103192
|
[1] |
SPRING
|
IH
- extension
|
| 64. |
ZA103344
|
[1] |
BRACKET
|
IH
ARM - tightener
|
| 65. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
- idler
|
| 66. |
413-1036
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
|
CAS
- hex, 5/8 NC x 2-1/4 inch Superseded by part number: 88556
|
| 67. |
23836R1
|
[4] |
WASHER
|
IH
- flat, 21/32 x 1-3/8 x 7/64 inch (17 x 35 x 3 mm) Superseded by part number: 5122064
|
| 68. |
9413960
|
[1] |
LOCK NUT,5/8"-11, GB
|
IH
NUT - hex lock, 5/8 inch NC Superseded by part number: 85700693
|
| 69. |
ZA103341
|
[1] |
BUSHING
|
IH
- arm
|
| 70. |
446257
|
[2] |
WASHER,3/4" x 1 3/4" x .148"
|
IH
- flat, 13/16 x 1-3/4 x 1/8 inch (21 x 44 x 3 mm) Superseded by part number: 495-31081
|
| 71. |
432-1220
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Pin, Split (Cotter), 3/16" x 1 1/4" Superseded by part number: 87398
|
