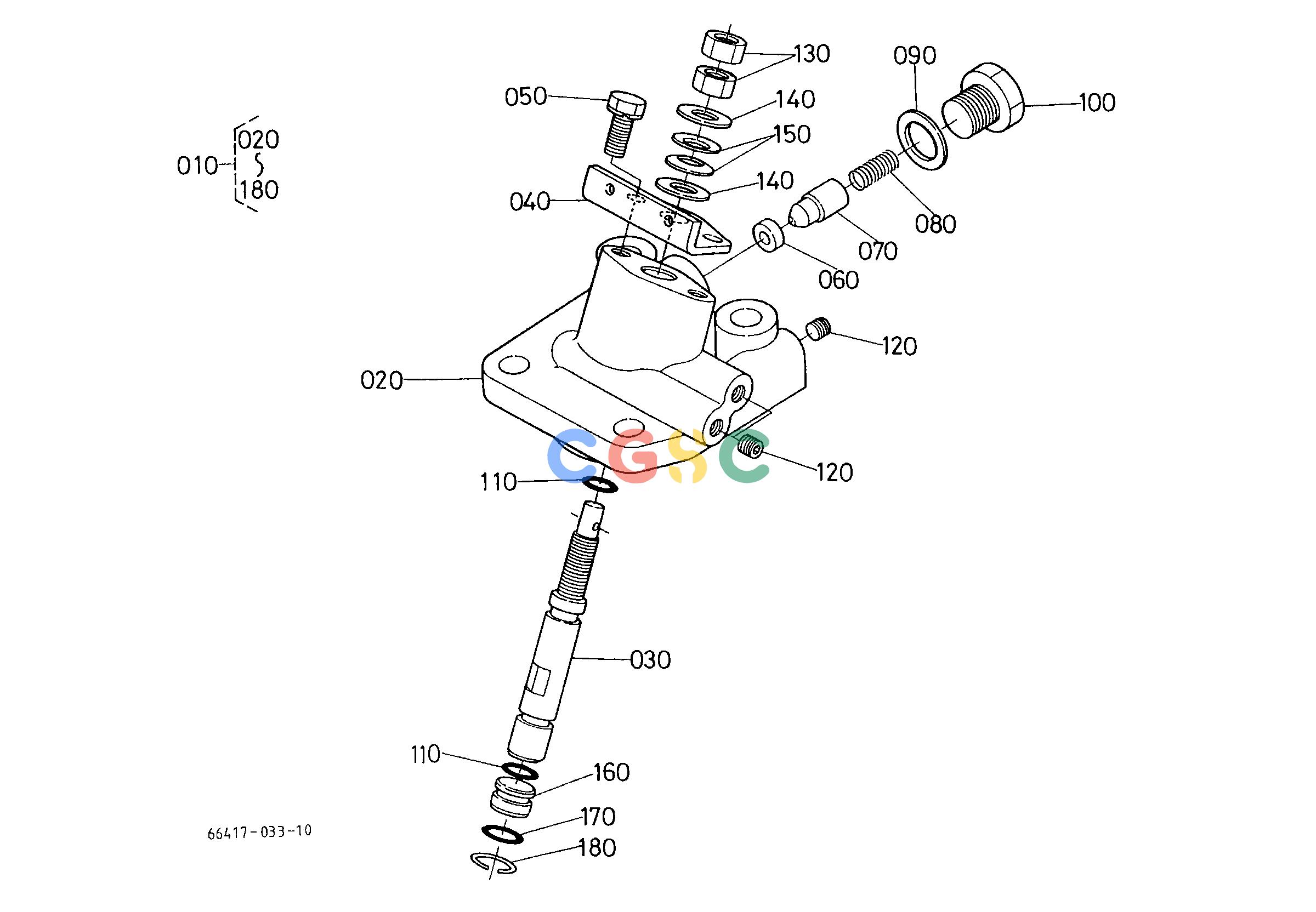

久保田零件查询T10101 HYD.CYLINDER CAP [COMPONENT PARTS] ## S.No.:B1550E;<=10390, B1550D;<=52016, B1750E;<=10346, B1750D;<=52277 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641636400
|
[1] |
ASSY CAP CYLINDER
|
3.6520(lbs); 1.660
|
| 020. |
6641636410
|
[1] |
CAP CYLINDER
|
3.3000(lbs); 1.500
|
| 020. |
6641636413
|
[1] |
CAP CYLINDER
|
3.1680(lbs); 1.440
|
| 030. |
6641636810
|
[1] |
ROTOR
|
0.1980(lbs); 0.090
|
| 030. |
6641636813
|
[1] |
ROTOR
|
0.1540(lbs); 0.070
|
| 040. |
6641636820
|
[1] |
PLATE
|
0.1100(lbs); 0.050
|
| 050. |
0112350814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 060. |
6641636830
|
[1] |
SEAT CHECK VALVE
|
0.0066(lbs); 0.003
|
| 070. |
6641636840
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 080. |
6641636850
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 090. |
0472400160
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 100. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 110. |
0481106100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
6641636860
|
[3] |
PLUG SCREW
|
0.0022(lbs); 0.001
|
| 130. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 140. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 150. |
6641636870
|
[2] |
SPRING PLATE
|
0.0022(lbs); 0.001
|
| 160. |
6641636880
|
[1] |
COVER
|
0.0440(lbs); 0.020
|
| 170. |
0481000120
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 180. |
6641636890
|
[1] |
RING
|
0.0022(lbs); 0.001
|
