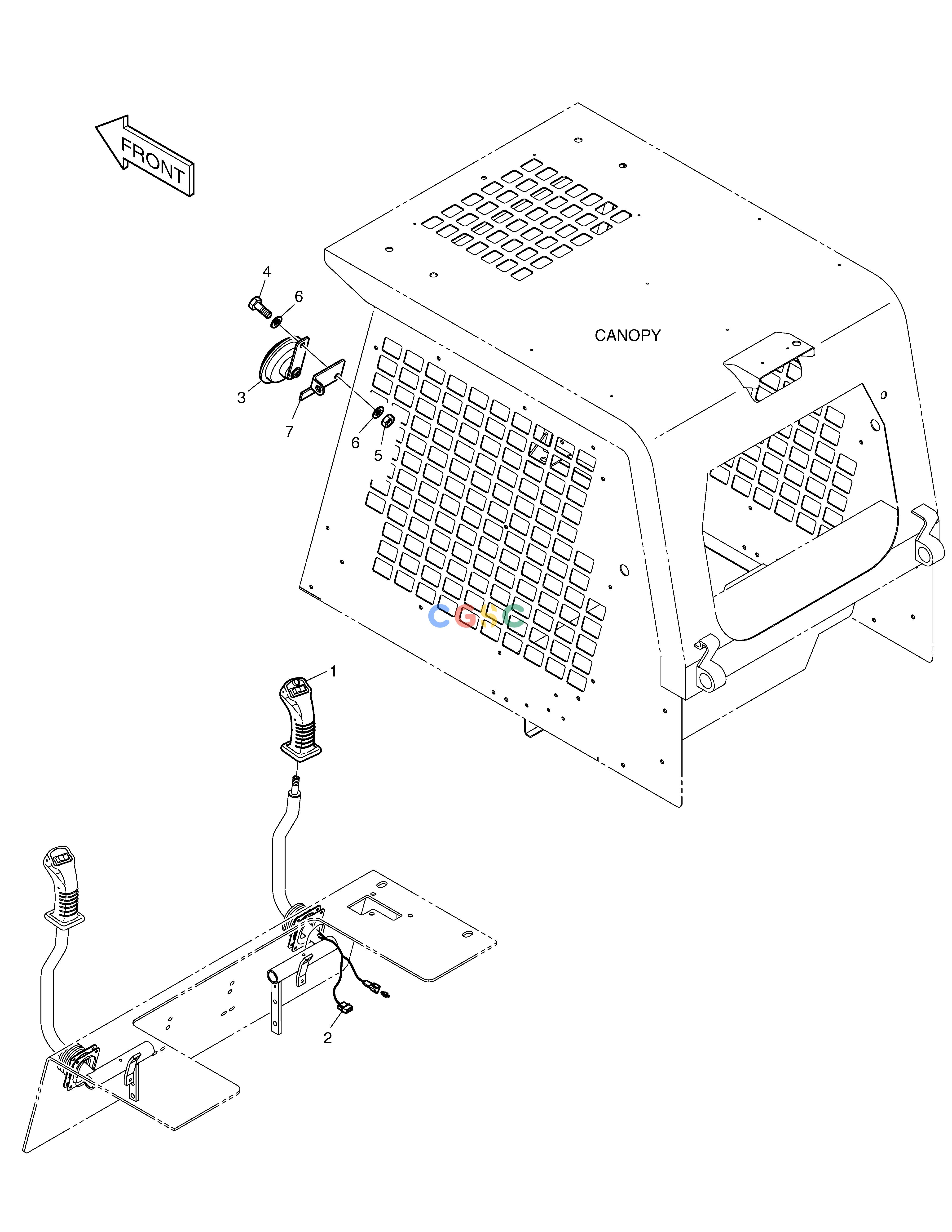

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020805 | [-] | HORN | |
| 1. | K1021940 | [1] | HANDLE (R.H) | |
| 2. | K1022963 | [1] | HOUSING;PIN | |
| 3. | K1022970 | [1] | HORN | |
| 4. | S0508663 | [1] | BOLT | |
| 5. | S4016533 | [1] | NUT | |
| 6. | S5000513 | [1] | . WASHER;PLAIN | |
| 7. | K1020911 | [1] | BRACKET |
