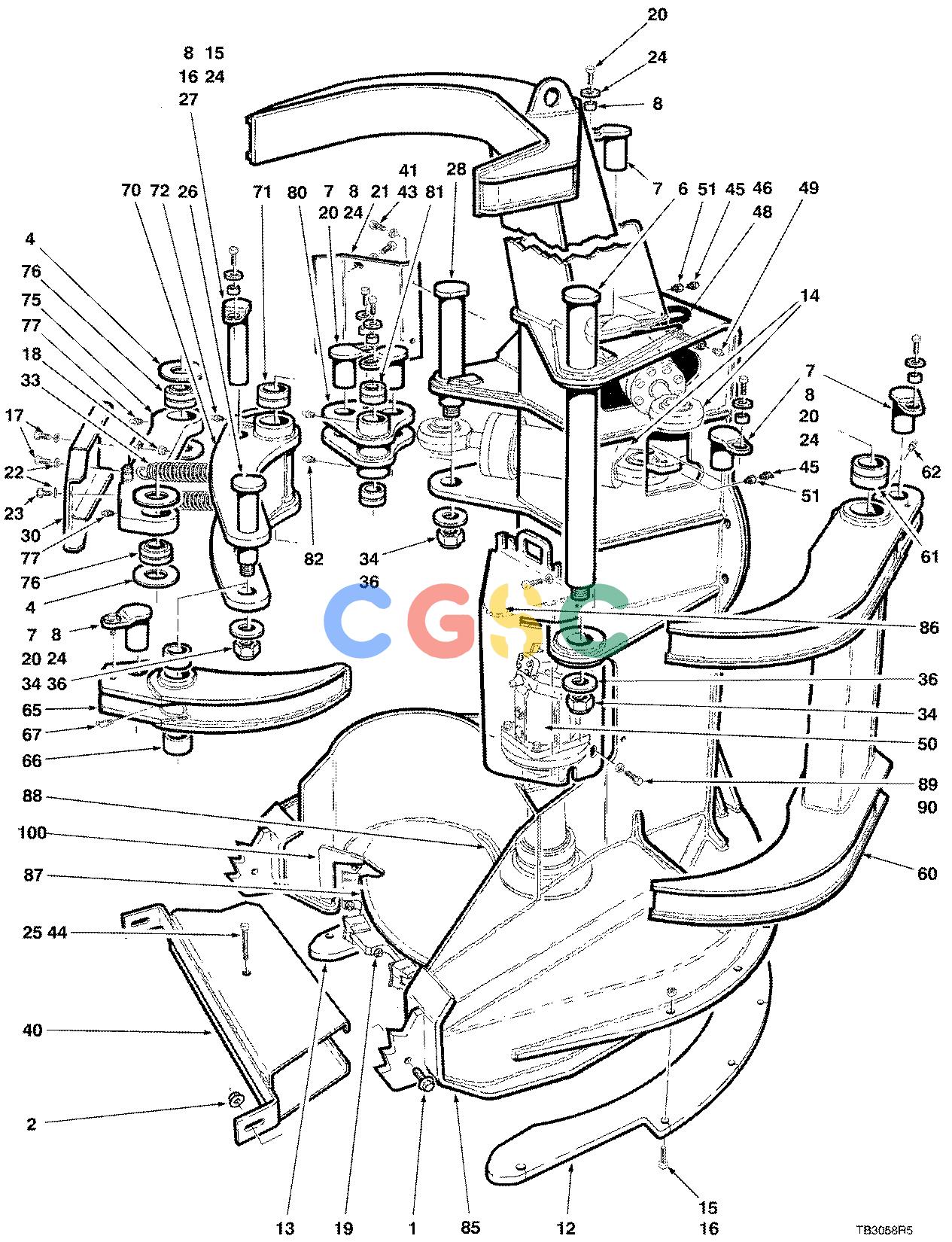

约翰迪尔零件查询18``STT - ATTACHMENTS SAW GUARD 18`` HEAD ( 601030 - ) 4534-018/10 [4534-018/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
700779800
|
[1] |
FELLING HEAD -
|
|
| 1. |
811939900
|
[2] |
BOLT .50-13UNCX2.00 -
|
|
| 2. |
811891900
|
[2] |
NUT -
|
|
| 4. |
700056900
|
[4] |
SHIM - 10 GA
|
|
| 6. |
700769400
|
[1] |
PIN -
|
|
| 7. |
700055000
|
[6] |
PIN -
|
|
| 8. |
700041400
|
[7] |
SPACER -
|
|
| 12. |
700862600
|
[1] |
PLATE-GUARD -
|
|
| 13. |
F287185
|
[1] |
PLATE-GUARD -
|
|
| 14. |
-------
|
[2] |
CYLINDER - CLAMP
|
|
| 15. |
810084500
|
[13] |
BOLT 3/4-10UNCX2-1/4 -
|
|
| 16. |
810044600
|
[13] |
LOCKNUT 3/4-10UNC -
|
|
| 17. |
810083500
|
[2] |
BOLT 5/8-11UNCX2 -
|
|
| 18. |
810464900
|
[2] |
LOCKNUT 5/8-11UNC -
|
|
| 19. |
-------
|
[1] |
DISC BLADE
|
|
| 20. |
810084200
|
[6] |
BOLT 3/4-10UNCX1-1/2 -
|
|
| 21. |
700346900
|
[1] |
PLATE -
|
|
| 22. |
810000500
|
[3] |
WASHER 5/8 -
|
|
| 23. |
810083200
|
[1] |
BOLT 5/8-11UNCX1-1/4 -
|
|
| 24. |
810002100
|
[7] |
WASHER 3/4 -
|
|
| 25. |
810133800
|
[1] |
NUT 3/4-10UNC -
|
|
| 26. |
700771800
|
[1] |
PIN -
|
|
| 27. |
700054800
|
[1] |
PIN -
|
|
| 28. |
700771500
|
[1] |
PIN -
|
|
| 30. |
700380700
|
[1] |
PLATE -
|
|
| 33. |
700061100
|
[2] |
SPRING -
|
|
| 34. |
811216700
|
[3] |
NUT 1-3/8-12UNC -
|
|
| 36. |
700772000
|
[3] |
WASHER -
|
|
| 40. |
700268600
|
[1] |
GUARD -
|
|
| 41. |
810082200
|
[4] |
BOLT 1/2-13UNCX1-1/4 -
|
|
| 43. |
810011600
|
[4] |
WASHER 1/2 -
|
|
| 44. |
810868900
|
[1] |
BOLT 3/4-10UNC 6 -
|
|
| 45. |
810104100
|
[2] |
GREASE FITTING - 45 DEG. - FROM 970367
|
|
| 46. |
810892900
|
[2] |
HOSE - UP TO 970366
|
|
| 48. |
810280700
|
[4] |
FITT 1/8NPTFX7/16-20 - UP TO 970366
|
|
| 49. |
810000100
|
[2] |
GREASE FITTING.N610 - UP TO 970366
|
|
| 50. |
-------
|
[1] |
DISC SAW DRIVE
|
|
| 51. |
810422600
|
[2] |
FITTING -
|
|
| 60. |
700768100
|
[1] |
ARM -
|
|
| 61. |
700766800
|
[2] |
BUSHING -
|
|
| 62. |
810000100
|
[2] |
GREASE FITTING.N610 -
|
|
| 65. |
F289630
|
[1] |
ARM -
|
|
| 66. |
700052300
|
[2] |
BUSHING -
|
|
| 67. |
810044000
|
[1] |
GREASE FIT 1/8-27PTF -
|
|
| 70. |
700372000
|
[1] |
ARM -
|
|
| 71. |
700056100
|
[2] |
BUSHING -
|
|
| 72. |
810000100
|
[2] |
GREASE FITTING.N610 -
|
|
| 75. |
700051500
|
[1] |
LINK -
|
|
| 76. |
810106700
|
[2] |
BUSHING -
|
|
| 77. |
810000100
|
[2] |
GREASE FITTING.N610 -
|
|
| 80. |
700051100
|
[1] |
CRANK -
|
|
| 81. |
700051400
|
[2] |
BUSHING -
|
|
| 82. |
810000100
|
[2] |
GREASE FITTING.N610 -
|
|
| 85. |
700777100
|
[1] |
FELLING HEAD -
|
|
| 86. |
700762500
|
[1] |
GUARD -
|
|
| 87. |
700381300
|
[1] |
PLATE -
|
|
| 88. |
700036200
|
[1] |
BAR -
|
|
| 89. |
810082300
|
[6] |
BOLT 1/2-13UNCX1-1/2 -
|
|
| 90. |
810011600
|
[6] |
WASHER 1/2 -
|
|
| 100. |
F287103
|
[1] |
PLATE -
|
|
