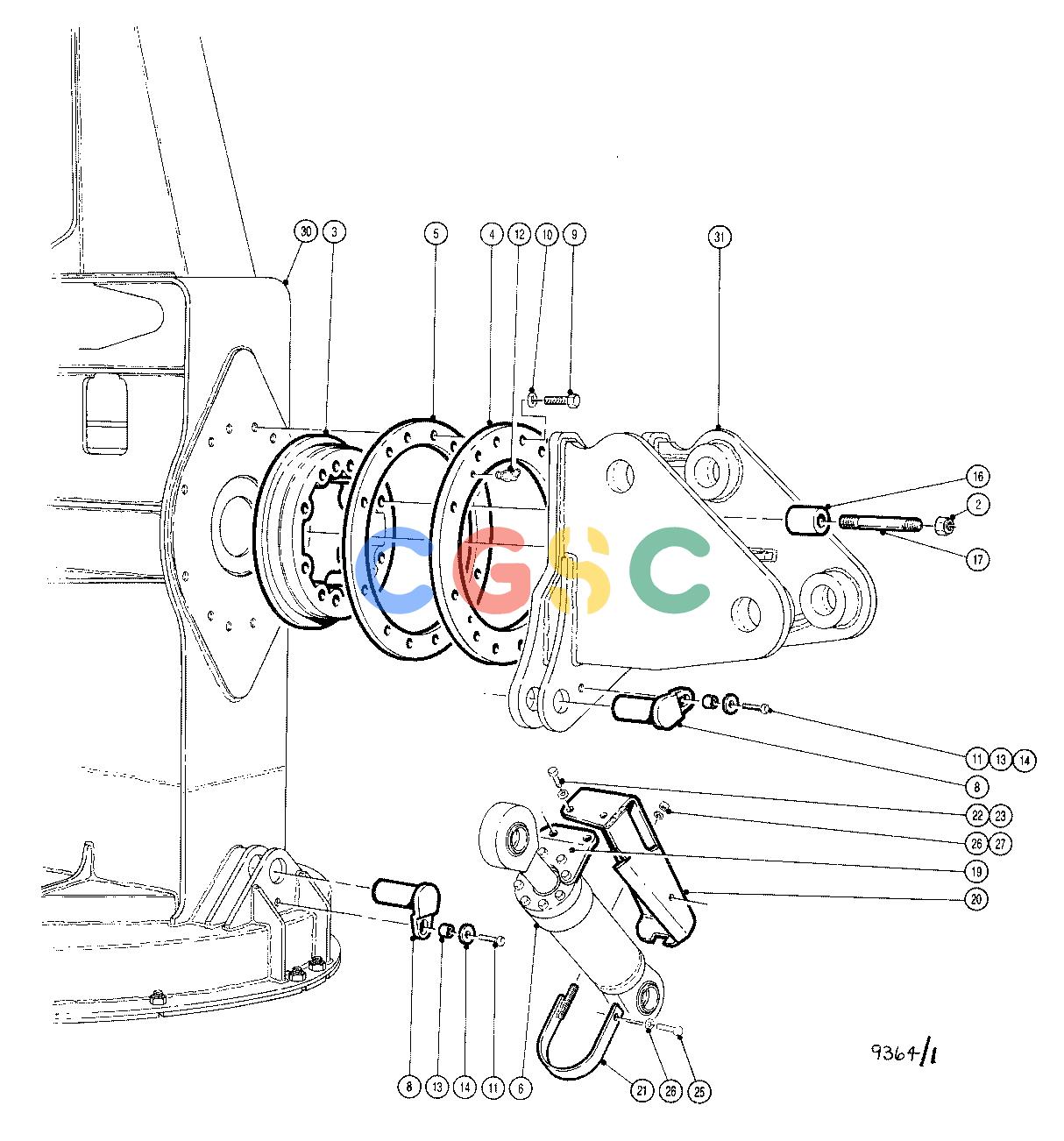

约翰迪尔零件查询18``STT - ATTACHMENTS WRIST ASSEMBLY 18`` HEAD ( 601030 - ) 4542-019/10 [4542-019/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
700627000
|
[1] |
WRIST GROUP
|
|
| 2. |
811216600
|
[12] |
NUT 1-14UNC
|
|
| 3. |
700059200
|
[1] |
Bearing
|
|
| 4. |
700059300
|
[1] |
Retainer
|
|
| 5. |
700000900
|
[1] |
Plate
|
|
| 6. |
-------
|
[1] |
CYLINDER - WRIST
|
|
| 8. |
700060900
|
[2] |
Pin
|
|
| 9. |
810085700
|
[12] |
BOLT 7/8-9UNC 3
|
|
| 10. |
810183200
|
[12] |
WASHER 7/8
|
|
| 11. |
810084200
|
[2] |
BOLT 3/4-10UNCX1-1/2
|
|
| 12. |
810044000
|
[4] |
GREASE FIT 1/8-27PTF
|
|
| 13. |
700041400
|
[2] |
Spacer
|
|
| 14. |
810002100
|
[2] |
WASHER 3/4
|
|
| 16. |
700070000
|
[12] |
Spacer
|
|
| 17. |
700070100
|
[12] |
Stud
|
|
| 19. |
701494100
|
[1] |
Plate
|
|
| 20. |
700084000
|
[1] |
Guard
|
|
| 21. |
700364900
|
[1] |
Clamp
|
|
| 22. |
810080100
|
[2] |
BOLT 3/8-16UNCX1
|
|
| 23. |
810309800
|
[2] |
WASHER 3/8
|
|
| 25. |
810082200
|
[1] |
BOLT 1/2-13UNCX1-1/4
|
|
| 26. |
810011600
|
[2] |
WASHER 1/2
|
|
| 27. |
810669400
|
[1] |
LOCKNUT 1/2-13UNC
|
|
| 30. |
-------
|
[REF.] |
FELLING HEAD, 18``
|
|
| 31. |
-------
|
[REF.] |
BOOM ADAPTER
|
|
