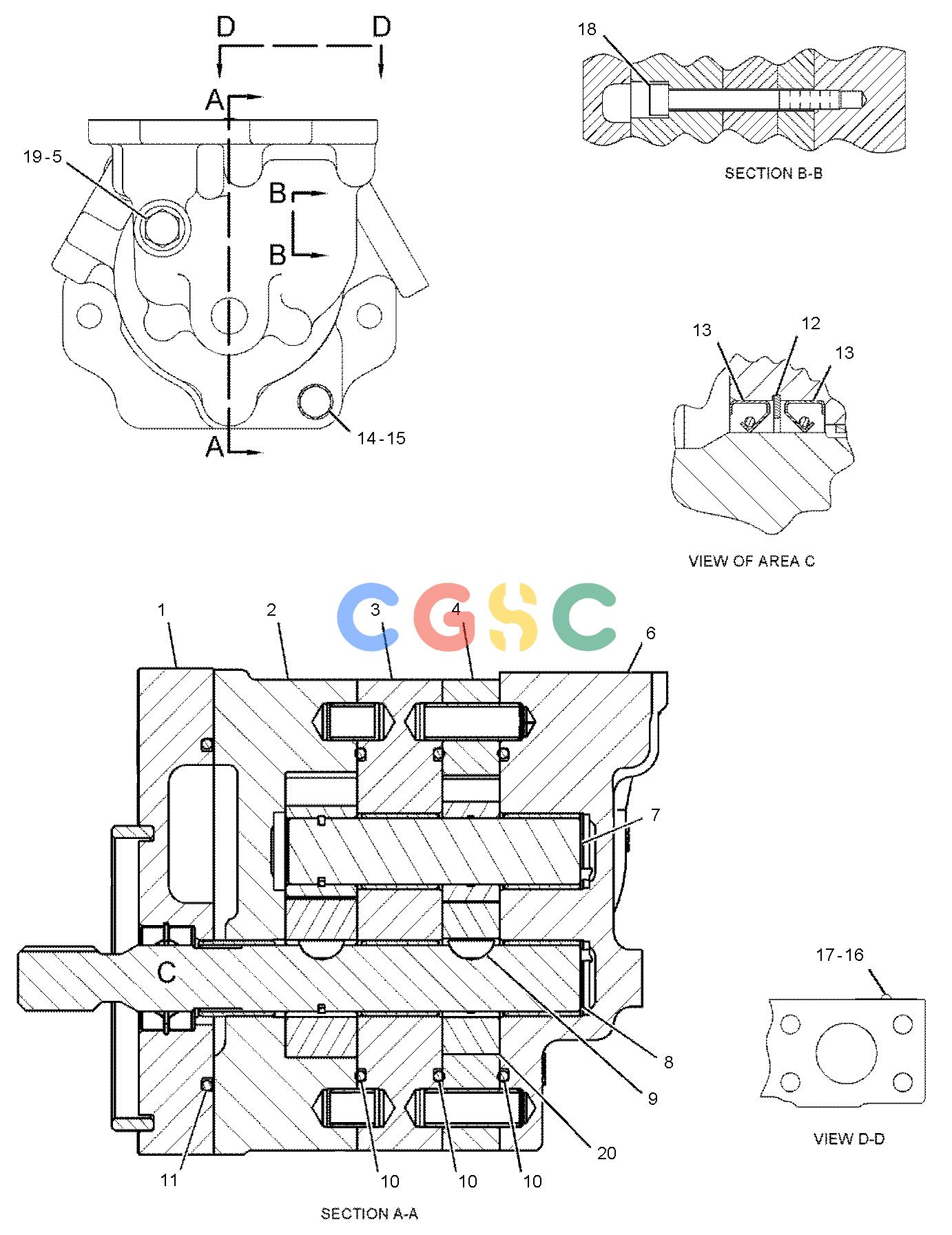

卡特零件查询（725） 191-6114: PUMP GP-GEAR
广数供应链运营团队, 14 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 151-7469 | [1] | ADAPTER AS | |
| 2. | 173-0656 | [1] | BODY AS-OIL PUMP | |
| | 2S-7931 | [1] | BEARING | |
| | 8M-8489 | [2] | DOWEL | |
| 3. | 151-7465 | [1] | COVER AS | |
| | 2S-7931 | [2] | BEARING | |
| 4. | 177-7884 | [1] | BODY AS-OIL PUMP | |
| | 1M-3736 | [2] | DOWEL | |
| 5. | 3J-1907 | [1] | SEAL-O-RING | |
| 6. | 191-6110 | [1] | MANIFOLD AS | |
| | 2S-7931 | [2] | BEARING | |
| 7. | 151-7471 | [1] | GEAR AS | |
| 8. | 151-7473 | [1] | GEAR AS | |
| 9. | 1B-8704 | [1] | KEY-WOODRUFF | |
| 10. | 4M-0189 | [3] | SEAL-O-RING | |
| 11. | 4H-9105 | [1] | SEAL-O-RING | |
| 12. | 1L-3768 | [1] | RING-RETAINING | |
| 13. | 7S-3029 | [2] | SEAL-LIP TYPE | |
| 14. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 15. | 3S-0004 | [2] | WASHER(0.406X0.728X0.09-IN THK) | |
| 16. | 7B-3028 | [1] | SCREW-DRIVE(NO 4X 3/16-IN) | |
| 17. | 191-6818 | [1] | PLATE | |
| 18. | 9X-2158M | [4] | BOLT-SOCKET HEAD(M10X1.5X90-MM) | |
| 19. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 20. | 6I-9084 | [2] | GEAR(10-TEETH)(OIL PUMP) | |
| | M | | METRIC PART |
