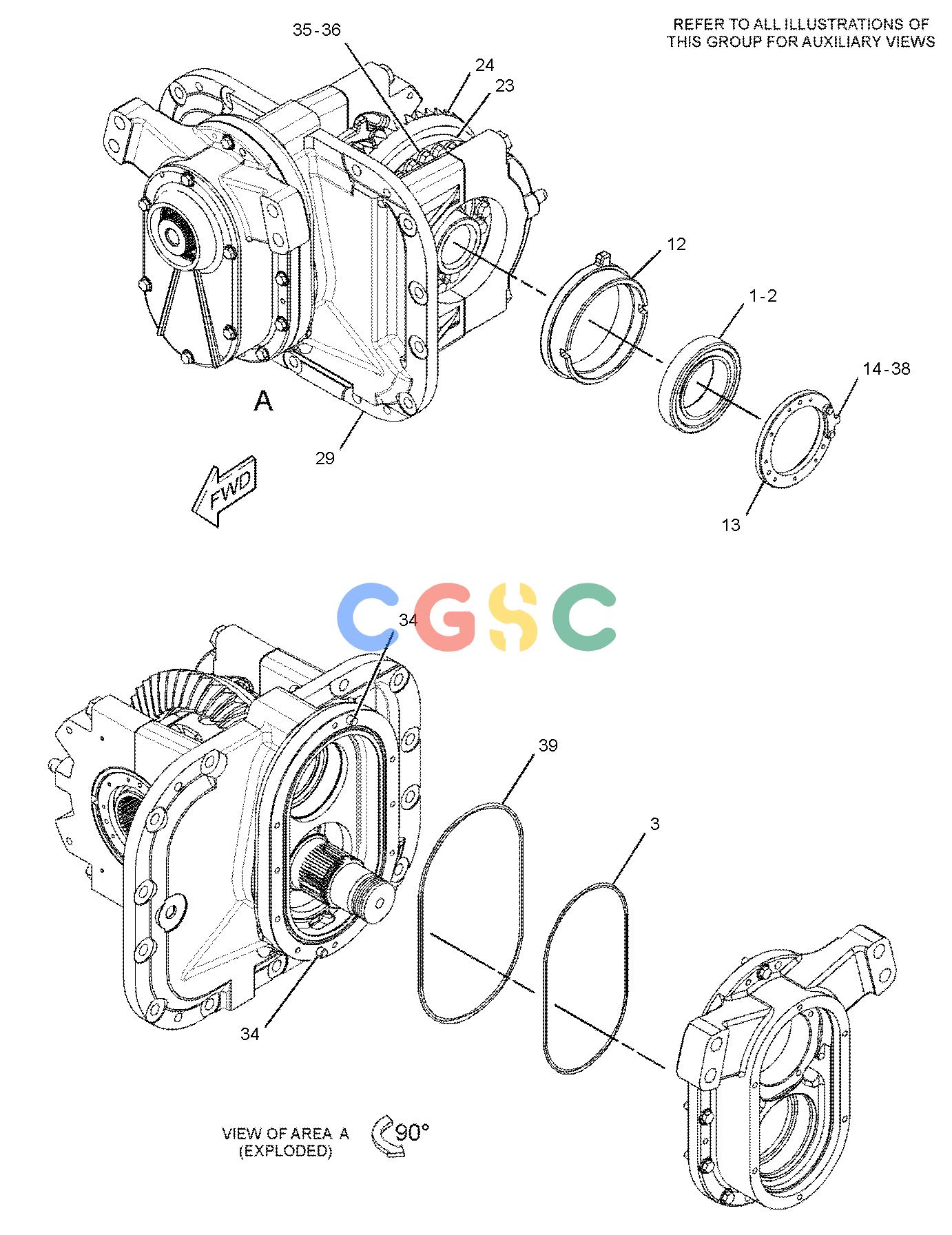

卡特零件查询（725） 371-1063: DIFFERENTIAL & BEVEL GEAR GP
广数供应链运营团队, 14 02月, 2025，浏览：
311 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-4693 | [2] | CUP-BEARING | |
| 2. | 1P-4694 | [2] | CONE-BEARING | |
| 3. | 2D-9572 | [1] | SEAL-O-RING | |
| 4. | 3L-9409 | [1] | CUP-BEARING | |
| 5. | 5L-2031 | [1] | CUP-BEARING | |
| 6. | 5P-9505 | [1] | CONE-BEARING | |
| 7. | 6V-3950 | [1] | CONE-BEARING | |
| 8. | 8H-7801 | [1] | CONE-BEARING | |
| 9. | 8H-7803 | [1] | CUP-BEARING | |
| 10. | 9D-1853 | [2] | RETAINER | |
| 11. | 9D-1854 | [1] | SPACER-SPECIAL(12.7-MM THK) | |
| 12. | 138-1486 | [2] | CAGE-BEARING | |
| 13. | 138-1487 | [2] | RING-ADJUSTMENT | |
| 14. | 138-1488 | [2] | LOCK | |
| 15. | 138-1497 | [1] | CAGE | |
| 16. | 138-1505 | [1] | SPACER-SPECIAL | |
| 17. | 138-4096 | [5] | SHIM(0.05-MM THK) | |
| 18. | 138-4097 | [5] | SHIM(0.08-MM THK) | |
| 19. | 138-4098 | [3] | SHIM(0.12-MM THK) | |
| 20. | 138-4099 | [1] | SHIM(0.5-MM THK) | |
| 21. | 152-5464 | [1] | GEAR(33-TEETH) | |
| 22. | 168-8410 | [1] | GEAR AS(33-TEETH) | |
| 23. | 193-4302Y | [1] | DIFFERENTIAL GP | |
| 24. | 279-4630 | [1] | SET-BEVEL GEAR | |
| 25. | 286-3688 | [1] | LOCKNUT AS | |
| | 5L-4753 | [1] | RING-RETAINING | |
| 26. | 290-4649 | [1] | RETAINER-SEAL | |
| 27. | 293-4503 | [1] | SEAL-LIP TYPE | |
| 28. | 314-9342 | [1] | BEARING AS-TAPERED ROLLER | |
| 29. | 317-3020Y | [1] | CARRIER GP-DIFFERENTIAL(AXLE, CENTER) | |
| 30. | 138-4114 | [4] | SHIM(0.08-MM THK) | |
| 31. | 138-4115 | [5] | SHIM(0.12-MM THK) | |
| 32. | 184-4338 | [1] | SHIM(0.92-MM THK) | |
| 33. | 1J-2860 | [1] | CUP-BEARING | |
| 34. | 1S-2199 | [2] | DOWEL | |
| 35. | 287-8326 | [28] | BOLT(1/2-20X1.625-IN) | |
| 36. | 2M-0849 | [28] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 38. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 39. | 6V-5057 | [1] | SEAL-O-RING | |
| 40. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
