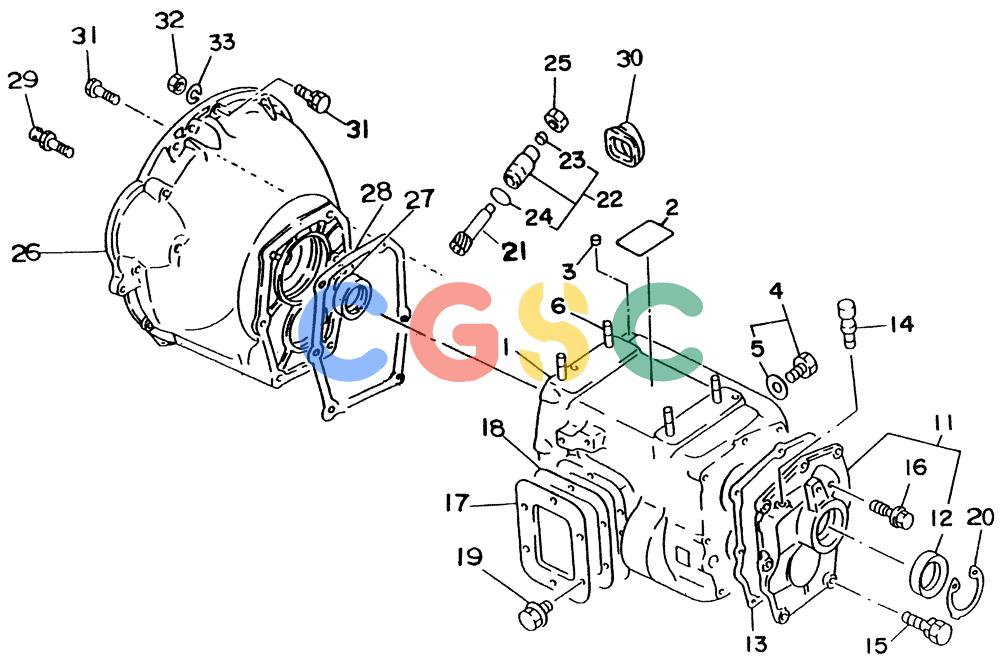

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-040[01]) - TRANSMISSION & CASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8970308504 | [1] | TRANSMISSION ASM,MSB-5S | |
| . . | VI8970111333 | [1] | TRANSMISSION ASM,MSA-5P | |
| . . | VI8970308643 | [1] | TRANSMISSION ASM,MSB-5M | |
| 1. | VI8970720040 | [1] | CASE,TRANSMISSION | |
| 1-1. | VI8943187033 | [1] | CASE,TRANSMISSION | |
| 2. | VI8943402342 | [1] | PLATE,CAUTION,T/M MSA5P | |
| 2. | VI8970840510 | [1] | PLATE,CAUTION. T/M MSB5M | |
| 2. | VI8970769090 | [1] | PLATE,CAUTION. T/M MSB5M | |
| 3. | VI9092013160 | [1] | PLUG,PLATE,M/CASE | |
| 4. | VI8943407181 | [1] | PLUG ASM,SCREW.DRAIN | |
| 4-1. | VI8943407171 | [1] | PLUG ASM,FILLER | |
| 5. | VI8943365110 | [1] | O-RING,DRAIN PLUG | |
| 5-1. | VI8943365110 | [1] | O-RING,FILLER PLUG | |
| 6. | VI9096310040 | [4] | STUD, MISSION ,CASE | |
| 6-1. | VI5093020110 | [4] | STUD, MISSION ,CASE | |
| 7. | VI9081610160 | [2] | PIN,KNOCK | |
| 8. | VI8944599701 | [2] | BOLT,FULCRUM | |
| 11. | VI8970361500 | [1] | COVER,REAR,T/M W/SEAL | |
| 11. | VI8971129861 | [1] | COVER,REAR,T/M W/SEAL(94-4-) | |
| 11-1. | VI8970487440 | [1] | COVER,REAR,T/M WO/SEAL | |
| 11-2. | VI8970933640 | [1] | COVER,REAR,T/M W/SEAL | |
| 12. | VI8970361670 | [1] | SEAL,OIL RR.COVER | |
| 12. | VI8970746510 | [1] | SEAL,OIL,RR.COVER (OR) | |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONPACKING,RR.COVER,(BONO) |
| 14. | VI8943689632 | [1] | BREATHER,RR.COVER | |
| 15. | VI8941287860 | [7] | BOLT,RR.COVER (L=25) | |
| 15. | VI8944823380 | [6] | BOLT,RR.COVER (L=30) | |
| 15. | VI8943187820 | [1] | BOLT,RR.COVER (L=50) | |
| 16. | VI8941287850 | [1] | SCREW,SET, METER GEAR BUSH | |
| 17. | VI9331416012 | [1] | COVER,SIDE,MISSION | |
| 18. | VI9331426010 | [1] | PACKING,SIDE COVER | |
| 19. | VI8941287910 | [6] | BOLT,SIDE COVER FIX. | |
| 20. | VI8944529720 | [1] | SPACER.RR.COVER | |
| 20. | VI8971129950 | [1] | SPACER,RR.COVER(94-4-) | |
| 21. | VI8942490640 | [1] | GEAR,SPEEDOMETER (Z=16) | |
| 22. | VI8970803621 | [1] | BUSH ASM,SPEEDOMETER | |
| 23. | VI8970805070 | [1] | SEAL,OIL.INTERNAL D=16 | |
| 24. | VI9099208520 | [1] | O-RING EXTERNAL | |
| 25. | VI9193190130 | [1] | CAP,GEAR BUSH | |
| 26. | VI8971004890 | [1] | HOUSING,CLUTCH | |
| 26-1. | VI8943104560 | [1] | HOUSING,CLUTCH | |
| 27. | VI8943264410 | [1] | SEAL,OIL,HOUSING | |
| 28. | NSS | [1] | NOT SOLD SEPARAT | CONPACKING,HSG.-CASE,(BOND) |
| 29. | VI5313450021 | [1] | SUPPORT,WITHDRAW LEVER | |
| 30. | VI8970348800 | [1] | COVER,DUST,WITHDRAW | |
| 30-1. | VI8971058540 | [1] | COVER:DUST,WITHDRAW | |
| 31. | VI8942492460 | [6] | BOLT,HOUSING FIX. | |
| 31. | VI0501410400 | [3] | BOLT,HOUSING FIX. | |
| 31. | VI0501410350 | [1] | BOLT | KOBBOLT,HSG.-RR.PLATE Superseded by part number: VI0505410350 |
| 31. | VI0501412400 | [3] | B0LT,HSG.-STIFFENER | |
| 31. | VI0501510350 | [11] | BOLT IF/WHEEL HSG.-C/HSG. | |
| 31. | VI0501412350 | [2] | BOLT,HSG.-RR.PLATE | |
| 32. | VI9091104100 | [1] | NUT | KOBHSG.-RR. PLATE Superseded by part number: VI9091105100 |
| 32. | VI9991104120 | [2] | NUT | KOBNUT,HSG.-RR.PLATE Superseded by part number: VI9991105120 |
| 33. | VI9091505100 | [1] | WASHER | KOBWASHER,SPR..READER BOLT Superseded by part number: VI1099853450 |
