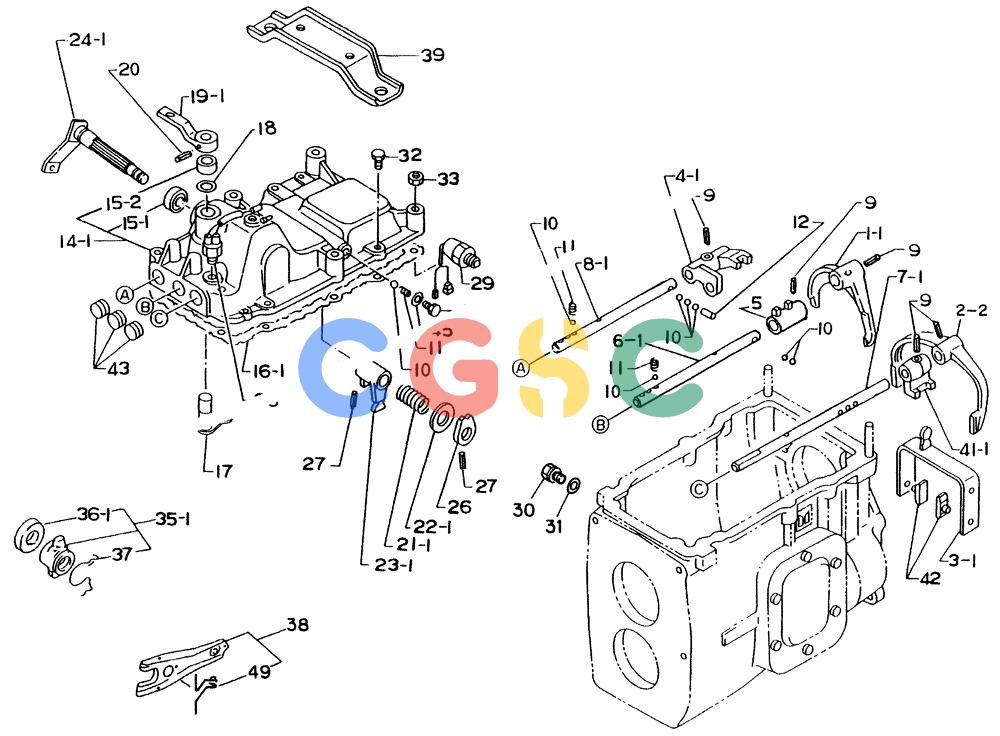

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-042[02]) - TRANSMISSION CONTROL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
923 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8970113661 | [1] | ARM,SHIFT,T0P-3RD | |
| 1-1. | VI8970113641 | [1] | ARM,SHIFT,2ND-3RD | |
| 2-1. | VI8970113651 | [1] | ARM,SHIFT.2ND-LOW | |
| 2-2. | VI8970113631 | [1] | ARM,SHI FT,LOW-REV. | |
| 3. | VI8971075450 | [1] | ASM,SHIFT,REV.-O/DRIVE | |
| 3-1. | VI8943169941 | [1] | ARM,SHIFT.TOP.-O/DRIVE | |
| 4. | VI8941357194 | [1] | BLOCK,SHIFT,REV.-O/DRIVE | |
| 4-1. | VI8941357182 | [1] | BLOCK,SHIFT,TOP-O/DR1VE | |
| 5. | VI8970175731 | [1] | BLOCK,SHIFT,3R0-TOP,2ND | |
| 6. | VI8970113711 | [1] | ROD,SHIFT,TOP-3RD | |
| 6-1. | VI8970782050 | [1] | ROD,SHIFT,2ND-3RD | |
| 7. | VI8970113701 | [1] | ROD,SH1FT,2ND-L0W | |
| 7-1. | VI8970782040 | [1] | ROD,SHIFT,LOW-REV. | |
| 8. | VI8943169230 | [1] | ROD,SHIFT,REV. -O/DRiVE | |
| 8-1. | VI8970782060 | [1] | ROD,SHIFT,TOP-O/DRIVE | |
| 9. | VI8941357710 | [6] | PIN ASM,SPRING,(L=25) | |
| 9. | VI8970115962 | [2] | PIN,SPRING.(L=32) | |
| 10. | VI9000970100 | [7] | BALL,LOCK,INTER | |
| 11. | VI9097401140 | [2] | SPRING,LOCK BALL L=31.6 | |
| 12. | VI5335340010 | [1] | PIN,INTER LOCK,SHIFT | |
| 13. | VI9092013160 | [1] | PLUG,PLATE | |
| 14. | VI8943401450 | [1] | BOX,QUADRANT,W/OIL SEAL | |
| 14. | VI8943401460 | [1] | BOX,QUADRANT,W/OIL SEAL | |
| 14-1. | VI8970663330 | [1] | BOX,QUADRANT,W/OIL SEAL | |
| 15. | VI8941287840 | [2] | SEAL,OIL,QUADRANT BOX | |
| 15-1. | VI8944620190 | [1] | SEAL,OIL,QUADRANT BOX | |
| 15-2. | VI8941287840 | [1] | SEAL,OIL,QUADRANT BOX | |
| 16. | VI8942571620 | [1] | PACK ING,QUADRANT BOX | |
| 16-1. | NSS | [1] | NOT SOLD SEPARAT | CONPACK ING,QUAD.BOX,(BOND) |
| 17. | VI8941592681 | [1] | LEVER,SELECT,INTERNAL | |
| 18. | VI8942492501 | [1] | WASHER,PL.SELECT LEVER | |
| 19. | VI8941592692 | [1] | LEVER,SELECT.EXTERNAL | |
| 19-1. | VI8941016852 | [1] | LEVERJSELECT,EXTERNAL | |
| 20. | VI8941357710 | [1] | PINISPRING,SELECT LEVER | |
| 21. | VI8941583850 | [1] | SPRING,REV. & STOP | |
| 21-1. | VI8944620200 | [1] | SPRING,REV. & STOP | |
| 22. | VI8942492440 | [1] | WASHER,PL. | |
| 22-1. | VI8944613450 | [1] | WASHER,PL. | |
| 23. | VI8941051412 | [1] | LEVER,SHIFT,INTERNAL | |
| 23-1. | VI8943401312 | [1] | LEVER,SHIFT,INTERNAL | |
| 24. | VI8941287800 | [1] | LEVER,SHIFT,EXTERNAL | |
| 24. | VI8941287810 | [1] | LEVER,SHIFT.EXTERNAL | |
| 24-1. | VI8970256070 | [1] | LEVER,SHIFT.EXTERNAL | |
| 25. | VI8941293530 | [1] | WASHER,PL. | |
| 26. | VI8942490482 | [1] | RING,STOPPER,NEUTRAL | |
| 27. | VI9096785490 | [1] | PIN,SPRING,SHIFT LEVER | |
| 28. | VI8971376550 | [1] | SWITCH.BUCK UP LAMP | |
| 29. | VI5824400180 | [1] | SWITCH,NEUTRAL | |
| 29. | VI8970654171 | [1] | SWITCH,NEUTRAL | |
| 29. | VI8971134381 | [1] | SWITCH,NEUTRAL(94-6-) | |
| 30. | VI8943407171 | [1] | PLUG ASH,SCREW FILLER | |
| 31. | VI8943365110 | [1] | O-RING,FILLER PLUG | |
| 32. | VI8941287860 | [10] | BOLT,QUAD.BOX FIX.(L=25) | |
| 32. | VI8941321640 | [2] | BOLT,QUAD.BOX FIX.(L=45) | |
| 33. | VI8942492420 | [4] | NUT,QUADRANT BOX FIX. | |
| 34. | VI5097002750 | [1] | CUP,SWITCH HARNESS | |
| 35. | VI8943131670 | [1] | BLOCK ASM,SHIFT,CLUTCH | |
| 35-1. | VI8943893670 | [1] | BLOCK ASM,SHIFT.CLUTCH | |
| 36. | VI5313140011 | [1] | BEARING,CLUTCH RELEASE | |
| 36-1. | VI8943894160 | [1] | BEARING,CLUTCH RELEASE | |
| 37. | VI8944608930 | [1] | SPRING,SHIFT BLOCK | |
| 38. | VI8970245280 | [1] | FORK ASM,SHIFT.CLUTCH | |
| 38. | VI5312400050 | [1] | FORK ASM,SHIFT.CLUTCH | |
| 39. | VI8941128922 | [2] | BRACKET,ENG. MTG.-T/M | |
| 40. | VI8944599240 | [1] | SPRING,RETURN,S/FORK | |
| 41. | VI8970228372 | [1] | BLOCK,SHIFT,LOW-2ND | |
| 41-1. | VI8941357194 | [1] | BLOCK-.SHIFT. LOW-REV. | |
| 42. | VI8943169960 | [2] | PIECE,SHAFT | |
| 43. | VI8941013190 | [3] | COVER,SHIFT ROD | |
| 44. | VI8970316680 | [1] | PLUG,SCREW.LOCK BALL | |
| 45. | VI9095716120 | [1] | PACKING,PLUG | |
| 49. | VI5313490040 | [1] | SPRING,SHIFT FORK | |
