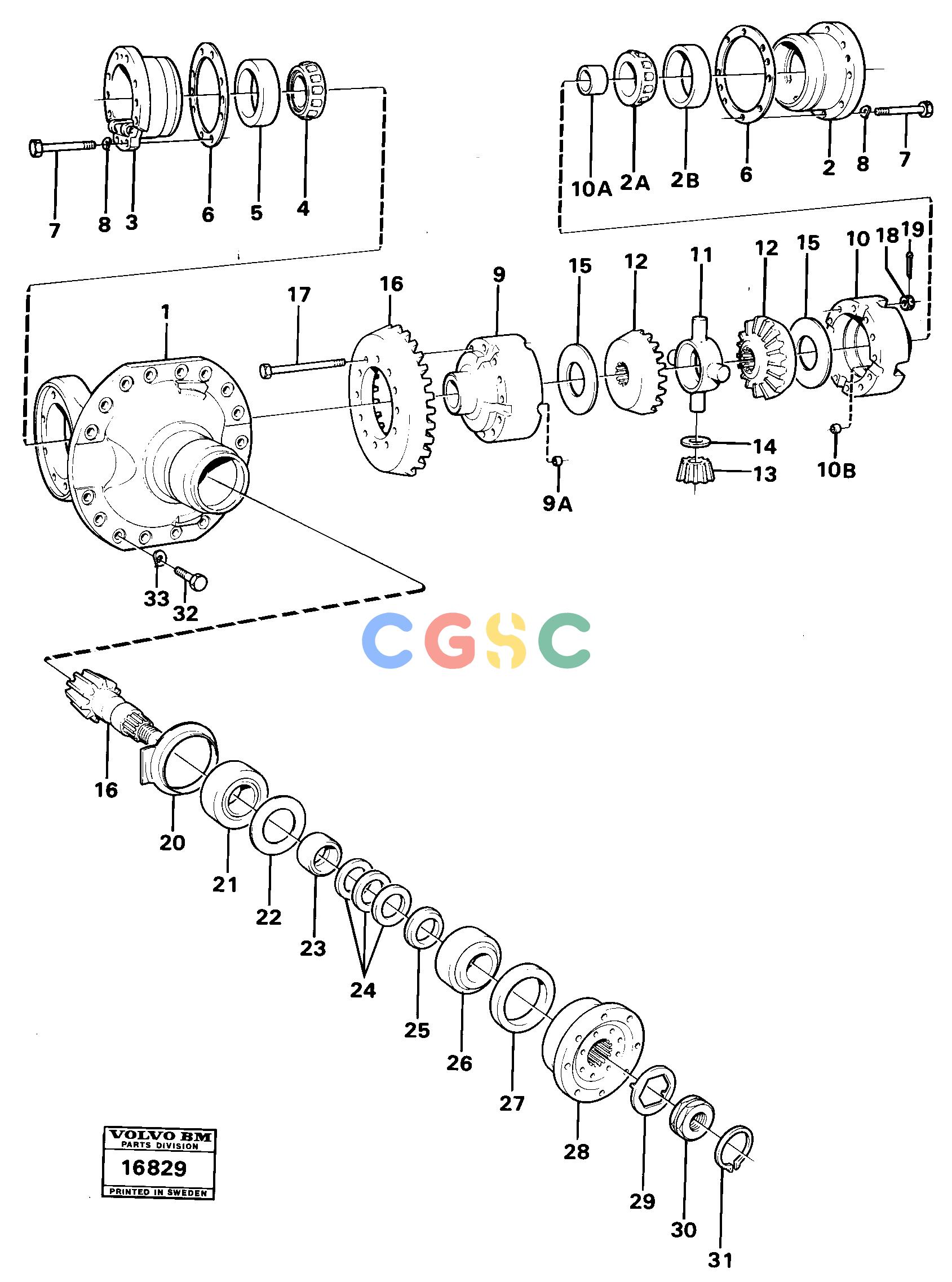

沃尔沃零件查询4300 Final gear, front prod nr 235144300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2B. |
VOE183791
|
[0001] |
Roller bearing
|
|
| |
VOE383992
|
[0001] |
Lock washer
|
ALT.
|
| 30. |
VOE4717504
|
[0001] |
Nut
|
|
| 31. |
VOE914480
|
[0001] |
Snap ring
|
|
| 32. |
VOE955364
|
[0017] |
Hexagon screw
|
|
| 33. |
VOE941912
|
[0017] |
Spring washer
|
|
| 3. |
VOE4717414
|
[0001] |
Bearing carrier
|
|
| 4. |
VOE7181299
|
[0001] |
Cone
|
|
| 5. |
VOE181123
|
[0001] |
Roller Bearing
|
|
| 6. |
VOE4717583
|
[REQ] |
Shim
|
THICK=0,1
|
| |
VOE4717907
|
[0001] |
Final Drive
|
|
| |
VOE4717583
|
[REQ] |
Shim
|
THICK=0,35
|
| |
VOE4717581
|
[REQ] |
Shim
|
THICK=1,0
|
| 7. |
VOE13970972
|
[16] |
Hexagon screw
|
|
| 8. |
VOE940280
|
[16] |
Spring washer
|
|
| |
VOE4717335
|
[1] |
Differential
|
AX -1813
|
| |
VOE4717904
|
[1] |
Differential
|
AX 1814-
|
| 9. |
VOE4717231
|
[1] |
Differential housing
|
|
| 9A. |
VOE705549
|
[1] |
Pin
|
|
| 10. |
VOE4719136
|
[1] |
Differential housing
|
|
| 10A. |
VOE728079
|
[1] |
Bushing
|
|
| 10B. |
VOE705549
|
[1] |
Pin
|
|
| 1. |
VOE4717425
|
[0001] |
Centre housing
|
|
| 11. |
VOE728092
|
[1] |
Spider
|
|
| 12. |
VOE736394
|
[2] |
Differential side gear
|
|
| 13. |
VOE754527
|
[1] |
Differential side gear
|
SATS/SET
|
| 14. |
VOE728123
|
[0004] |
Thrust washer
|
|
| 15. |
VOE728080
|
[2] |
Thrust washer
|
|
| 16. |
VOE4717903
|
[1] |
Gear
|
AX - 1813
|
| |
VOE4717903
|
[1] |
Gear
|
AX 1814 - 2609
|
| |
VOE4870050
|
[1] |
Gear
|
AX 2610 -
|
| |
|
[1] |
Crown wheel
|
|
| |
|
[1] |
Drive pinion
|
|
| 17. |
VOE728125
|
[12] |
Reamed screw
|
|
| 18. |
VOE955874
|
[12] |
Castle nut
|
|
| 2. |
VOE4717580
|
[0001] |
Bearing carrier
|
|
| 19. |
VOE907847
|
[12] |
Split pin
|
|
| 20. |
VOE4717397
|
[1] |
Oil Catcher
|
|
| 21. |
VOE181609
|
[1] |
Roller bearing
|
|
| 22. |
VOE4717406
|
[REQ] |
Shim
|
THICK=1,0
|
| |
VOE4717407
|
[REQ] |
Shim
|
THICK=0,35
|
| |
VOE4717408
|
[REQ] |
Shim
|
THICK=0,10
|
| 23. |
VOE4717563
|
[0001] |
Spacer sleeve
|
|
| 24. |
VOE4717564
|
[REQ] |
Spacer ring
|
THICK=5,00
|
| |
VOE4717565
|
[REQ] |
Spacer ring
|
THICK=5,03
|
| |
VOE4717566
|
[REQ] |
Spacer ring
|
THICK=5,09
|
| 2A. |
VOE183790
|
[0001] |
Inner ring
|
|
| |
VOE4717567
|
[REQ] |
Spacer ring
|
THICK=5,24
|
| |
VOE4717568
|
[REQ] |
Spacer ring
|
THICK=5,39
|
| |
VOE4717569
|
[REQ] |
Spacer ring
|
THICK=5,54
|
| |
VOE4717570
|
[REQ] |
Spacer ring
|
THICK=5,60
|
| |
VOE4717571
|
[REQ] |
Spacer ring
|
THICK=5,63
|
| 25. |
VOE4717446
|
[0001] |
Spacer sleeve
|
|
| 26. |
VOE181171
|
[0001] |
Roller bearing
|
|
| 27. |
VOE4787030
|
[0001] |
Sealing ring
|
|
| 28. |
VOE4717429
|
[0001] |
Companion flange
|
|
| 29. |
VOE382779
|
[0001] |
Lock washer
|
ALT.
|
