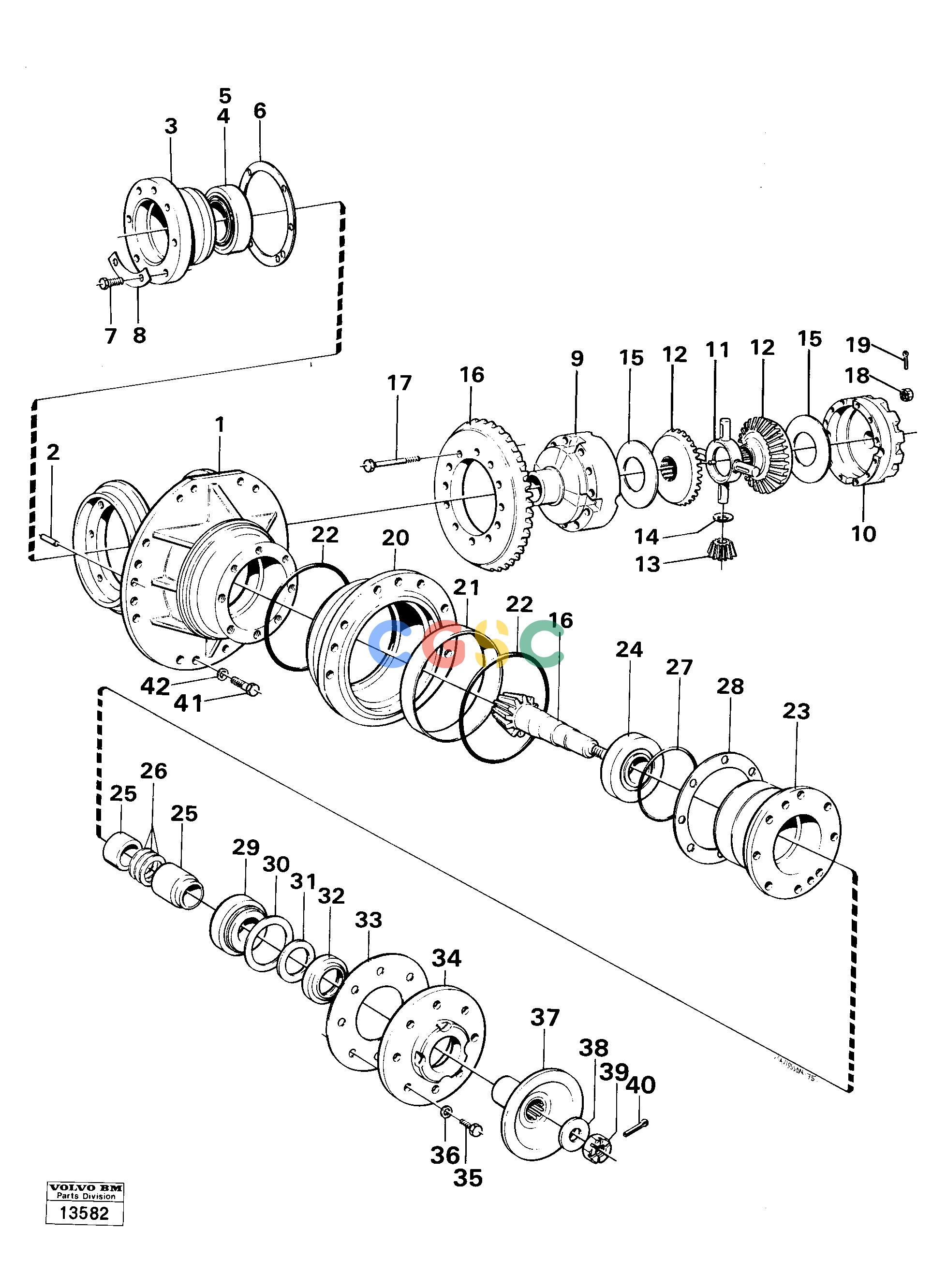

沃尔沃零件查询4300 Final gear, rear prod nr 235064300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
559 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4880390
|
[0001] |
Roller bearing
|
H
|
| 38. |
VOE4717250
|
[0001] |
Washer
|
|
| 39. |
VOE955889
|
[0001] |
Castle nut
|
|
| 40. |
VOE13907875
|
[0001] |
Cotter Pin
|
|
| 41. |
VOE970996
|
[0016] |
Hexagon screw
|
|
| 42. |
VOE941911
|
[0016] |
Spring washer
|
|
| |
VOE914167
|
[0001] |
Lubricating nipple
|
|
| 5. |
VOE7018412
|
[0001] |
Roller bearing
|
V
|
| 6. |
VOE738026
|
[REQ] |
Shim
|
THICK=0,1
|
| |
VOE738027
|
[REQ] |
Shim
|
THICK=0,35
|
| |
VOE738028
|
[REQ] |
Shim
|
THICK=1,0
|
| |
VOE4717691
|
[0001] |
Final Drive
|
|
| 7. |
VOE955562
|
[0012] |
Hexagon screw
|
|
| 8. |
VOE738061
|
[0006] |
Lock washer
|
|
| |
VOE4720532
|
[0001] |
Differential
|
|
| 9. |
VOE4720519
|
[0001] |
Differential housing
|
|
| 10. |
VOE4717061
|
[0001] |
Differential housing
|
|
| |
VOE705549
|
[0002] |
Pin
|
|
| 11. |
VOE728092
|
[0001] |
Spider
|
|
| 12. |
VOE736394
|
[0002] |
Differential side gear
|
|
| 13. |
VOE754527
|
[0001] |
Differential side gear
|
SATS/SET
|
| 14. |
VOE728123
|
[0004] |
Thrust washer
|
|
| 1. |
VOE4717152
|
[0001] |
Bearing Housing
|
|
| 15. |
VOE728080
|
[2] |
Thrust washer
|
|
| 16. |
VOE4717451
|
[1] |
Gear
|
|
| |
|
[1] |
Crown wheel
|
|
| |
|
[1] |
Drive pinion
|
|
| 17. |
VOE728125
|
[12] |
Reamed screw
|
|
| 18. |
VOE955874
|
[12] |
Castle nut
|
|
| 19. |
VOE907847
|
[12] |
Split pin
|
|
| 20. |
VOE4719971
|
[1] |
Bearing anchorage
|
|
| 21. |
VOE738002
|
[1] |
Bearing race
|
|
| 2. |
VOE950679
|
[0001] |
Pin
|
|
| 22. |
VOE795356
|
[2] |
O-ring
|
|
| 23. |
VOE737932
|
[1] |
Bearing housing
|
|
| 24. |
VOE181609
|
[1] |
Roller bearing
|
|
| 25. |
VOE6630344
|
[1] |
Socket set
|
|
| 26. |
VOE4717437
|
[REQ] |
Shim
|
THICK=0.1
|
| |
VOE4717438
|
[REQ] |
Shim
|
THICK=0.35
|
| |
VOE4717439
|
[REQ] |
Shim
|
THICK=1.0
|
| 27. |
VOE925266
|
[1] |
O-ring
|
|
| 28. |
VOE738018
|
[REQ] |
Shim
|
THICK=0.1
|
| |
VOE738019
|
[REQ] |
Shim
|
THICK=0.35
|
| 3. |
VOE737993
|
[0002] |
Bearing carrier
|
|
| |
VOE738020
|
[REQ] |
Shim
|
THICK=1.0
|
| 29. |
VOE7011077
|
[1] |
Ball bearing
|
|
| 30. |
VOE737918
|
[0001] |
Oil deflector
|
|
| 31. |
VOE737920
|
[0001] |
Washer
|
|
| 32. |
VOE6612927
|
[0001] |
Sealing ring
|
|
| 33. |
VOE738017
|
[0001] |
Gasket
|
|
| 34. |
VOE4716833
|
[0001] |
Ring retainer
|
|
| 35. |
VOE955564
|
[0008] |
Hexagon screw
|
|
| 36. |
VOE940280
|
[0008] |
Spring washer
|
|
| 37. |
VOE4715281
|
[0001] |
Flange
|
|
