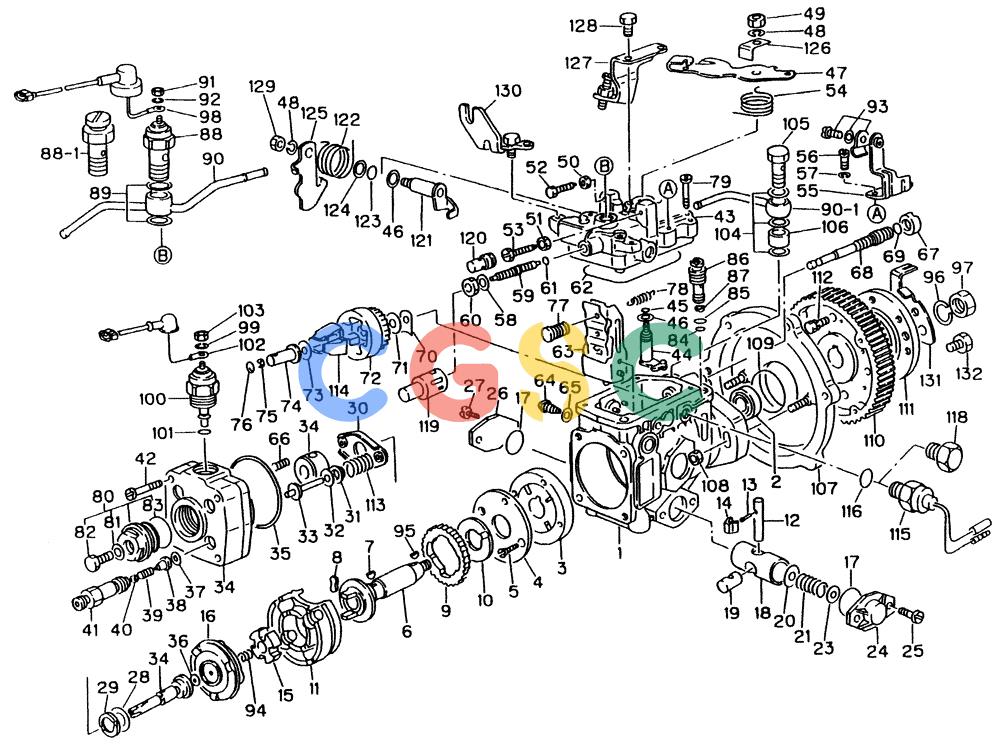

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-044) - INJECTION PUMP Kobelco_神钢Kobelco_工程机械

Pos.	Part No	Qty	Parts name	Comments
. .	VI8943357071	[1]	PUMP ASH,INJ.
. .	VI8943413080	[1]	PUMP ASM,INJ.
. .	VI8943421762	[1]	PUMP ASM,INJ.
. .	VI8943889600	[1]	PUMP ASM,INJ.
. .	VI8944040322	[1]	PUMP ASM, INJ.
. .	VI8944659290	[1]	PUMP ASM,INJ.
. .	VI8970116240	[1]	PUMP ASM,INJ.
. .	VI8970177760	[1]	PUMP ASM,INJ.
. .	VI8970203901	[1]	PUMP ASM,INJ.
. .	VI8970322311	[1]	PUMP ASM,INJ.
. .	VI8970396571	[1]	PUMP ASM,INJ.
1.	VI8941748310	[1]	HOUSING,PUMP
1.	VI8944180370	[1]	HOUSING,PUMP
1.	VI8944455790	[1]	HOUSING,PUMP
2.	VI8942274750	[1]	SEAL,OIL
2.	VI8944180380	[1]	SEAL,OIL
3.	VI8942274770	[1]	PUMP,FEED
3.	VI8944788480	[1]	PUMP,FEED
4.	VI8942274780	[1]	COVER
5.	VI8942274790	[2]	SCREW
6.	VI8942274800	[1]	SHAFT,DRIVE
6.	VI8943211650	[1]	SHAFT,DRIVE
7.	VI8942274810	[1]	KEY,WOODRUFF
8.	VI8942274821	[2]	DAMPER
9.	VI8942274830	[1]	GEAR
10.	VI8942274840	[1]	WASHER
10.	VI8943174880	[1]	WASHER
11.	VI8942274850	[1]	ROLLER ASM.
11.	VI8943174890	[1]	ROLLER ASM.
12.	VI8942274860	[1]	PIN
13.	VI8942274870	[1]	PIN
14.	VI8942274880	[1]	CLIP
15.	VI8942274890	[1]	DISK
15.	VI8943174900	[1]	DISK
16.	VI8941748320	[1]	CAM DISK
16.	VI8943211700	[1]	CAM DISK
17.	VI8942274910	[2]	O-RING
18.	VI8941747390	[1]	PISTON
18.	VI8970143150	[1]	PISTON
18.	VI8944085090	[1]	PISTON
19.	VI8942274930	[1]	SLIDER
20.	VI8942274950	[1]	SHIM
21.	VI8941748330	[1]	SPR!NG,TIM.(2.25KG/MM)
21.	VI8941748340	[1]	SPRINGlTIM. (2.25KG/MMMOR
21.	VI8941748350	[1]	SPRING,TIM.(2.05KG/MM)(OR
21.	VI8941748360	[1]	SPRING,TIM.(2.05KG/MM)(OR
21.	VI8941748370	[1]	SPRING,TIM.(2.50KG/MM)(OR
21.	VI8941748380	[1]	SPR1NG,T1M.(2.50KG/MM)(OR
21.	VI8944180300	[1]	SPRING,TIMER(K=4.10KG/MM)
21.	VI8943806560	[1]	SPRING,TIMER
21.	VI8943136710	[1]	SPRING,TIMER
21.	VI8943132270	[1]	SPRING,TIMER
21.	VI8943433400	[1]	SPRING,TIMER
21.	VI8944731190	[1]	SPRING,TIMER (OR)
21.	VI8943166690	[1]	SPRING,TIMER (OR)
21.	VI89431324T0	[1]	SPRING,TIMER (OR)
21.	VI8943132600	[1]	SPRING,TIMER
21.	VI8943132000	[1]	SPRING,TIMER
23.	VI8942274950	[1]	SHIM,(T=0.60)
23.	VI8942274960	[1]	SHIM:(T=0.70) (OR)
23.	VI8942274970	[1]	SHIM,(T=0.90) (OR)
23.	VI8942274980	[1]	SHIM,(T=1.00) (OR)
23.	VI8942274990	[1]	SHIM,(T=1.20) (OR)
23.	VI8941216200	[1]	SHIM,(T=2.40) (OR)
24.	VI8942275000	[1]	COVER
24.	VI8942429670	[1]	COVER
24.	VI8944731200	[1]	COVER
25.	VI8942275010	[2]	SCREW
25.	VI8943132760	[2]	SCREW
26.	VI8942429670	[1]	COVER
27.	VI8942275010	[2]	SCREW
27.	VI8943132760	[2]	SCREW
28.	VI8942275140	[1]	SHIM
29.	VI8942275150	[1]	WASHER
29.	VI8943174930	[1]	WASHER
30.	VI8942275161	[1]	SEAT,SPRING
31.	VI8942275170	[2]	SEAT,SPRING
32.	VI8942275180	[1]	SHIM,(T=0.50)
32.	VI8942275190	[1]	SHIM,(T=0.80) (OR)
32.	VI8944332040	[1]	shim,(t=0.90) (or)
32.	VI8942275200	[1]	SHIW,(T=1.00) (OR)
32.	VI8944332050	[1]	SHIM,(T=1.10) (OR)
32.	VI8942275210	[1]	SHIM,(T=1.20) (OR)
32.	VI8944332060	[1]	SHIM,(T=1.30) (OR)
32.	VI8944332070	[1]	SHIM,(T=1.40) (OR)
32.	VI8942275220	[1]	SHIM,(T=1.50) (OR)
32.	VI8944332080	[1]	SHIM,(T=1.6O) (OR)
32.	VI8944332090	[1]	SHIM,(7=1.70) (OR)
32.	VI8942275230	[1]	SHIM,(t=1.80) (or)
32.	VI8942275240	[1]	SHIM,(T=2.00) (OR)
33.	VI8942275250	[2]	PIN,GUIDE
34.	VI8941748390	[1]	HEAD, DISTRIBUTOR
34.	VI8944180310	[1]	HEAD,DISTRIBUTOR
34.	VI8943866010	[1]	HEAD,DISTRIBUTOR
35.	VI8942275270	[1]	O-RING
36.	VI8941116580	[1]	SHIM,(T=1.74)
36.	VI8941116590	[1]	SHIM,(T=1.76) (OR)
36.	VI8941116600	[1]	SHIM,(T=1.78) (OR)
36.	VI8941116610	[1]	SHIM,(T=1.80) (OR)
36.	VI8941116620	[1]	SHIM,(T=1.82) (OR)
36.	VI8941116630	[1]	SHIM,(T=1.84) (OR)
36.	VI8941116640	[1]	SHIM, (T=1.86) (OR)
36.	VI8941116650	[1]	SHIM,(T=1.88) (OR)
36.	VI8941747510	[1]	SHIM,(t=1.9) (or)
36.	VI8942275280	[1]	SHIM,(T=1.9) (OR)
36.	VI8941747520	[1]	SHIM,(T=1.92) (OR)
36.	VI8942275290	[1]	SHIM,(T=1.92) (OR)
36.	VI8941747530	[1]	SHIM,(T=1.94) (OR)
36.	VI8942275300	[1]	SHIM,(T=1.94) (OR)
36.	VI8941747540	[1]	SHIM,(T=1.96) (OR)
36.	VI8942275310	[1]	SHIM,(T=l.96) (OR)
36.	VI8941747550	[1]	SHIM,(T=1.98) (OR)
36.	VI8942275320	[1]	SHIM,(T=1.98) (OR)
36.	VI8941747560	[1]	SHIM,(T=2.0) (OR)
36.	VI8942275330	[1]	SHIM, (T=2.0) (OR)
36.	VI8941747570	[1]	SHIM,(T=2.02) (OR)
36.	VI8942275340	[1]	SHIM,(T=2.02) (OR)
36.	VI8941747580	[1]	SHIM,(T=2.04) (OR)
36.	VI8942275350	[1]	SHIM,(T=2.04) (OR)
36.	VI8941747590	[1]	SHIM,(T=2.06) (OR)
36.	VI8942275360	[1]	SHIM,(T=2.06) (OR)
36.	VI8941747600	[1]	SHIM,(T=2.0B) (OR)
36.	VI8942275370	[1]	SHIM,(T=2.08) (OR)
36.	VI8941747610	[1]	SHIM,(T=2.1) (OR)
36.	VI8942275380	[1]	SHIM,(T=2.1) (OR)
36.	VI8941747620	[1]	SHIM,(T=2.12) (OR)
36.	VI8942275390	[1]	SHIM,(T=2.12) (OR)
36.	VI8941747630	[1]	SHIM,(T=2.14) (OR)
36.	VI8942275400	[1]	SHIM,(T=2.14) (OR)
36.	VI8941747640	[1]	SHIM,(T=2.16) (OR)
36.	VI8942275410	[1]	SHIM,(T=2.16) (OR)
36.	VI8941747650	[1]	SHIM,(T=2.18) (OR)
36.	VI8942275420	[1]	SHIM,(T-2.18) (OR)
36.	VI8941747660	[1]	SHIM,(T=2.2) (OR)
36.	VI8942275430	[1]	SHIM,(T=2.2) (OR)
36.	VI8941747670	[1]	SHIM,(T=2.22) (OR)
36.	VI8942275440	[1]	SHIM,(T=2.22) (OR)
36.	VI8941747680	[1]	SHIM,(T=2.24) (OR)
36.	VI8942275450	[1]	SHIM,(T=2.24) (OR)
36.	VI8941747690	[1]	SHIM,(T=2.26) (OR)
36.	VI8942275460	[1]	SHIM,(T=2.26) (OR)
36.	VI8941747700	[1]	SHIM,(T=2.28) (OR)
36.	VI8942275470	[1]	SHIM,(T=2.28) (OR)
36.	VI8941747710	[1]	SHIM,(T=2.3) (OR)
36.	VI8942275480	[1]	SHIM,(T=2.3) (OR)
36.	VI8941747720	[1]	SHIM,(T=2.32) (OR)
36.	VI8942275490	[1]	SHIM,(T=2.32) (OR)
36.	VI8941747730	[1]	SHIM,(T=2.34) (OR)
36.	VI8942275500	[1]	SHIM,(T=2.34) (OR)
36.	VI8941747740	[1]	SHIM(T=2.36) (OR)
36.	VI8942275510	[1]	SHIM,(T=2.36) (OR)
36.	VI8941747750	[1]	SHIM,(T=2.38) (OR)
36.	VI8942275520	[1]	SHIM,(T=2.38) (OR)
36.	VI8941747760	[1]	SHIM,(T=2.4) (OR)
36.	VI8942275530	[1]	SHIM,(T=2.4) (OR)
36.	VI8941747770	[1]	SHIM,(T=2.42) (OR)
36.	VI8942275540	[1]	SHIM,(T=2.42) (OR)
36.	VI8941747780	[1]	SHIM,(T=2.44) (OR)
36.	VI8942275550	[1]	SHIM,(T=2.44) (OR)
36.	VI8941747790	[1]	SHIM,(T=2.46) (OR)
36.	VI8942275560	[1]	SHIM,(T=2.46) (OR)
36.	VI8941747800	[1]	SHIM,(T=2.48) (OR)
36.	VI8942275570	[1]	SHIM,(T=2.48) (OR)
36.	VI8941747810	[1]	SHIM,(T=2.5) (OR)
36.	VI8942275580	[1]	SHIM,(T=2.5) (OR)
36.	VI8941747820	[1]	SHIM,(T=2.52) (OR)
36.	VI8942275590	[1]	SHIM,(T=2.52) (OR)
36.	VI8941747830	[1]	SHIM,(T=2.54) (OR)
36.	VI8942275600	[1]	SHIM,(T=2.54) (OR)
36.	VI8941747840	[1]	SHIM,(T=2.56) (OR)
36.	VI8942275610	[1]	SHIM,(T=2.56) (OR)
36.	VI8941747850	[1]	SHIM,(T=2.58) (OR)
36.	VI8942275620	[1]	SHIM,(T=2.58) (OR)
36.	VI8941747860	[1]	SHIM,(T=2.6) (OR)
36.	VI8942275630	[1]	SHIM,(T=2.6) (OR)
36.	VI8941747870	[1]	SHIM,(T=2.62) (OR)
36.	VI8942275640	[1]	SHIM,(T=2.62) (OR)
36.	VI8941747880	[1]	SHIM,(T=2.64) (OR)
36.	VI8942275650	[1]	SHIM, (T=2.64) (OR)
36.	VI8941747890	[1]	SHIM,(T=2.66) (OR)
36.	VI8942275660	[1]	SHIM,(T=2.66) (OR)
36.	VI8941747900	[1]	SHIM,(T=2.68) (OR)
36.	VI8942275670	[1]	SHIM,(T=2.68) (OR)
36.	VI8941747910	[1]	SHIH,(T=2.7) (OR)
36.	VI8942275680	[1]	SHIM,(T=2.7) (OR)
36.	VI8941747920	[1]	SHIM,(T=2.72) (OR)
36.	VI8942275690	[1]	SHIM,(T=2.72) (OR)
36.	VI8941747930	[1]	SHIM,(T=2.74) (OR)
36.	VI8942275700	[1]	SHIM,(T=2.74) (OR)
36.	VI8941747940	[1]	SHIM,(T=2.76) (OR)
36.	VI8942275710	[1]	SHIM,(T=2.76) (OR)
36.	VI8941747950	[1]	SHIM,(T=2.78) (OR)
36.	VI8942275720	[1]	SHIM,(T=2.78) (OR)
36.	VI8941747960	[1]	SHIM,(T=2.8) (OR)
36.	VI8942275730	[1]	SHIM,(T=2.8) (OR)
36.	VI8941747970	[1]	SHIM,(T=2.82) (OR)
36.	VI8942275740	[1]	SHIM,(T=2.82) (OR)
36.	VI8941747980	[1]	SHIM,(T=2.84) (OR)
36.	VI8942275750	[1]	SHIM,(T=2.84) (OR)
36.	VI8941747990	[1]	SHIM,(T=2.86) (OR)
36.	VI8942275760	[1]	SHIM,(T=2.86) (0R)
36.	VI8941748000	[1]	SHIM,(T=2.88) (OR)
36.	VI8942275770	[1]	SHIM,(T=2.88) (OR)
36.	VI8941748010	[1]	SHIM,(T=2.9) (0R)
36.	VI8942275780	[1]	SHIM,(T=2.9) (OR)
37.	VI8942477160	[4]	GASKET
38.	VI8941748020	[4]	VALVE,DELIVERY
38.	VI8944085120	[4]	VALVE,DELIVERY
38.	VI8942406190	[4]	VALVE,DELIVERY
39.	VI8941748030	[4]	spring,d.v.
40.	VI8941748040	[4]	STOPPER
41.	VI8941748050	[4]	HOLDER,D.V.
41.	VI8943174970	[4]	HOLDER ,D.V.
42.	VI8942576700	[4]	SCREW
43.	VI8943865930	[1]	COVER,GOV.
43.	VI8941748400	[1]	COVER,GOV.
43.	VI8944180320	[1]	COVER,GOV.
43.	VI8943273360	[1]	COVER,GOV.
44.	VI8941748410	[1]	SHAFT,CONTROL
44.	VI8941748070	[1]	SHAFT,CONTROL
44.	VI8941748280	[1]	SHAFT,CONTROL
45.	VI8942275850	[1]	O-RING
46.	VI8942275900	[1]	DASHER
47.	VI8941748081	[1]	LEVER
47.	VI8941748091	[1]	LEVER (OR)
47.	VI8943175010	[1]	LEVER
47.	VI8943175020	[1]	LEVER (OR)
48.	VI9091505060	[1]	WASHER	KOBWASHER,SPRING
49.	VI1157290060	[1]	NUT
49.	VI9091104060	[1]	NUT
50.	VI1157290060	[1]	NUT
50.	VI8944260470	[1]	NUT
51.	VI9813250810	[1]	NUT
51.	VI8944260470	[1]	NUT
52.	VI5157292680	[1]	BOLT
52.	VI8944260490	[1]	BOLT
53.	VI8942275870	[1]	BOLT
53.	VI8944260490	[1]	BOLT
54.	VI8941327850	[1]	SPRING
54.	VI8943175070	[1]	SPRING
55.	VI8941748100	[1]	BRACKET
56.	VI8942422770	[2]	SCREW
56.	VI8943132640	[2]	SCREW
57.	VI9091505060	[2]	WASHER	KOBWASHER,SPRING
58.	VI8942275930	[1]	WASHER
59.	VI8942275940	[1]	SCREW,LOAD (L53.00)
59.	VI8943162740	[1]	SCREW,LOAD (L53.00)
59.	VI8942275950	[1]	SCREW,LOAD (L55.00) (OR)
59.	VI8943162750	[1]	SCHEW,LOAD (L55.00) (OR)
59.	VI8942275960	[1]	SCREW,LOAD (L57.00) (OR)
59.	VI8943162760	[1]	SCREW,LOAD (L57.00) (OR)
59.	VI8943433100	[1]	SCREW, LOAD
60.	VI8942275970	[1]	NUT
60.	VI8943162770	[1]	NUT
61.	VI8942275980	[1]	O-RING
62.	VI8942275990	[1]	RING,SEAL
63.	VI8941748450	[1]	LEVER, GOVERNOR
63.	VI8944180330	[1]	LEVER, GOVERNOR
63.	VI8943806580	[1]	LEVER, GOVERNOR
63.	VI8970143160	[1]	LEVER, GOVERNOR
63.	VI8970329680	[1]	LEVER, GOVERNOR
63.	VI8970472030	[1]	LEVER, GOVERNOR
63.	VI8970472050	[1]	LEVER, GOVERNOR
64.	VI8942276010	[2]	BOLT,PIVOT
65.	VI8942276020	[2]	GASKET	KOBGASKET Superseded by part number: VI8944338080
66.	VI8942276030	[2]	SPRING
66.	VI8944731280	[2]	SPRING
67.	VI8942477190	[1]	NUT
67.	VI8944731290	[1]	NUT
68.	VI8942480020	[1]	SHAFT,GOVERNOR
69.	VI8942276060	[1]	O-RING
70.	VI8942276070	[1]	SHIM,(T=1.05)
70.	VI8942311230	[1]	SHIM,(T=1.15) (OR)
70.	VI8942276080	[1]	SHIM,(T=1.25) (OR)
70.	VI8942311240	[1]	SHIM,(T=1.35) (OR)
70.	VI8942276090	[1]	SHIM,(T=1.45) (OR)
70.	VI8942311250	[1]	SHIM,(T=I.55) (OR)
70.	VI8942276100	[1]	SHIM,(T=l.65) (OR)
70.	VI8942311260	[1]	SHIM,(T=1.75) (OR)
70.	VI8942276110	[1]	SHIM,(T=1.85) (OR)
71.	VI8942276120	[1]	WASHER
72.	VI8942276130	[1]	HOLDER,F.W
73.	VI8942276140	[1]	WASHER
73.	VI8944085170	[1]	WASHER
74.	VI8941748130	[1]	SLEEVE,GOVERNOR
74.	VI8943397912	[1]	SLEEVE,GOVERNOR
74.	VI8944332220	[1]	SLEEVE,GOVERNOR
74.	VI8943332220	[1]	SLEEVE,GOVERNOR
74.	VI8943397120	[1]	SLEEVE,GOVERNOR
75.	VI8942276160	[1]	CAP,LOCK
75.	VI8944085190	[1]	CAP,LOCK
76.	VI8942276170	[1]	PLUG,CLOSING (L1.70)
76.	VI8942276180	[1]	PLUG,CLOSING (L1.90) (OR)
76.	VI8942276190	[1]	PLUG,CLOSING (L2.10) (OR)
76.	VI8944085200	[1]	PLUG,CLOSING (L2.10) (OR)
76.	VI8944288680	[1]	PLUG,CLOSING (L2.20) (OR)
76.	VI8942276200	[1]	PLUGICLOSING (L2.30) (OR)
76.	VI8944085210	[1]	PLUG,CLOSING (12.30) (OR)
76.	VI8944288690	[1]	PLUG,CLOSING (L2.4O) (OR)
76.	VI8942276210	[1]	PLUG,CLOSING (L2.50) (OR)
76.	VI8944085220	[1]	PLUG,CLOSING (L2.50) (OR)
76.	VI8944288700	[1]	PLUGICLOSING (L2.60) (OR)
76.	VI8942276220	[1]	PLUG,CLOSING (L2.70) (OR)
76.	VI8944085230	[1]	PLUGICLOSING (L2.70) (OR)
76.	VI8944288710	[1]	PLUG,CLOSING (L2.80) (OR)
76.	VI8942276230	[1]	PLUG,CLOSING (L2.90) (OR)
76.	VI8944085240	[1]	PLUG,CLOSING (L2.90) (OR)
76.	VI8944288720	[1]	PLUG,CLOSING (L3.00) (OR)
76.	VI8942276240	[1]	PLUG,CLOSING (L3.10) (OR)
76.	VI8944085250	[1]	PLUG,CLOSING (L3.10) (OR)
76.	VI8944288730	[1]	PLUG,CLOSING (L3.20) (OR)
76.	VI8942276250	[1]	PLUG,CLOSING (L3.30) (OR)
76.	VI8944085260	[1]	PLUG,CLOSING (L3.30) (OR)
76.	VI8944288740	[1]	PLUG,CLOSING (L3.40) (OR)
76.	VI8942276260	[1]	PLUG,CLOSING (L3.50) (OR)
76.	VI8944085270	[1]	PLUG,CLOSING (L3.50) (OR)
76.	VI8944288750	[1]	PLUG,CLOSING (L3.60) (OR)
76.	VI8942276270	[1]	PLUG,CLOSING (L3.70) (OR)
76.	VI8944085280	[1]	PLUG,CLOSING (L3.70) (OR)
76.	VI8944288760	[1]	PLUG,CLOSING (L3.80) (OR)
76.	VI8942276280	[1]	PLUG,CLOSING (L3.90) (OR)
76.	VI8944085290	[1]	PLUG,CLOSING (L3.90) (OR)
76.	VI8944288770	[1]	PLUG,CLOSING (L4.00) (OR)
76.	VI8942276290	[1]	PLUG,CLOSING (L4.10) (OR)
76.	VI8944085300	[1]	PLUG,CLOSING (L4.10) (OR)
76.	VI8944288780	[1]	PLUG,CLOSING (L4.20) (OR)
76.	VI8942276300	[1]	PLUG,CLOSING (L4.30) (OR)
76.	VI8944085310	[1]	PLUG,CLOSING (L4.3O) (OR)
76.	VI8944288790	[1]	PLUG,CLOSING (L4.40) (OR)
76.	VI8942276310	[1]	PLUG,CLOSING (L4.50) (OR)
76.	VI8944085320	[1]	PLUG,CLOSING (L4.50) (OR)
76.	VI8944288800	[1]	PLUG,CLOSING (L4.60) (OR)
76.	VI8942276320	[1]	PLUG,CLOSING (L4.70) (OR)
76.	VI8944085330	[1]	PLUG,CLOSING (L4.70) (OR)
76.	VI8944288810	[1]	PLUG,CLOSING (L4.80) (OR)
76.	VI8942276330	[1]	PLUG,CLOSING (L4.90) (OR)
76.	VI8944085340	[1]	PLUG,CLOSING (L4.90) (OR)
76.	VI8944288820	[1]	PLUG,CLOSING (L5.00) (OR)
76.	VI8942276340	[1]	PLUG,CLOSING (L5.10) (OR)
76.	VI8944085350	[1]	PLUG,CLOSING (L5.10) (OR)
76.	VI8943724990	[1]	PLUG,CLOSING (L5.20) (OR)
76.	VI8943725000	[1]	PLUG,CLOSING (L5.30) (OR)
76.	VI8943725010	[1]	PLUG,CLOSING (L5.40) (OR)
76.	VI8943725020	[1]	PLUG,CLOSING (L5.50) (OR)
77.	VI8941748460	[1]	PIN,RETAINING
77.	VI8943423060	[1]	PIN,RETAINING
77.	VI8970472040	[1]	PIN,RETAINING
77.	VI8970472060	[1]	PIN,RETAINING
78.	VI8941748420	[1]	SPRING,G0V.
78.	VI8944180340	[1]	SPRING,GOV.
78.	VI8943806590	[1]	SPR ING,GOV.
78.	VI8943369380	[1]	SPRING,GOV.
78.	VI8943211680	[1]	SPRING,GOV.
78.	VI8943175120	[1]	SPRING,GOV.
78.	VI8944085370	[1]	SPRING,GOV.
79.	VI8942276360	[4]	SCREW
80.	VI8941748170	[1]	PLUG
81.	VI8942276020	[1]	GASKET	KOBGASKET Superseded by part number: VI8944338080
82.	VI8941748180	[1]	BOLT
83.	VI8942276370	[1]	O-RING
84.	VI8942276400	[1]	O-RING
85.	VI8942276410	[1]	O-RING
86.	VI8941748190	[1]	VALVE,REGULATING
86.	VI8943806610	[1]	VALVE,REGULATING
86.	VI8943806600	[1]	VALVE,REGULATING
86.	VI8944542530	[1]	VALVE,REGULATING
86.	VI8944455750	[1]	VALVE,REGULATING
87.	VI8942276430	[1]	RINGlSPRING
88.	VI8941748200	[1]	VALVE,MAGNET
88-1.	VI8942276440	[1]	VALVE,OVER FLOW
89.	VI8941695270	[2]	GASKET
89.	8942276450VI	[2]	GASKET
89.	VI8944336450	[2]	GASKET
90.	VI8943175130	[1]	PIPE
90.	VI8941748210	[1]	PIPE
90.	VI8944180350	[1]	PIPE
90-1.	VI8944180360	[1]	PIPE
90-1.	VI8943175140	[1]	PIPE
91.	VI1157290500	[1]	NUT
92.	VI9813255540	[1]	WASHER
93.	VI8941748220	[1]	PLATE
94.	VI8942276470	[1]	SPRING
95.	VI5835390240	[1]	KEY	KOBKEY,WOODRUFF
96.	VI8942276480	[1]	WASHER,SPRING
97.	VI1156290060	[1]	NUT
98.	VI8941748230	[1]	WIRE
99.	VI9813255540	[1]	WASHER
100.	VI8942422750	[1]	VALVE,MAGNET
101.	VI8942393730	[1]	O-RING
102.	VI8942437190	[1]	WIRE
102.	VI5826900810	[1]	WIRE
102.	VI8944705820	[1]	WIRE
103.	VI1157290500	[1]	NUT
103.	VI8944731350	[1]	NUT
104.	VI8942276450	[3]	GASKET
104.	VI8944336450	[3]	GASKET
105.	VI8941748240	[1]	BOLT,EYE
105.	VI8942276600	[1]	BOLT,EYE
106.	VI8942276620	[1]	SPACER
107.	VI8941748430	[1]	BRACKET
107.	VI8943175150	[1]	BRACKET
108.	VI8942278290	[2]	NUT
108.	VI8942448290	[2]	NUT
109.	VI8942477220	[1]	0-RIN6
110.	VI8941397441	[1]	GEAR
110.	VI8944680760	[1]	GEAR
110.	VI8943263500	[1]	GEAR
111.	VI8942273371	[1]	COUPLING
111.	VI8943645300	[1]	COUPLING
112.	VI5157290580	[6]	BOLT
112.	VI5156191120	[6]	BOLT
113.	VI8942284040	[1]	SPRING,PLUNGER KIT
114.	VI8942284030	[1]	FLYWEIGHT KIT
114.	VI8944085420	[1]	FLYWEIGHT KIT
115.	VI8944402810	[1]	SENSOR,TACHO
115.	VI8941268220	[1]	SENSOR	KOBSENSOR,TACHO Superseded by part number: VIG1466721020
115.	VI8944032891	[1]	SENSOR,TACHO
116.	VI8942276710	[1]	O-RING
117.	VI8942285450	[1]	REPAIR KIT
118.	VI8944652840	[1]	PLUG
118.	VI8942422840	[1]	PLUG
119.	VI8943162620	[1]	CAP
120.	VI8943162630	[1]	CAP (L=18)
120.	VI8943162640	[1]	CAP (L=21) (OR)
120.	VI8943162650	[1]	CAP (L=24) (OR)
120.	VI8943162660	[1]	CAP (L=27) (OR)
121.	VI8943175030	[1]	SHAFT,LEVER
121.	VI8970472020	[1]	SHAFT,LEVER
122.	VI8943175040	[1]	SPRING
123.	VI8944332160	[1]	O-RING
124.	VI8944332170	[1]	WASHER
125.	VI8943175050	[1]	LEVER
125.	VI8943175060	[1]	LEVER (OR)
126.	VI8941227130	[1]	ANGLE
127.	VI8943175080	[1]	BRACKET
128.	VI8943132670	[1]	BOLT
129.	VI1157290060	[1]	NUT
129.	VI9091104600	[1]	NUT
130.	VI8943175090	[1]	BRACKET
131.	VI8944574780	[1]	PLATE ,TIMING
132.	VI8943894450	[1]	BOLT

AFH207052: Ball Bearing with Sensor

T276487: Angle Sensor Bushing

H151332: Combine Contour-Master™ Sensor Mount Plain Bushing

F663926: Sensor Housing

RE568965: Hitch Draft Sensor Axle Housing

UC16240: Tip Sensor O-Ring

Z105364: Moisture Sensor Roller

F633280: Boom Stop Sensor Housing

MIU802110: Pressure Sensor O-Ring

FH341688: Sensor Nut Plate

L213223: Draft Sensor O-Ring

R311762: Sensor Arm

H169471: Inner Gatherer Heigh Control Sensor Rod

AFH207646: Arm, Slack Arm Sensor

AXE10018: Sensor Arm

HXE76613: Grinder Sensor Grommet

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-044) - INJECTION PUMP Kobelco

相关阅读

Growshine-Ailin

热门推荐

热门资讯

AFH207052: Ball Bearing with Sensor

T276487: Angle Sensor Bushing

H151332: Combine Contour-Master™ Sensor Mount Plain Bushing

F663926: Sensor Housing

RE568965: Hitch Draft Sensor Axle Housing

UC16240: Tip Sensor O-Ring

Z105364: Moisture Sensor Roller

F633280: Boom Stop Sensor Housing

MIU802110: Pressure Sensor O-Ring

FH341688: Sensor Nut Plate
