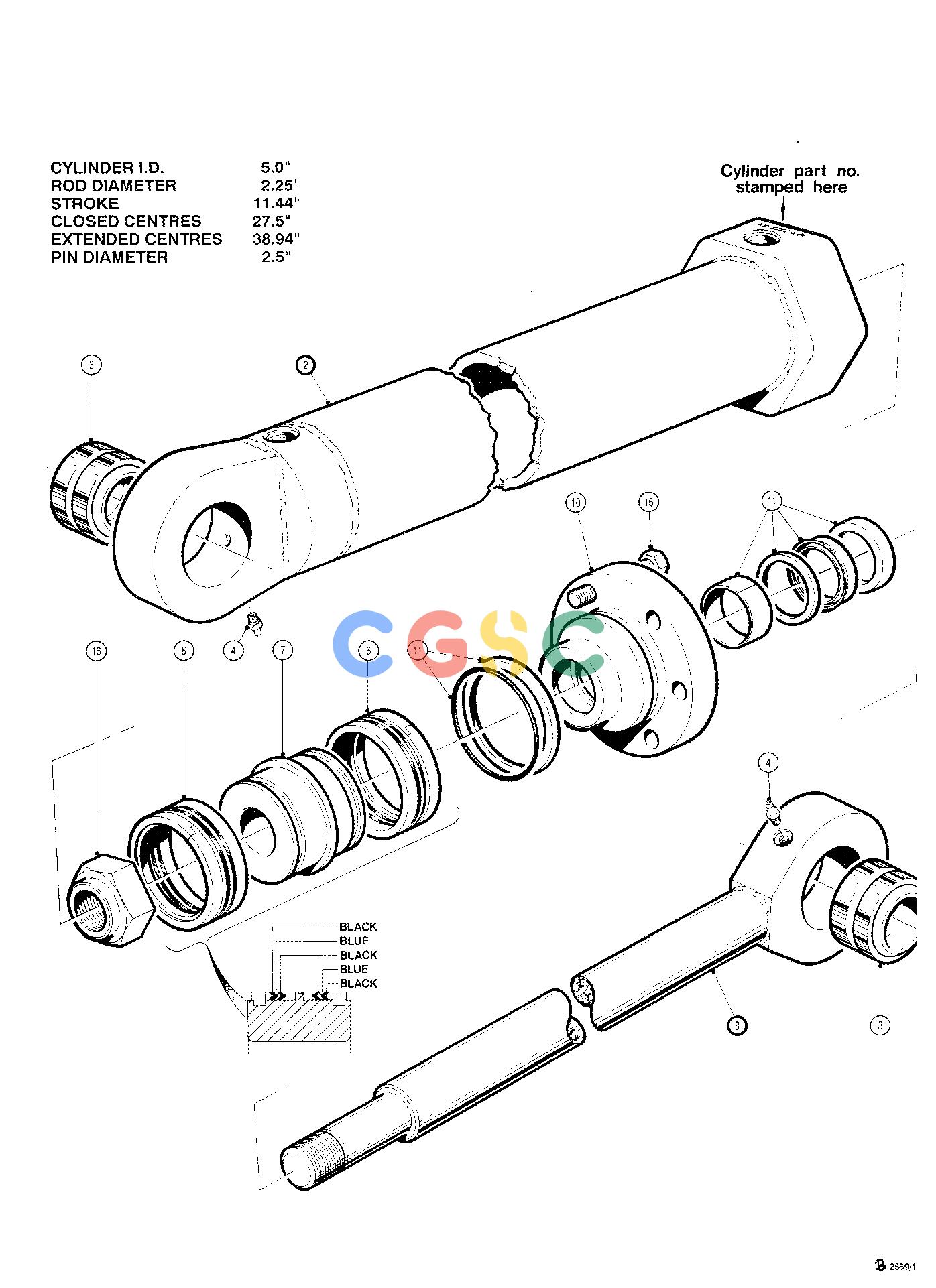

约翰迪尔零件查询20``STD - ATTACHMENTS CYLINDER WRIST 20`` HEAD ( 62001 - 63056) 2879-011/10 [2879-011/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
700409700
|
[1] |
Cylinder
|
|
| 2. |
700700000
|
[1] |
Housing
|
|
| 3. |
F121023
|
[1] |
Bearing
|
|
| 4. |
810000100
|
[1] |
GREASE FITTING.N610
|
|
| 6. |
811445600
|
[2] |
Seal Kit
|
|
| 7. |
700699500
|
[1] |
Piston
|
|
| 8. |
700426900
|
[1] |
ROD - INCL. ITEMS 3,4
|
|
| 10. |
700520800
|
[1] |
GLAND
|
|
| 11. |
700606900
|
[1] |
Seal Kit
|
|
| 15. |
810584100
|
[6] |
BOLT .8750-14X3.50
|
|
| 16. |
810426300
|
[1] |
LOCKNUT 1 1/2-12UNF
|
|
| |
700402800
|
[1] |
SEAL KIT - INCL. ITEMS 6,11
|
|
