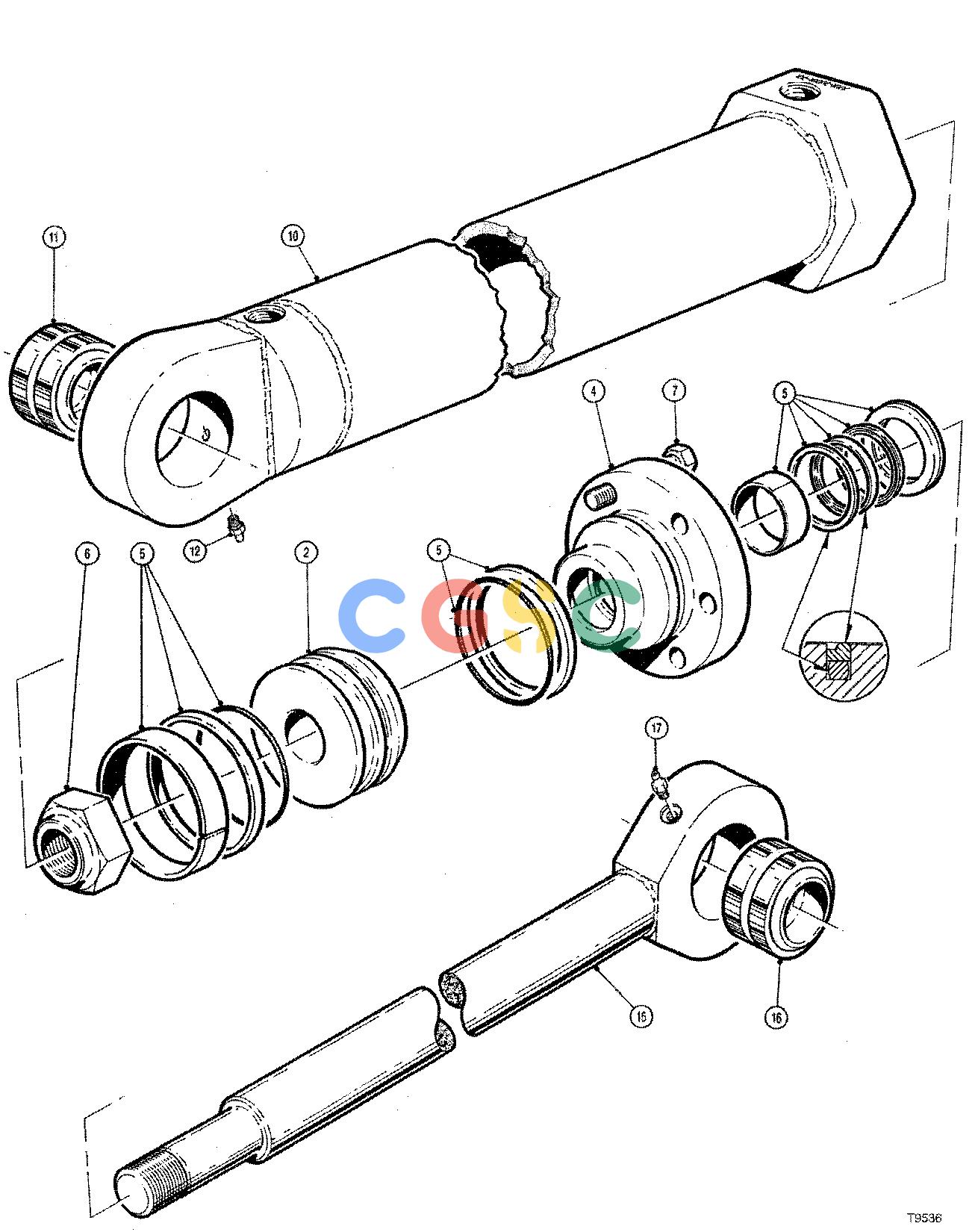

约翰迪尔零件查询20``STD - ATTACHMENTS CYLINDER WRIST 20`` HEAD ( 63057 - ) 2879-016/10 [2879-016/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
193 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
701202900
|
[1] |
CYLINDER -
|
|
| 2. |
701203000
|
[1] |
PISTON -
|
|
| 4. |
701206300
|
[1] |
GLAND -
|
|
| 5. |
701202700
|
[1] |
SEAL KIT -
|
|
| 6. |
810919300
|
[1] |
LOCKNUT 2-12UNF -
|
|
| 7. |
810584100
|
[6] |
BOLT .8750-14X3.50 -
|
|
| 10. |
700700000
|
[1] |
HOUSING -
|
|
| 11. |
F121023
|
[1] |
BEARING -
|
|
| 12. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
| 15. |
701210800
|
[1] |
ROD -
|
|
| 16. |
F121023
|
[1] |
BEARING -
|
|
| 17. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
