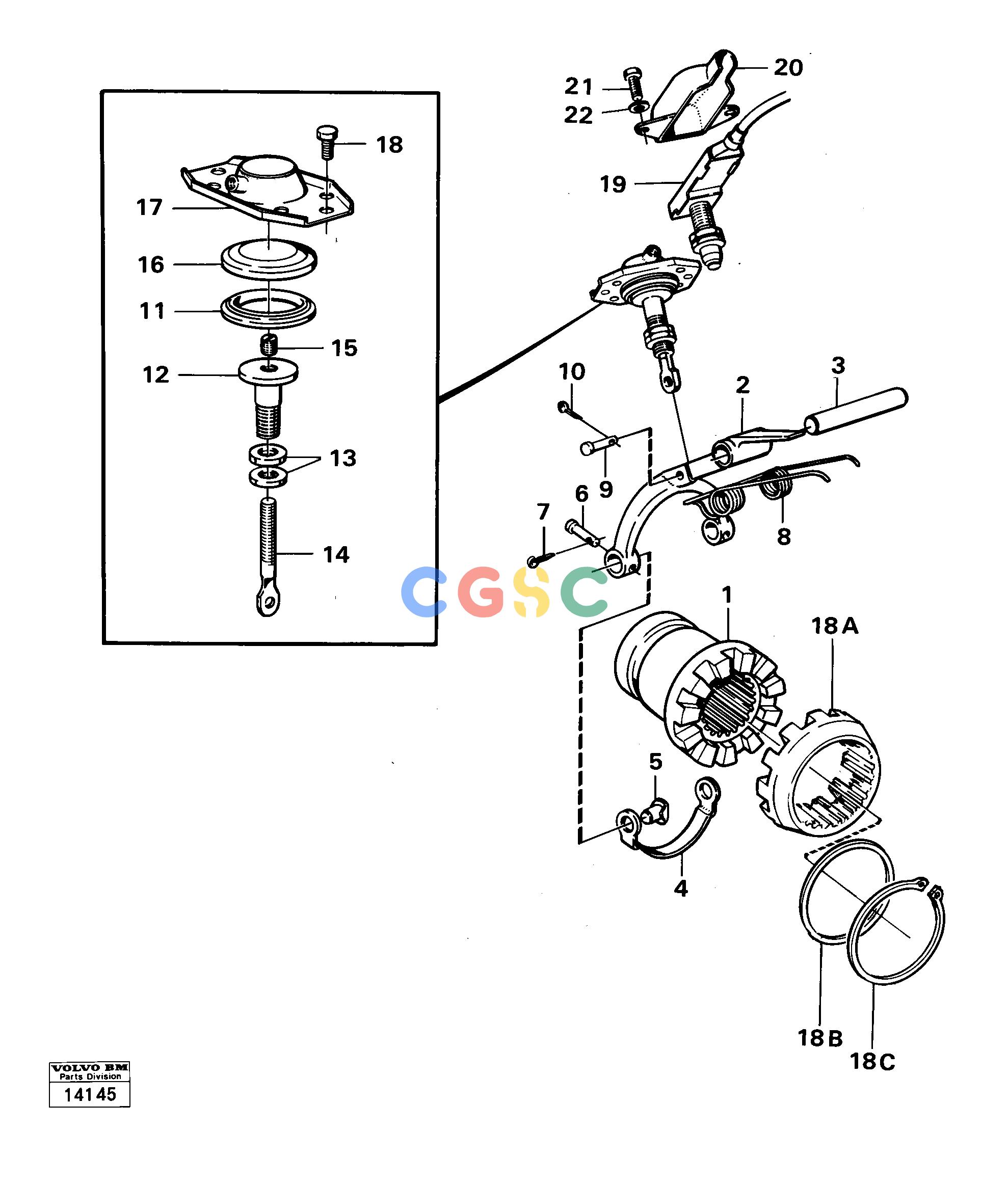

沃尔沃零件查询4300 Differential lock prod nr 235074300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
197 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE1523080
|
[1] |
Selector fork
|
|
| 3. |
VOE384135
|
[1] |
Selector rail
|
|
| 4. |
VOE1523084
|
[1] |
Lock brace
|
|
| 5. |
VOE1523087
|
[2] |
Pin
|
|
| 6. |
VOE952694
|
[2] |
Clevis pin
|
|
| |
|
[0001] |
Differential lock
|
|
| 7. |
VOE907816
|
[2] |
Split pin
|
|
| 8. |
VOE7383960
|
[1] |
Return spring
|
|
| 9. |
VOE913125
|
[1] |
Clevis pin
|
|
| 10. |
VOE907822
|
[1] |
Split pin
|
|
| 11. |
VOE1523085
|
[1] |
Seat
|
|
| 12. |
VOE383971
|
[1] |
Diaphragm sleeve
|
|
| 13. |
VOE957018
|
[2] |
Hexagon nut
|
|
| 14. |
VOE7383970
|
[1] |
Selector rail
|
AX -1057
|
| |
VOE1522096
|
[0001] |
Link
|
AX 1058-
|
| 15. |
VOE4869287
|
[0001] |
Screw
|
|
| 1. |
VOE7383633
|
[0001] |
Companion flange
|
AX -1057
|
| 16. |
VOE383972
|
[0001] |
Diaphragm
|
|
| 17. |
VOE11034637
|
[0001] |
Cover
|
|
| 18. |
VOE955269
|
[0006] |
Hexagon screw
|
|
| 18A. |
VOE1522134
|
[0001] |
Companion flange
|
AX 1058-
|
| 18B. |
VOE1522102
|
[0001] |
Washer
|
AX 1058-
|
| 18C. |
VOE945506
|
[0001] |
Snap ring
|
AX 1058-
|
| 19. |
VOE4880200
|
[0001] |
Switch
|
|
| 20. |
VOE17209371
|
[0001] |
Protecting casing
|
|
| 21. |
VOE13955294
|
[0002] |
Screw
|
|
| 22. |
VOE13941907
|
[0002] |
Washer
|
|
| |
VOE17413387
|
[0001] |
Companion flange
|
AX 1058-
|
| 2. |
VOE7383989
|
[1] |
Selector fork
|
AX -1057
|
