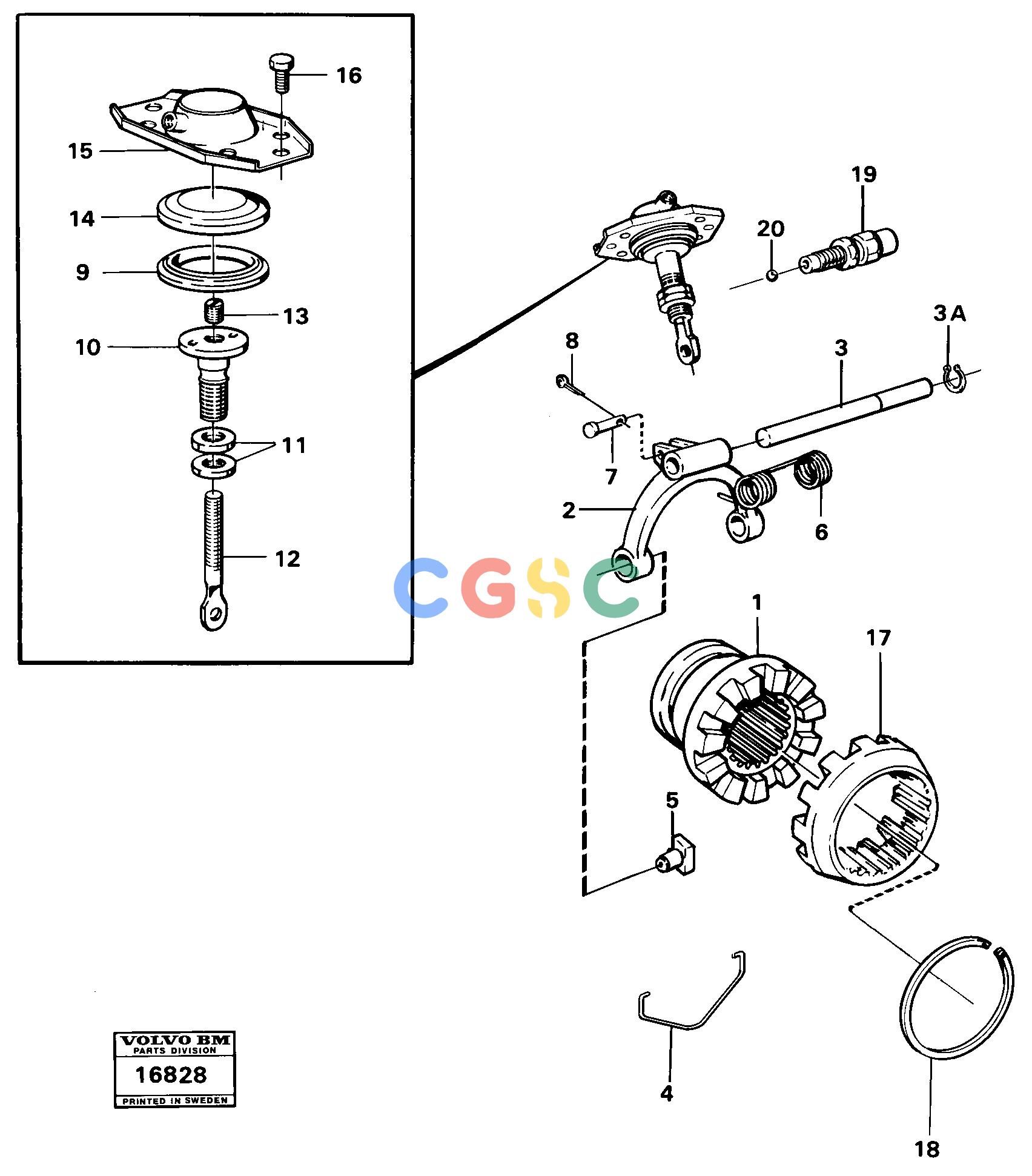

沃尔沃零件查询4300 Differential lock prod no 235144300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4717302
|
[2] |
Pin
|
|
| 6. |
VOE4717412
|
[1] |
Return spring
|
|
| 7. |
VOE13964846
|
[1] |
Clevis pin
|
|
| 8. |
VOE907822
|
[1] |
Split pin
|
|
| 9. |
VOE1523085
|
[1] |
Seat
|
|
| 1. |
VOE4717236
|
[0001] |
Companion flange
|
|
| 10. |
VOE4717410
|
[1] |
Piston
|
|
| 11. |
VOE13963935
|
[2] |
Nut
|
|
| 12. |
VOE4717409
|
[1] |
Link
|
|
| 13. |
VOE4869287
|
[1] |
Screw
|
|
| 14. |
VOE383972
|
[1] |
Diaphragm
|
|
| 15. |
VOE11034637
|
[0001] |
Cover
|
|
| 16. |
VOE955269
|
[0005] |
Hexagon screw
|
|
| 17. |
VOE4717235
|
[0001] |
Companion flange
|
|
| 18. |
VOE4717431
|
[0001] |
Snap ring
|
|
| 19. |
VOE4880200
|
[0001] |
Switch
|
|
| 2. |
VOE4717413
|
[1] |
Selector fork
|
|
| 20. |
VOE183801
|
[0001] |
Ball
|
|
| 3. |
VOE4717411
|
[1] |
Shaft
|
|
| 3A. |
VOE914448
|
[1] |
Snap ring
|
|
| 4. |
VOE4717303
|
[1] |
Brace
|
|
