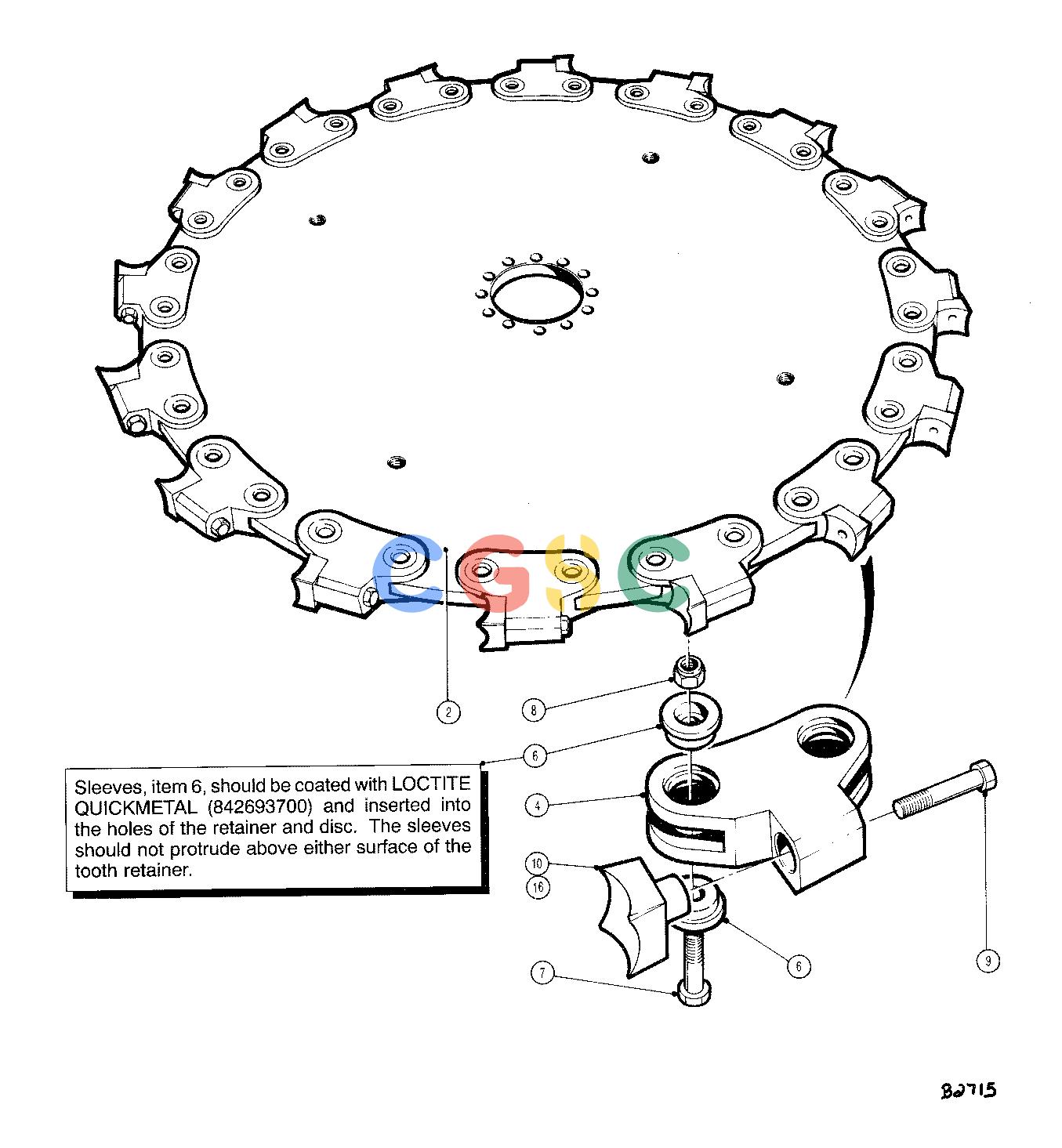

约翰迪尔零件查询20``STD - ATTACHMENTS DISC BLADE 20`` HEAD ROTATABLE TOOTH ( 62001 - 64149) 4544-023/10 [4544-023/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
700266000
|
[1] |
BLADE HARDENED
|
|
| 2. |
700547500
|
[1] |
DISC
|
|
| 4. |
700282700
|
[16] |
Holder
|
|
| 6. |
700282600
|
[64] |
Retainer
|
|
| 7. |
810410700
|
[32] |
BOLT 1/2-20UNFX1-1/2
|
|
| 8. |
810511700
|
[32] |
LOCKNUT 1/2-20UNF
|
|
| 9. |
810079900
|
[16] |
BOLT 1/2-20UNF 3
|
|
| 10. |
700309000
|
[16] |
Tooth
|
|
| |
700329600
|
[1] |
BLADE WEAR RESISTANT - INCL. ITEMS 2-9
|
|
| 16. |
700322900
|
[16] |
Tooth
|
|
| 20. |
|
[1] |
KIT, TOOTH, HARDENED INCL. ITEMS 4-10
|
|
| 21. |
|
[1] |
KIT,TOOTH,WEAR RESISTANT,INCL.4-9 & 16
|
|
| |
|
|
NOTE: INITIAL INSTALLATION OF THIS
|
|
| |
|
|
BLADE REQUIRES SOME REWORK TO
|
|
| |
|
|
THE SAW HOUSING. FOR DETAILS
|
|
| |
|
|
ORDER REWORK DRAWING NO. 8991614
|
|
