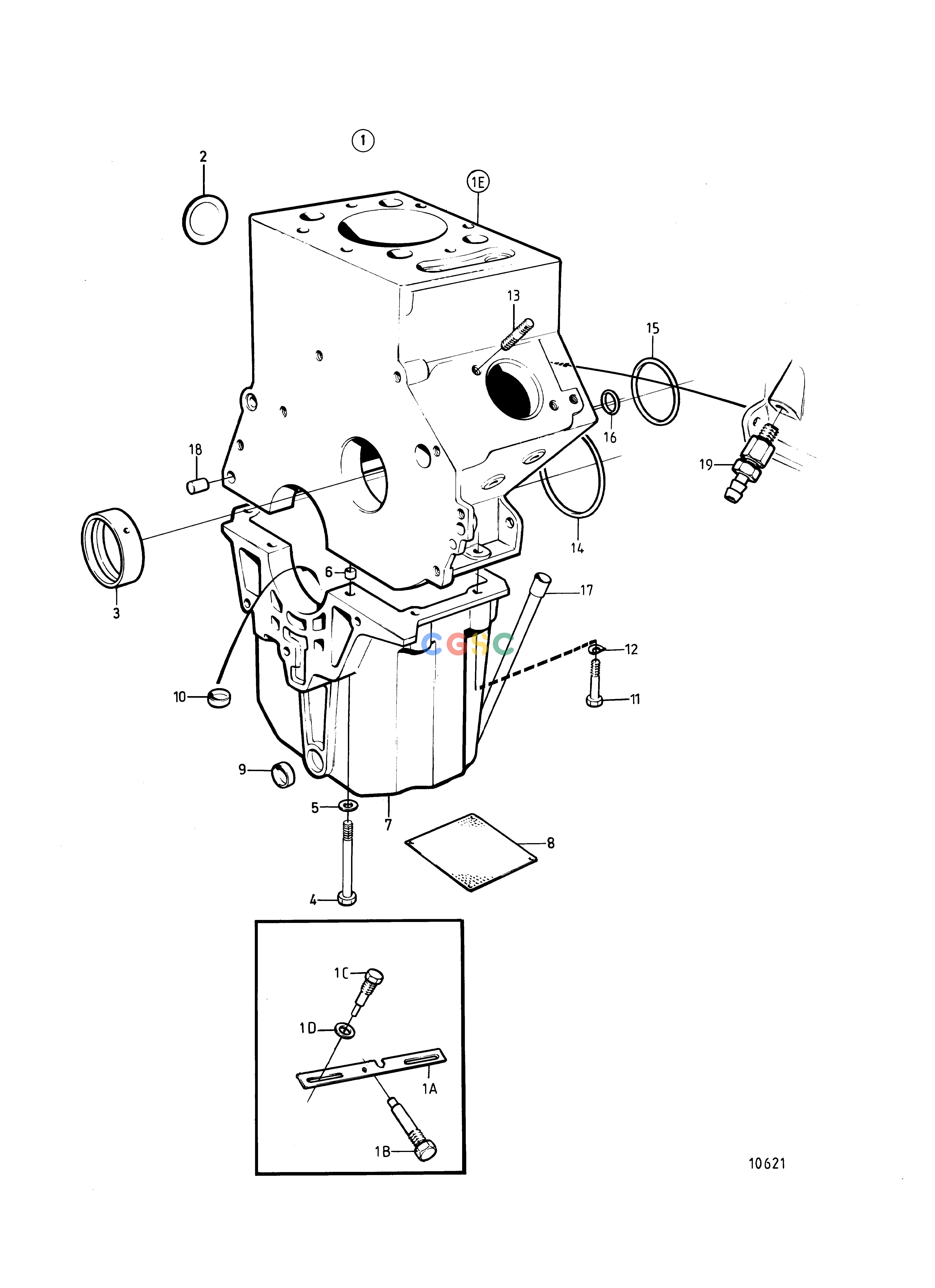

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858784
|
[1] |
Cylinder block
|
Repl by 1 PC cyl. block 861244 (860231),1 PC o-ring 978961 for sealing of fuel injection pump + spac
|
| 1A. |
840475
|
[1] |
Control rod
|
|
| 1B. |
840312
|
[2] |
Screw
|
|
| 1C. |
840489
|
[2] |
Guide screw
|
|
| 1D. |
947620
|
[2] |
Gasket
|
|
| 1E. |
840494
|
[1] |
Cylinder block
|
Repl by 858784
|
| 2. |
477024
|
[1] |
Expansion plug
|
(192211)
|
| 3. |
463360
|
[2] |
Bushing
|
|
| 4. |
963257
|
[4] |
Hexagon screw
|
L=120mm
|
| 5. |
840210
|
[4] |
Washer
|
|
| 6. |
3875305
|
[2] |
Guide sleeve
|
|
| 7. |
|
|
|
|
| 8. |
840568
|
[1] |
Strainer
|
|
| 9. |
840713
|
[1] |
Expansion plug
|
|
| 10. |
946778
|
[1] |
Cap plug
|
|
| 11. |
955300
|
[4] |
Hexagon screw
|
L=50mm
|
| 12. |
941907
|
[4] |
Spring washer
|
|
| 13. |
924061
|
[2] |
Stud
|
|
| 14. |
967592
|
[1] |
O-ring
|
|
| 15. |
967590
|
[1] |
O-ring
|
|
| 16. |
943177
|
[1] |
O-ring
|
|
| 17. |
840695
|
[1] |
Tube
|
|
| 18. |
950586
|
[4] |
Pin
|
|
| 19. |
947893
|
[1] |
Shut-off cock
|
|
