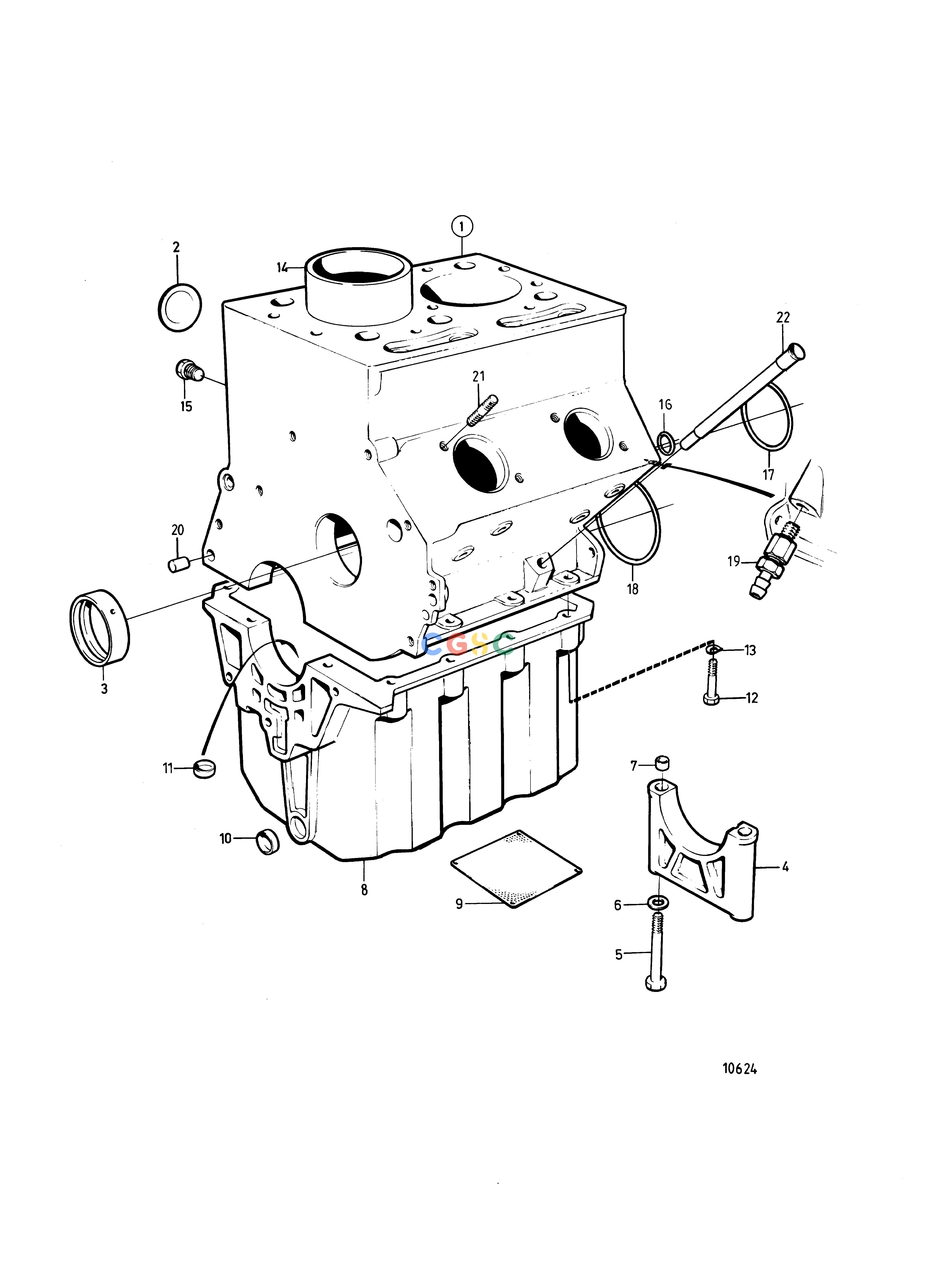

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineCylinder Block with Cylinder Liners Medium DutyEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
410 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840977
|
[1] |
Cylinder block
|
Replaced by 1 PC cylinder block 860234,2 PCS o-rings 978961 for sealing of fuel injection pumps + sp
|
| 2. |
477024
|
[2] |
Expansion plug
|
(192211)
|
| 3. |
463360
|
[3] |
Bushing
|
|
| 4. |
|
|
|
|
| 5. |
963257
|
[6] |
Hexagon screw
|
|
| 6. |
840210
|
[6] |
Washer
|
|
| 7. |
3875305
|
[4] |
Guide sleeve
|
|
| 8. |
|
|
|
|
| 9. |
840588
|
[1] |
Strainer
|
|
| 10. |
840713
|
[1] |
Expansion plug
|
|
| 11. |
946778
|
[1] |
Cap plug
|
|
| 12. |
955300
|
[8] |
Hexagon screw
|
|
| 13. |
941907
|
[8] |
Spring washer
|
|
| 14. |
840889
|
[2] |
Cylinder liner
|
|
| 15. |
861551
|
[1] |
Plug
|
|
| 16. |
943177
|
[1] |
O-ring
|
|
| 17. |
967590
|
[1] |
O-ring
|
|
| 18. |
967592
|
[1] |
O-ring
|
|
| 19. |
947893
|
[1] |
Shut-off cock
|
|
| 20. |
950586
|
[4] |
Pin
|
|
| 21. |
924061
|
[4] |
Stud
|
|
| 22. |
840846
|
[1] |
Tube
|
|
