神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-054) - STARTER (HITACHI) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1016 次

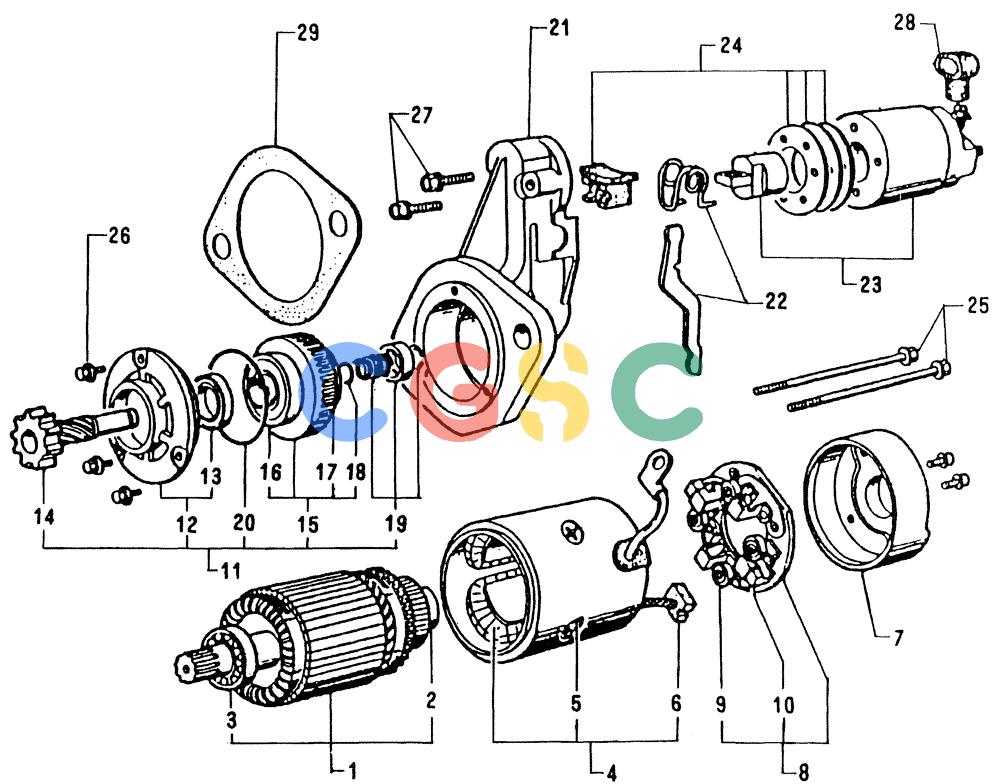

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8943773510 | [1] | STARTER ASH. ,24V-3.5KW | |
| 1. | VI8941529670 | [1] | ARMATURE | KOBASM. Superseded by part number: VI8943654770 |
| 2. | VI8942284360 | [1] | BEARING | KOBBALL |
| 3. | VI8941529680 | [1] | BEARING | KOBBALL |
| 4. | VI8941529690 | [1] | COIL | KOBCOIL ASM,FIELD |
| 5. | VI8942284390 | [4] | SCREW,SET,POLE CORE | |
| 6. | VI8941529700 | [2] | BRUSH | KOB(+) |
| 7. | VI8944383660 | [1] | COVER ASM,REAR | |
| 8. | VI8941529710 | [1] | HOLDER, INJECTOR NOZ | KOBHOLDER ASM,BRUSH |
| 9. | VI8941529720 | [4] | SPRING,BRUSH | |
| 10. | VI8941529730 | [2] | BRUSH HOLDER | KOBBRUSH, (-) Superseded by part number: VI8941529700 |
| 11. | VI8970262430 | [1] | CLUTCH ASM,PINION | |
| 12. | VI8970262480 | [1] | RETAINER,BEARING | |
| 13. | VI8970262490 | [1] | SEAL, OIL | |
| 14. | VI8970262440 | [1] | SHAFT,PINION | |
| 15. | VI8970262450 | [1] | CLUTCH ASM. | |
| 16. | VI8970262460 | [1] | BEARING,BALL | |
| 17. | VI8942284680 | [2] | BEARING | KOBBALL Superseded by part number: VI8970256730 |
| 18. | VI8970263010 | [1] | O-RING | |
| 19. | VI8941529780 | [1] | STOPPER SET STOPPER SET | STOPPER SET STOPPER SET |
| 20. | VI8970262500 | [1] | O-RING | |
| 21. | VI8970376890 | [1] | CASE,GEAR | |
| 22. | VI8941529800 | [1] | LEVER SET,SHAFT | |
| 23. | VI8970262470 | [1] | SWITCH ASM,MAGNETIC | |
| 24. | VI8941529820 | [1] | COVER SET,DUST | |
| 25. | VI8942420710 | [2] | BOLT,THROUGH | |
| 26. | VI9019106160 | [3] | B0LT,M6X16 | |
| 27. | VI9019106370 | [2] | B0LT,M6X37 | |
| 28. | VI5811290690 | [1] | COVER,TERMINAL MAGNETIC | |
| 29. | VI8970262510 | [1] | PACKING | |
