神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-055) - STARTER (HITACHI) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
650 次

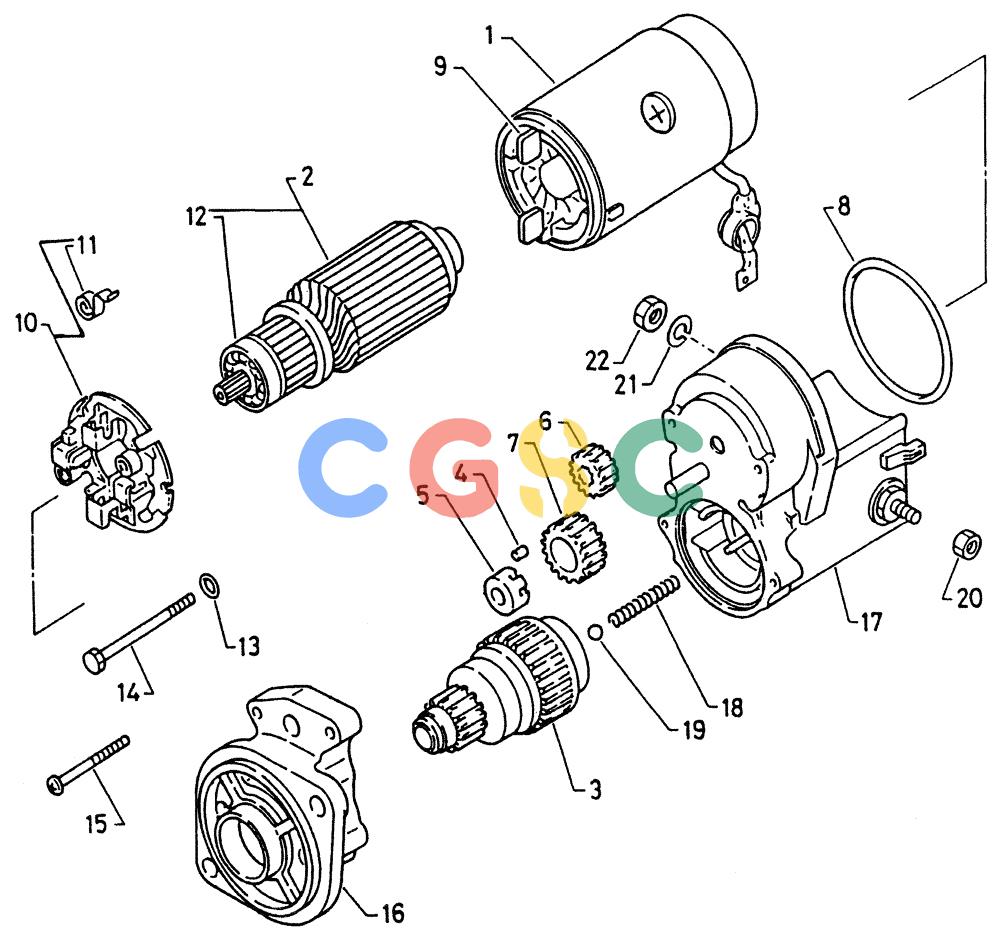

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8941337583 | [1] | STARTER ASM ,12V-2.2KW | |
| 1. | VI8941674250 | [1] | YOKE ASM,STARTER | |
| 2. | VI8941674260 | [1] | ARMATURE ASM,STARTER | |
| 3. | VI5811240030 | [1] | CLUTCH SUB ASM,STARTER | |
| 4. | VI5811290990 | [5] | ROLLER,CLUTCH | |
| 5. | VI5811291000 | [1] | RETAINER | |
| 6. | VI5811230100 | [1] | PINION,STARTER | |
| 7. | VI8941674270 | [1] | PINION,STARTER | |
| 8. | VI8941674280 | [1] | O-RiNG | |
| 9. | VI8941674290 | [2] | BRUSH,STARTER | |
| 10. | VI8941674300 | [1] | HOLDER ASM,BRUSH | |
| 11. | VI5811170150 | [4] | SPRING,BRUSH | |
| 12. | VI8941674310 | [1] | BEARING,BALL | |
| 13. | VI5811292110 | [2] | O-RING | |
| 14. | VI8941674330 | [2] | BOLT,THROUGH | |
| 15. | VI8941674340 | [2] | SCREW | |
| 16. | VI8941674350 | [1] | HOUSING,STARTER | |
| 17. | VI8944500460 | [1] | SWITCH ASM. MAGNETIC | |
| 18. | VI5811290960 | [1] | SPR1NG,CO1L,COMPRESSION | |
| 19. | VI5811290920 | [1] | BALL,STEEL | |
| 20. | VI5094000420 | [1] | NUT | |
| 21. | VI9091505080 | [1] | WASHER | KOBWASHER, SPRING Superseded by part number: VI0915105080 |
| 22. | VI9091105080 | [1] | HANGER | KOBNUT Superseded by part number: VI0911105080 |
