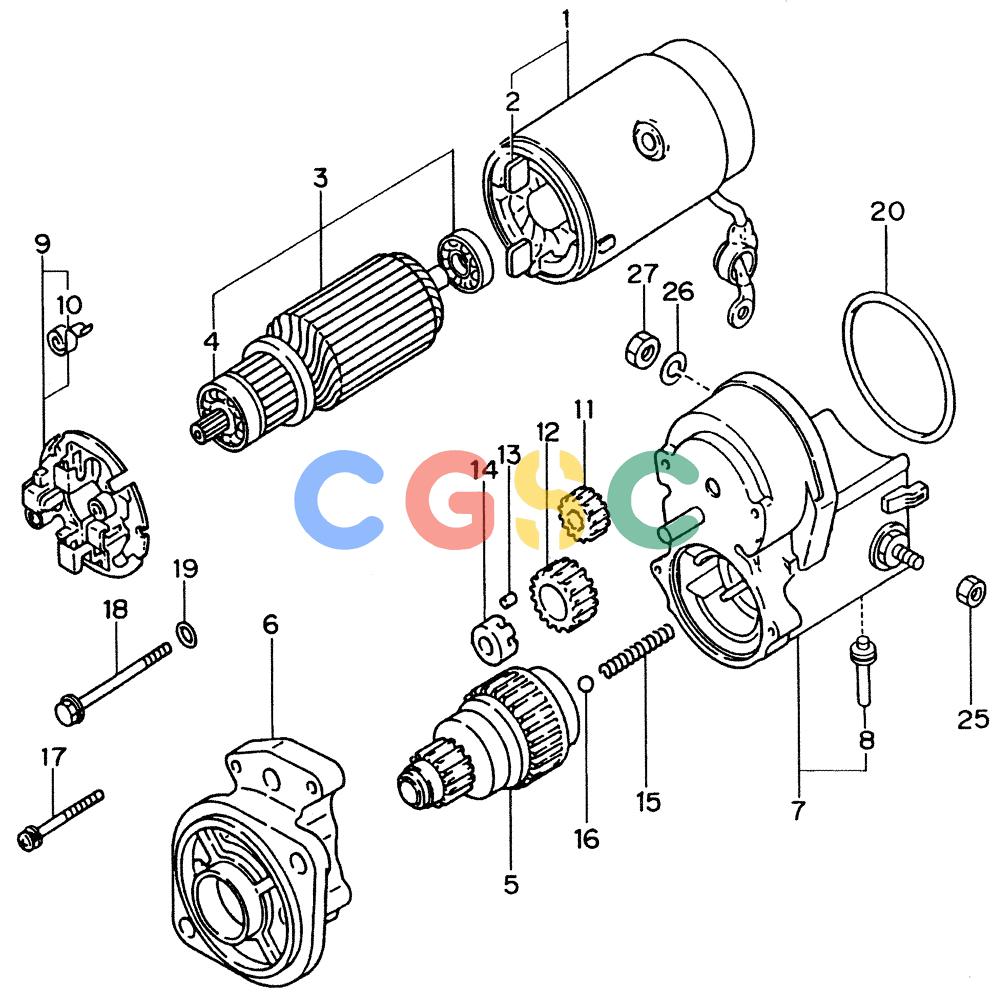

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-056) - STARTER (DENSO) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
831 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8970429970 | [1] | STARTER ASM ,12V-2.2KW | |
| 1. | VI8941674250 | [1] | YOKE ASM,STARTER | |
| 2. | VI8970831940 | [1] | BRUSH SET,(+)&(-) | |
| 3. | VI8970831930 | [1] | ARMATURE ASM,STARTER | |
| 4. | VI8970831950 | [1] | BEARING,ARMATURE | |
| 5. | VI5811240030 | [1] | CLUTCH SUB ASM,STARTER | |
| 6. | VI8941674350 | [1] | CASE,PINION,STARTER | |
| 7. | VI8970831960 | [1] | SWITCH ASM. MAGNETIC | |
| 8. | VI1811296770 | [2] | PIPE,DRAIH,STARTER | |
| 9. | VI8941674300 | [1] | HOLDER ASM,BRUSH | |
| 10. | VI5811170150 | [4] | spring,brush | |
| 11. | VI5811230100 | [1] | PINION,STARTER | |
| 12. | VI8941674270 | [1] | PINION,STARTER | |
| 13. | VI5811290990 | [5] | ROLLER,PINION,STARTER | |
| 14. | VI5811291000 | [1] | RETAINER,STARTER | |
| 15. | VI5811290960 | [1] | spring,coil,comp. | |
| 16. | VI5811290920 | [1] | BALL,PINION,STARTER | |
| 17. | VI8941674340 | [2] | BOLT,THROUGH,STARTER | |
| 18. | VI8941674330 | [2] | BOLT,THROUGH,STARTER | |
| 19. | VI5811292110 | [2] | PACKING,THROUGH BOLT | |
| 20. | VI8941674280 | [1] | o-ring,yoke,starter | |
| 25. | VI5094000420 | [1] | NUT,TERMINAL | |
| 26. | VI9091505080 | [1] | WASHER | KOBWASHER,SPR. Superseded by part number: VI0915105080 |
| 27. | VI9091105080 | [1] | HANGER | KOBNUT,STARTER Superseded by part number: VI0911105080 |
