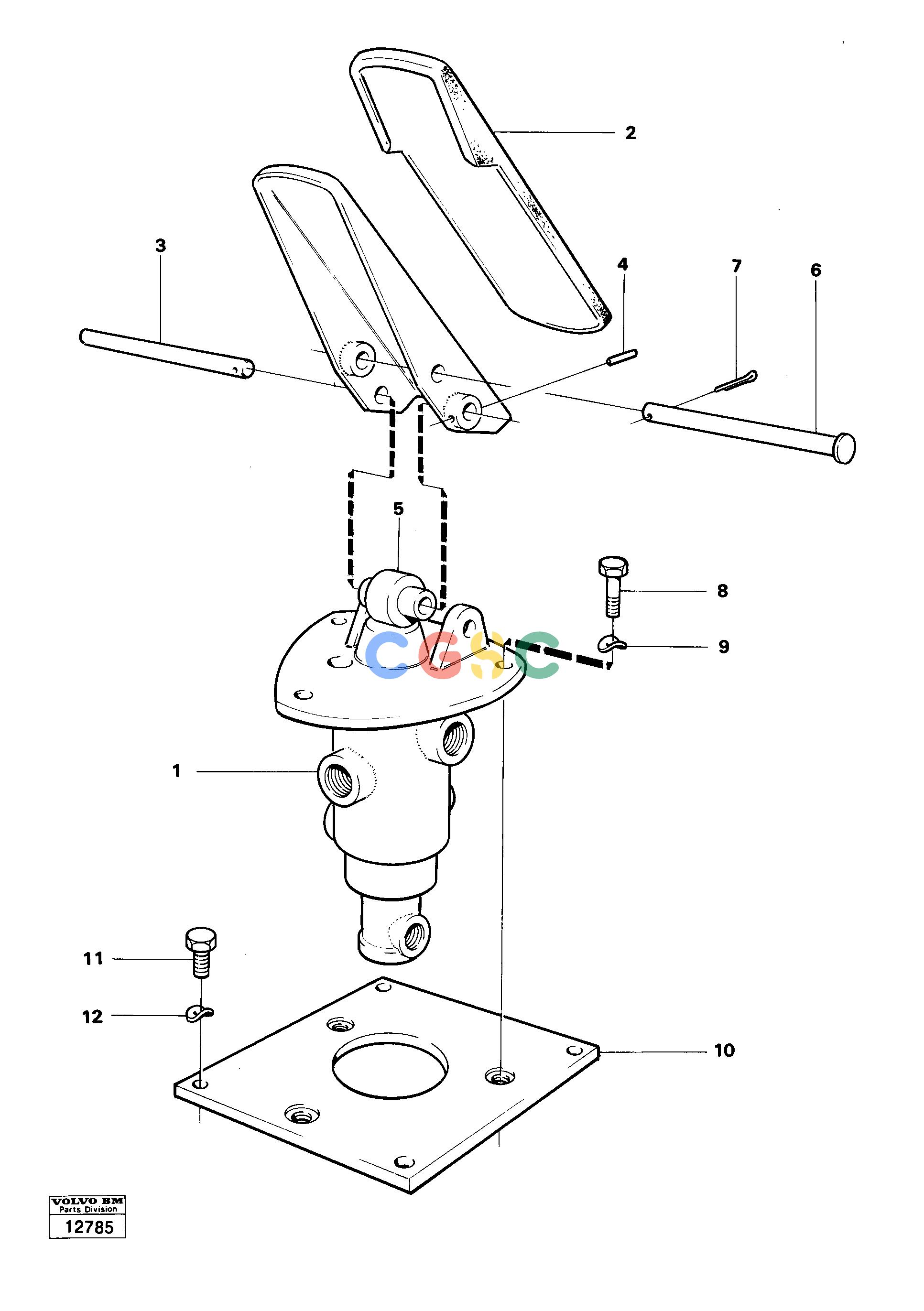

沃尔沃零件查询4300 Footbrake valve with mountings4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
574 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE7341585
|
[0001] |
Pin
|
|
| 5. |
VOE7341582
|
[0001] |
Roller
|
|
| 6. |
VOE7341583
|
[0001] |
Bolt
|
|
| 7. |
VOE907834
|
[0001] |
Split pin
|
|
| 8. |
VOE955297
|
[0003] |
Hexagon screw
|
|
| 1. |
VOE11000246
|
[0001] |
Valve
|
|
| 9. |
VOE13941907
|
[0003] |
Washer
|
|
| 10. |
VOE4851618
|
[0001] |
Plate
|
|
| 11. |
VOE13955295
|
[0004] |
Screw
|
|
| 12. |
VOE13941907
|
[0004] |
Washer
|
|
| |
VOE784537
|
[0001] |
Brake pedal
|
|
| 2. |
VOE7341581
|
[0001] |
Pedal Rubber
|
|
| 3. |
VOE7341584
|
[0001] |
Shaft
|
|
